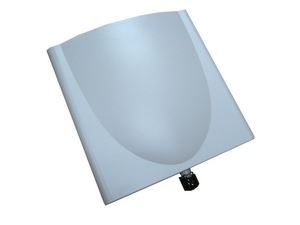

AN-5P18

5 GHz, 18 dBi Panel Antenna
Manufacturer: Altai
Call for pricing
Electrical Specifications
? Frequency Range 4.900 – 5.875 GHz
? Gain 17 – 18 dBi
? Polarization Linear, Vertical
? Horizontal Beamwidth 18° (-3dB)
? Vertical Beamwidth 18º (-3dB)
? VSWR 2 (Max.)
? Front-to-back Ratio -25 dB (Max.)
? Impedance 50 O
? Power Handling 5 W (cw)
? Temperature -40 °C to +80 °C
? Humidity 95% at 55 ºC
? Wind Loading Up to 216 km/h (134 mph)
? Radome Color Gray-white
? Radome Material ABS, UV Resistant
? Weight 825 g
? Dimensions 215 x 200 x
