BE750G-JP | APC

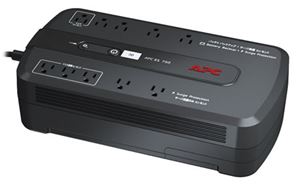

APC ES 750VA Power-Saving Battery Backup, 100V
Manufacturer: APC
Call for pricing
Overview
Model NameAPC ES 750VA Power-Saving Battery Backup, 100V
IncludesCD with software,Telephone Cable,USB cable,User Guide in Japanese
Standard Lead TimeUsually in Stock
Product DistributionJapan
Output
Output Power Capacity450 Watts / 750 VA
Max Configurable Power (Watts)450 Watts / 750 VA
Nominal Output Voltage100V
Waveform TypeStepped approximation to a sinewave
Output Connections(5) NEMA 5-15R (Battery Backup),(5) NEMA 5-15R (Surge Protection)
Input
Nominal Input Voltage100V
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
Input ConnectionsNEMA 5-15P
Cord Length1.52 meters
Maximum Input Current12
Input Breaker Capacity15
Batteries & Runtime
Battery TypeMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules1
Typical recharge time16
Replacement BatteryRBC17J
RBC™ Quantity1
Communications & Management
Interface Port(s)Optional Simple Signalling RS232 cable,USB
Control panelLED status display with On Line : On Battery : Replace Battery and Building Wiring Fault
Audible AlarmAlarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rating800
Data Line ProtectionAnalog phone line for phone/fax/modem/DSL (RJ-11 connector)
Physical
Maximum Height88 mm
Maximum Width180 mm
Maximum Depth343 mm
Net Weight4.7 kg
Shipping Weight5.7 kg
Shipping Height135 mm
Shipping Width242 mm
Shipping Depth472 mm
Master Carton Units2.0
Master Carton Weight12.4 kg
ColorBlack
Units per Pallet80.0
Environmental
Operating Environment0 - 40 °C
Operating Relative Humidity0 - 95
Operating Elevation0-999.9 meters
Storage Temperature-15 - 40 °C
Storage Relative Humidity0 - 95
Storage Elevation0-15000 meters
Audible noise at 1 meter from surface of unit45.000
Conformance
Regulatory ApprovalsTUV,VCCI Class B
Standard Warranty2 years (Japan only)
Equipment protection policy--
Sustainable Offer Status
RoHSCompliant
REACHREACH: Contains No SVHCs

APC Back-UPS Series SpecsAPC Back-UPS Series Specs(PDF)
