cAP ac | Routerboard | Mikrotik

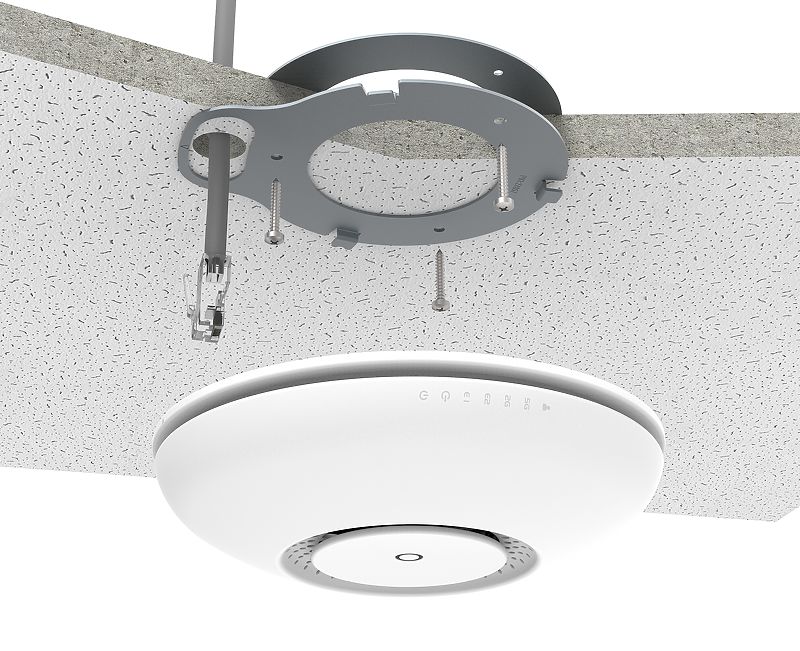

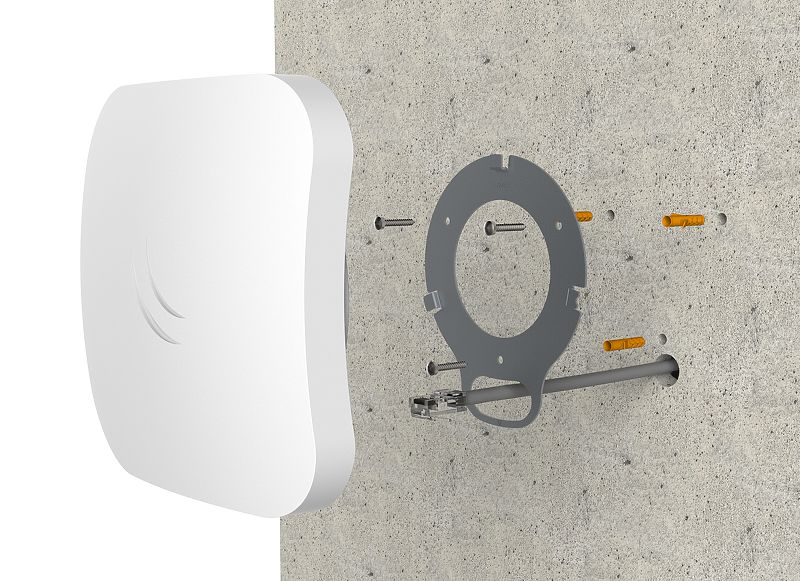

Dual-band 2.4 / 5GHz wireless access point for mounting on a ceiling or wall with two Gigabit Ethernet ports (one with PoE output) and 802.11ac support
Manufacturer: MIKROTIK
Call for pricing

Specifications

Details
Product codeRBcAPGi-5acD2nD
ArchitectureARM 32bit
CPUIPQ-4018
CPU core count4
CPU nominal frequency716 MHz
DimensionsRound case: ? 136 mm, height: 30 mm; Square case: 145 mm x 145 mm x 30 mm
License level4
Operating SystemRouterOS
Size of RAM128 MB
Storage size16 MB
Storage typeFLASH
Tested ambient temperature-40 to 50° C

Powering

Details
Max Power consumption13W
PoE in802.3af/at
PoE outPassive PoE up to 57V
PoE in input Voltage17-57 V
Number of DC inputs1 (PoE-IN)

Wireless

Details
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz2
Wireless 2.4 GHz chip modelIPQ-4018
Wireless 5 GHz number of chains2
Wireless 5 GHz standards802.11a/n/ac
Antenna gain dBi for 5 GHz2.5
Wireless 5 GHz chip modelIPQ-4018

Ethernet

Details
10/100/1000 Ethernet ports2

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s26-100
11MBit/s26-94
6MBit/s26-96
54MBit/s23-78
MCS026-96
MCS722-73
5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s26-96
54MBit/s21-80
MCS026-96
MCS720-75
MCS918-70


Quick GuideOpen
BrochureOpen
RouterOS current releaseDownload
User manualOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)
Declaration of conformity (FCC 2.4GHz)Open
Declaration of conformity (FCC 5GHz)Open
