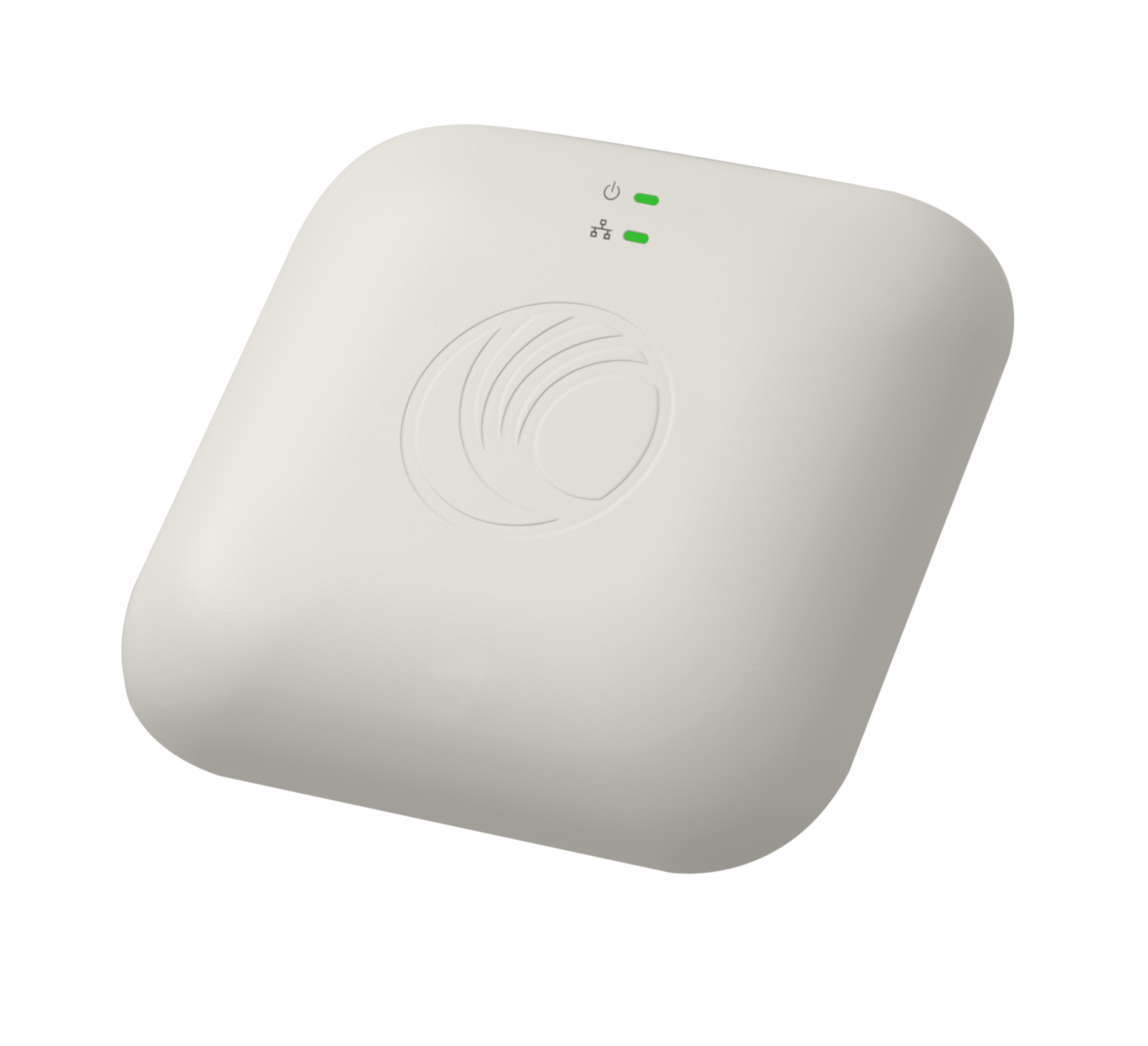

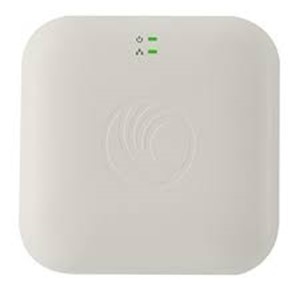

cnPilot e400 | cnPilot | Cambium

The plenum-rated cnPilot e400 with 256-user capacity and up to 16 SSIDs ensures network adaptability to the dynamics of growing demand.
Manufacturer: Cambium Networks
Call for pricing
Standards
IEEE 802.11a/b/g/n/ac. Others: 802.11 h/d/r/u/w/ Wi-Fi alliance certified
Antenna
2x2 MIMO streams
Range
180 m (650 Ft)
Concurrent Clients
256
Max Data Rates
+1.167 Gpbs
SSID
16 SSIDs across 2 radios
Standards
4.55 dBi (2.4 GHz)/4.25 dBi (5 GHz)
Polarization
5 GHz dual Polarized antenna
Antenna Coverage
Omni (360°)
Ethernet Ports
One (1) x 1 Gigabit Ethernet (10/100/1000 Mbps)
Frequency bands
2.4 GHz: 2400-2484 MHz 5 GHz: 5150-5850 MHz with DFS band support
Power Supply
Standard 802.3af injector (supplied) or any PoE switch
Dimensions (CM)
18 cm x 18 cm x 3 cm
Weight
350g
WIFI FEATURES
Controller modes
• Autonomous Controller-less operations (E.g.: roaming) • Cloud Managed • On-premise virtualized controller
Secure WLAN
WPA-TKIP, WPA2 AES, 802.1x 802.11w (Protected Management Frames)
Hotspot 2.0/Passpoint
Yes
Captive Portal
l • cnMaestro Controller • Stand-alone AP based • Redirection to external RADIUS • Server DNS logging
Scheduled SSID
Turn SSID ON/OFF on a daily/weekly/time of day basis
Guest Access
Yes. With Active Directory Integration
Meshing
Multi-hop meshing supported (3)
Firewall
Yes. NAT logging
