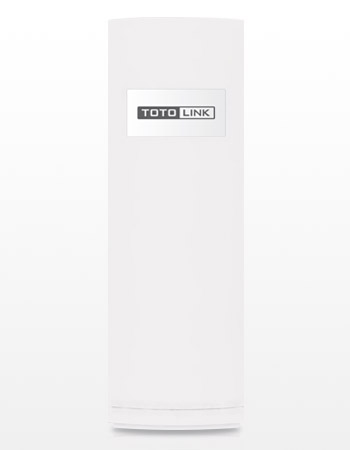

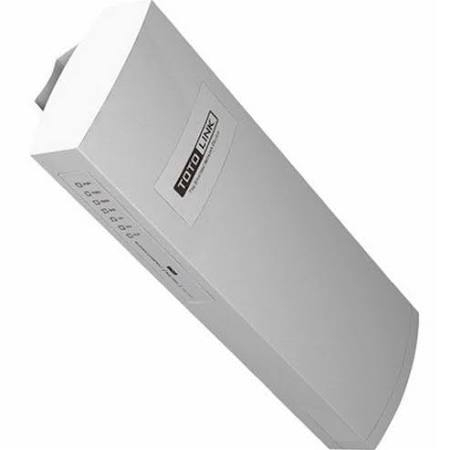

CP300 | Router | Totolink

300Mbps 2.4GHz Wireless N AP/Client, Passive POE,Supports PPPoE, DHCP, Static IP, PPTP and L2TP broadband functions.
Manufacturer: TOTOLINK
Call for pricing

CP300 is WISP CPE Solution that specially designed for long distance wireless transmission. With two internal high gain antennas and advanced radio architecture, it can make the radio signal transmission coverage more extensive with a stable wireless connection and deliver up to 300Mbps data rate. Powered by Passive PoE, CP300 simplifies the network cable deployment and is suitable for all kinds of environment with the waterproof design.





Long Distance Transmission
With two internal high performance antennas, CP300 can deliver up to 300Mbps wireless data rate with  stable Wi-Fi connection. Placed on the roof of the building, it can excellently transfer stable signal for long distance use.


Protection Design
With the waterproof design, it can adapt to any poor working environment and effectively protect itself from dust, water and lightning.


Flexible Power Supply by Passive PoE
Powered by Power over Ethernet (PoE) technology, CP300 can not only ensure the security of structured cabling but also improves the deployment flexibility and reduce costs.




HARDWARE FEATURES
Interface 1 *100BaseTX (Auto MDI/MDIX) LAN Port
Power Supply 12V DC /1A (PoE)
Button 1 *Reset Button
Antenna 2 *8dBi internal antennas
LED Indicators 1 *Power, 1 *LAN, 1 *WLAN, 4 *Signal Strength
WIRELESS FEATURES
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3u, IEEE 802.3
RF Frequency 2.4~2.4835GHz
Data Rate 802.11n: up to 300Mbps
 802.11g: up to 54Mbps (dynamic)
 802.11b: up to 11Mbps (dynamic)
EIRP < 20dBm
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Reception Sensitivity 270M: -64 dBm@10% PER
 135M: -65 dBm@10% PER
 54M: -68 dBm@10% PER
 11M: -85 dBm@8% PER
 6M: -88 dBm@10% PER
 1M: -90 dBm@8% PER
SOFTWARE FEATURES
Operation Mode Gateway, Bridge, Wireless ISP
Network LAN Setup, Static DHCP Setup , WAN Setup
Wireless Basic Setting, Security Setting, Advanced Setting, Multiple APs,
 MAC Authentication, WDS, WPS, Repeater
Firewall IP/Port Filtering, MAC Filtering, URL Filtering, Port Forwarding,
 DMZ Setting, Denial of Service
Management Statistics
 Dynamic DNS Setting (Bridge mode doesn’t have this option)
 Time Zone Setting
 Remote Management
 System Log
 Upgrade Firmware
 Save/Reload Setting
 Administrator Setting
Others
Package Contents CP300 Wireless CPE *1
 PoE Box *1
 Power Adapter *1
 Ethernet Cable *1
 Quick Installation Guide *1
Environment Operating Temperature: 0?~40 ? (32 ?~104?)
 Storage Temperature: -40?~70 ? (-40 ?~158?)
 Operating Humidity: 10%~90% non-condensing
 Storage Humidity: 5%~90% non-condensing

Firmware

ModelDownloadVersionUpdated
CP300 V3CP300 V3-V2.0.2-20170510.zipV2.0.22017-06-01
CP300TOTOLINK_CP300_V1.2.zipV1.22014-03-26

Datasheet

ModelDownloadVersionUpdated
CP300CP300_datasheet_v1.5.pdfVer1.52015-12-21

Manual

ModelDownloadVersionUpdated
CP300CP300 User Manual V1.0.zipver1.02014-03-21

Quick Install Guide

ModelDownloadVersionUpdated
CP300CP300 QIG V1.pdfver1.02016-07-21


ModelDownloadVersionUpdated
CP300CP300_Photo002.jpgResolution 1200x12002014-03-19
CP300CP300_Photo001.jpgResolution 1200x12002014-03-19
