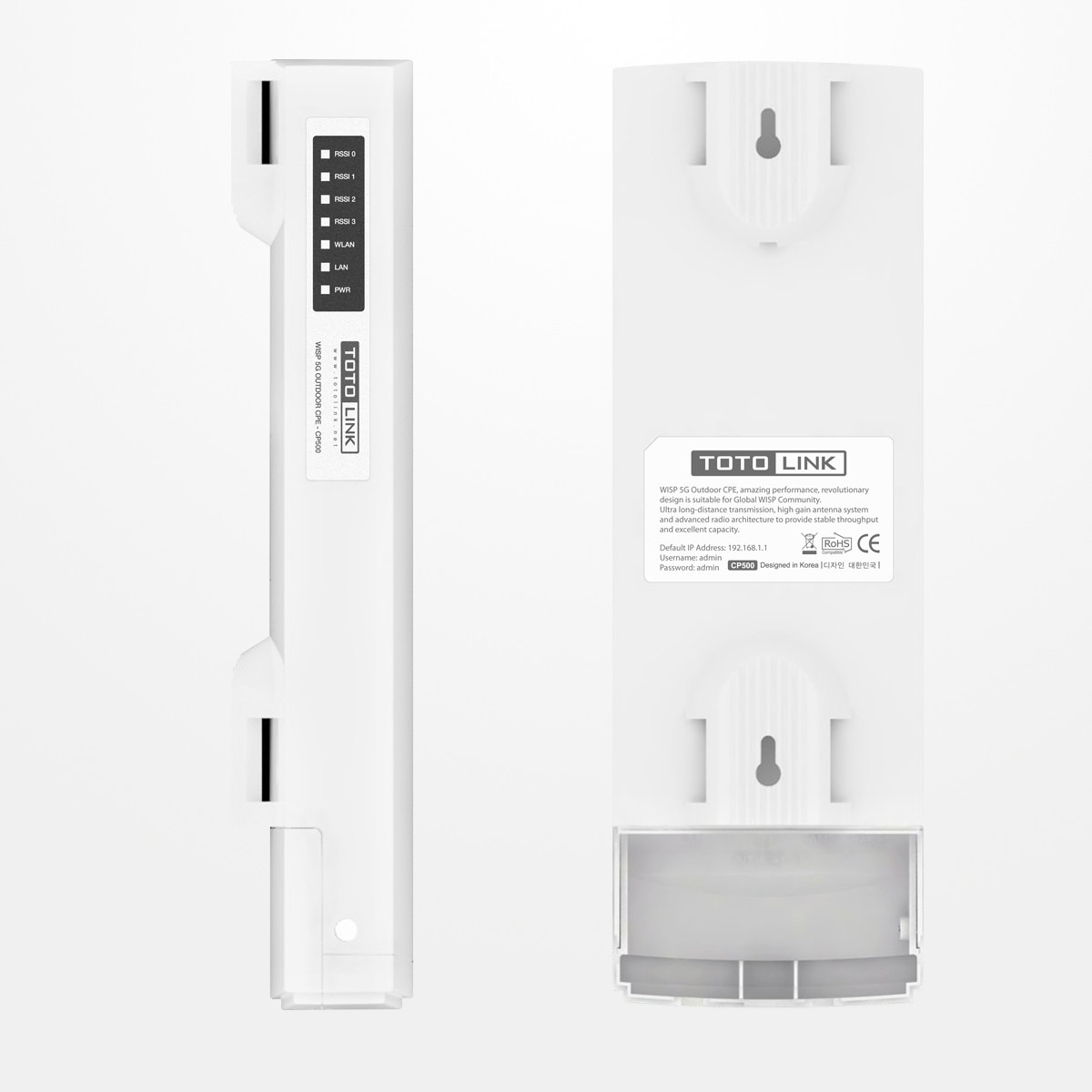

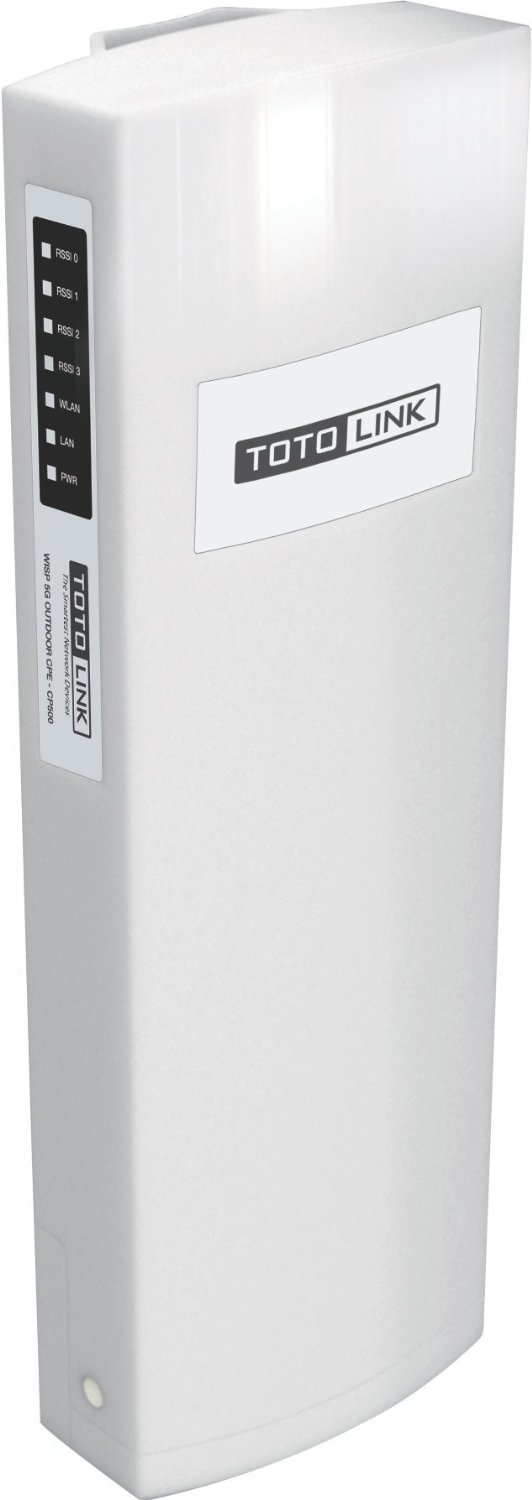

CP 500 | Router | Totolink

5GHz Wireless High Power CPE/Router 802.11n/a(2T2R)
Manufacturer: TOTOLINK
Call for pricing

CP500 is a WISP CPE Solution that specially designed for long distance wireless transmission. It complies with the most advanced IEEE802.11n standard, which can deliver up to 300Mbps wireless speed and 300mw output power. With the high gain internal antennas and advanced radio architecture, CP500 will make the radio signal transmission coverage more extensive with a stable wireless connection. Besides, it also offers Router network mode which allows much more users to connect to internet. Since it is powered by Passive PoE, it will make the deployment more flexible.



Super Capability for Long-distance Transmission
With up to 300mw wireless transmission power and two internal high gain antennas, CP500 can bring robust signal for stable wireless connection. Placed on the roof of the building, it can excellently provide wireless connection for customers live far away from WISP.



Outdoor Protection Design
No matter where you place it, in high or low temperature condition, it will work very well as normal. With the outdoor protection design, it can adjust poor working environment and effectively protect itself from dust, water and lightning.



2 *14dBi Dual-polarization Antennas
Using the most advanced dual-polarization technology, one antenna can do the same work as two general antennas, which effectively save the use of antennas. Signal strength improved and the long-distance wireless connection can be more stable.



Flexible Power Supply by Passive PoE
Long distance power supply is supported thanks to the unique design of Passive PoE, you can choose the best position to transmit wireless signal without worrying about power outlet. It can not only ensure the security of structured cabling but also improves the flexibility and minimizing costs.

Firmware

ModelDownloadVersionUpdated
CP500TOTOLINK_CP500_V3.0.zipV3.02014-03-26

Datasheet

ModelDownloadVersionUpdated
CP500CP500_datasheet_v1.pdfver1.02014-02-18

Manual

ModelDownloadVersionUpdated
CP500CP500 User Manual V1.1.zipver1.12014-03-21

Quick Install Guide

ModelDownloadVersionUpdated
CP500CP500 QIG V1.1.zipver1.12014-02-26


ModelDownloadVersionUpdated
CP500CP500_Photo002.jpgResolution 1200x12002014-03-19
CP500CP500_Photo001.jpgResolution 1200x12002014-03-19
