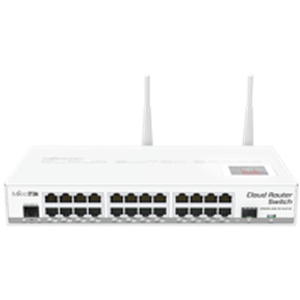

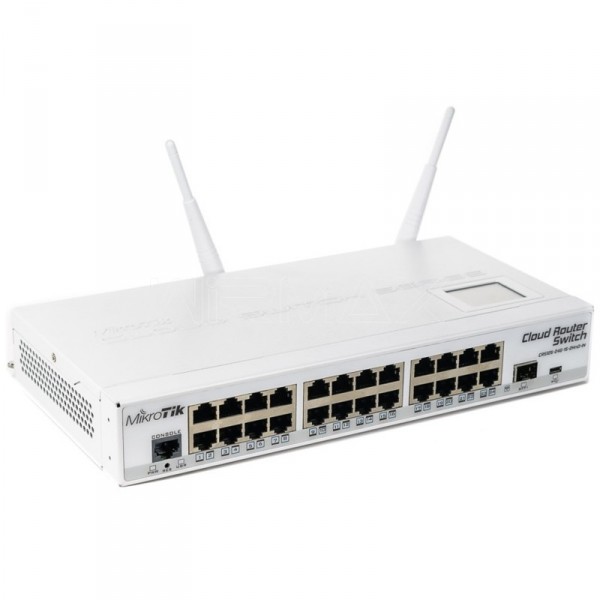

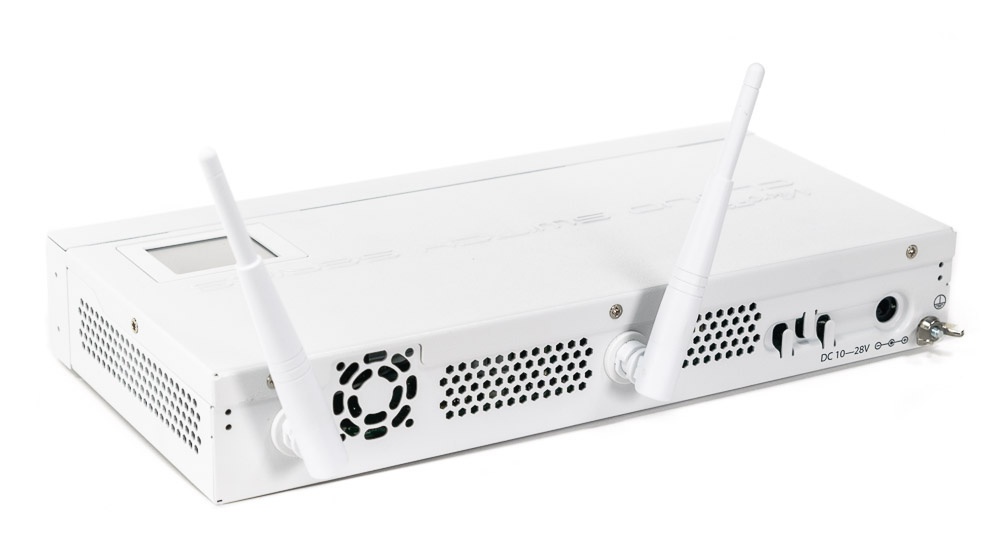

CRS125-24G-1S-2HnD- IN | Routerboard | Mikrotik

24x Gigabit Ethernet layer 3 Smart Switch, 1x SFP cage, LCD, 1000mW 802.11b/g/n Dual Chain wireless, 600MHz CPU, 128MB RAM, Metal desktop case, RouterOS L5
Manufacturer: MIKROTIK
Call for pricing

Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
What’s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.

Perfect SOHO gateway router, switch, 11n AP all in one box
• Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
• RouterOS gateway/firewall/VPN router with passive cooling
• up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
• 1000mW high power 2.4GHz 11n wireless AP

Product specifications

Details
Product codeCRS125-24G-1S-2HnD-IN
CPU nominal frequency600 MHz
SFP DDMIYes
CPU core count1
Size of RAM128 MB
ArchitectureMIPS-BE
10/100 Ethernet ports0
10/100/1000 Ethernet ports24
MiniPCI slots0
MiniPCI-e slots0
Wireless chip modelAR9344-DC3A-R
Wireless standards802.11b/g/n
Number of USB ports1
Power Jack1
Supported input voltage8 V - 28 V
PoE inYes
PoE outNo
Voltage MonitorYes
CPU temperature monitorNo
PCB temperature monitorYes
Dimensions285x145x45mm
Operating SystemRouterOS
Operating temperature range-35C to +65C
License level5
Antenna gain DBI4
Current MonitorNo
CPUAR9344-DC3A-R
Max Power consumption19W
SFP ports1
SFP+ ports0
USB slot typemicroUSB type AB
Number of chains2
Serial portRJ45
