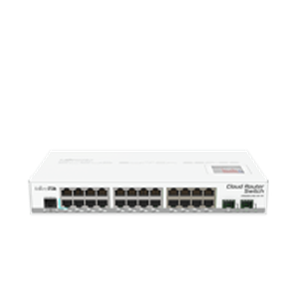

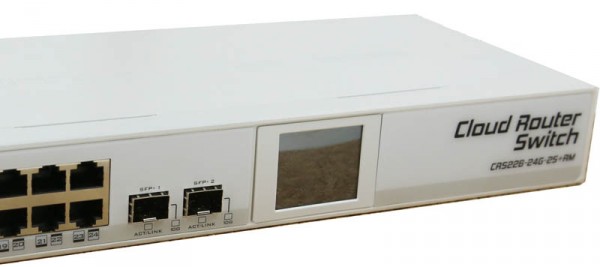

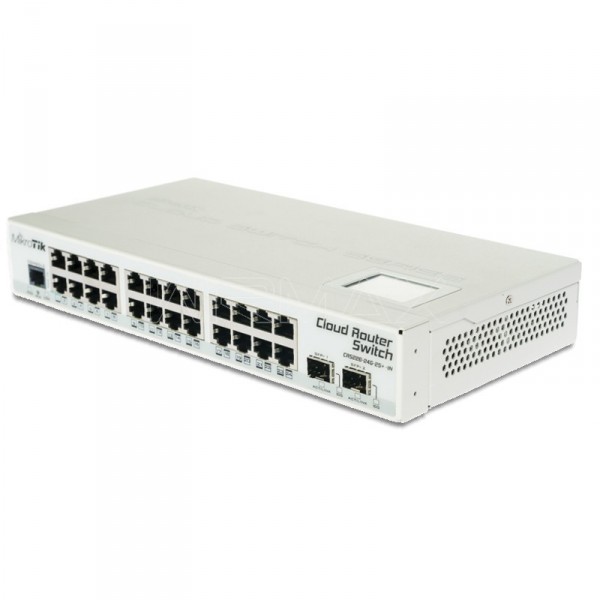

CRS226-24G-2S+IN | RouterBoard | Mikrotik

24x Gigabit Ethernet layer 3 Smart Switch, 2x SFP+ cages, LCD, 400MHz CPU, 64MB RAM, Metal desktop case, RouterOS L5
Manufacturer: MIKROTIK
Call for pricing

Cloud Router Switch is our new member of our Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes. The CRS226 uses a new class of switch chips, which allows us to have two SFP+ ports for 10G connectivity.

Product specifications

Details
Product codeCRS226-24G-2S+IN
SFP DDMIYes
CPU nominal frequency400 MHz
CPU core count1
Size of RAM64 MB
ArchitectureMIPS-BE
10/100 Ethernet portsNone
10/100/1000 Ethernet ports24
MiniPCI slots0
MiniPCI-e slots0
Number of USB ports0
Power Jack1
Supported input voltage8 V - 30 V
PoE inYes
PoE outNo
Voltage MonitorYes
CPU temperature monitorNo
PCB temperature monitorYes
Dimensions285x145x45mm
Operating SystemRouterOS
Operating temperature range-35C to +65C
License level5
Current MonitorNo
CPUQCA8519-AC2C
Max Power consumption21W
SFP portsNone
SFP+ ports2
Serial portRJ45
