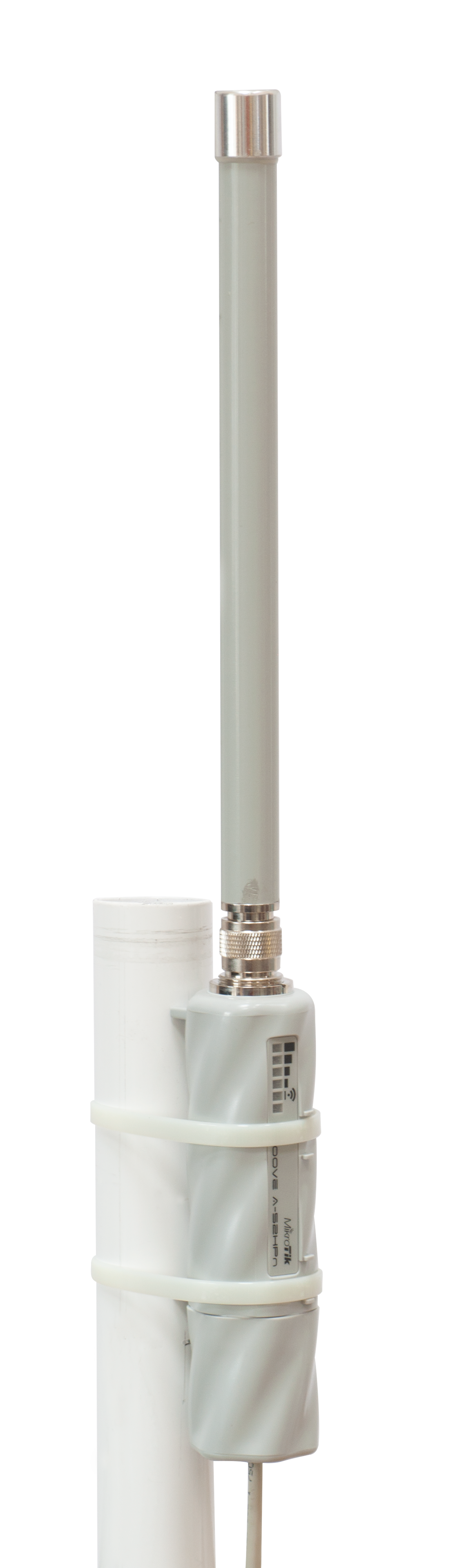

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high 500mW output power! GrooveA has also supports AP mode.
With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.
NEW- now comes packaged with a 2GHz/5GHz 6dBi Omni antena!
Box contains: Groove unit, mounting loops, PoE injector, power adapter, 6dBi 2.4/5Ghz Omni antenna
|CPU nominal frequency||600 MHz|
|CPU core count||1|
|Size of RAM||64 MB|
|10/100 Ethernet ports||1|
|10/100/1000 Ethernet ports||0|
|Wireless chip model||AR9342-BL1A|
|Number of USB ports||0|
|Supported input voltage||9 V - 30 V|
|CPU temperature monitor||No|
|PCB temperature monitor||Yes|
|Operating temperature range||-30C to +70C|
|Antenna gain DBI||6|
|Max Power consumption||Up to 0.19A at 24V (4.56W)|
|Number of chains||1|
