i20T | Door Phone | Fanvil

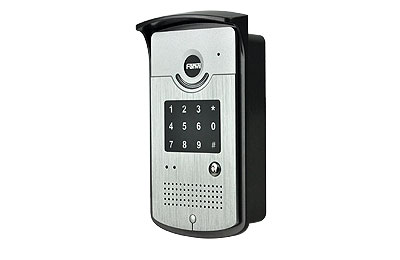

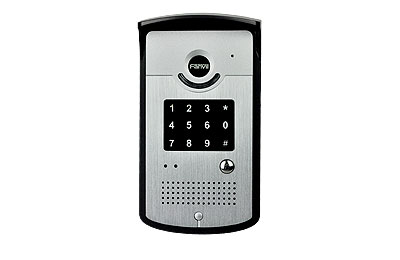

The Fanvil I20T IP Door Phone allows for triple function access control with call, code and RFID (Radio Frequency Identification) card and offers an protective coverage rating of IP54 against dust and water. The i20T matches perfectly with multiple platforms such as; 3CX IP PBX, Asterisk, and Elastix.
Manufacturer: Fanvil Smart Voip
Call for pricing

Main Features

Specification

Video

Download

Main FeaturesTo the top
Call Features
 Intercom
 Speed Dial
 Auto-Answering (per line)
 Voice Message (on server)
 Local 3-way Conference
 Hot Line


Phone Features
 Call log (900 entries, in/out/missed)
 Open Door Log
 Access Table (300 entries)
 Support RFID Card issues (300 entries)
 Programmable DSS/Soft keys
 Network Time Synchronization
 Action URL / Active URI



                                                      >>Learn more


SpecificationTo the top
Generic
 2 SIP Lines
 POE Enabled
 Full-duplex speakerphone (HF)
 Numeric keypad (Dial pad or Password input)
 Intelligent DSS Keys (Speed Dial)
 Embedded installation
 Integrated RFID Card reader
 Integrated indoor switchgear
 Integrated one Relay
 External Power Supply
 Access control-by call, code, RFID card
 Industrial Standard Certifications: IP54,
    CE/FCC

Call Features
 Intercom
 Speed Dial
 Auto-Answering (per line)
 Voice Message (on server)
 Local 3-way Conference
 Hot Line

Phone Features
 Call log (900 entries, in/out/missed)
 Open Door Log
 Access Table (300 entries)
 Support RFID Card issues (300 entries)
 Programmable DSS/Soft keys
 Network Time Synchronization
 Action URL / Active URI

Audio
 Narrowband CODEC: G.711a/u, G.723.1,
    G.726-32K, G.729AB
 Wideband CODEC: G.722
 Full-duplex Acoustic Echo Canceller (AEC) –
    Hands-free Mode, 96ms tail-length
 Voice Activity Detection (VAD) / Comfort
    Noise Generation (CNG) / Background
    Noise Estimation (BNE)
 Packet Loss Concealment (PLC)
 Dynamic Adaptive Jitter Buffer up to 300ms
 DTMF: In-band, Out-of-Band – DTMF-Relay
    (RFC2833) / SIP INFO

Networking
 Physical: RJ45 Ethernet Jacket x2: Network x1
    (802.3AF POE Enabled), LAN x1
    (Bridged to Network)
 IP Configuration: Static / DHCP / PPPoE
 Network Access Control: 802.1x
 VPN: L2TP (Basic Unencrypted) / OpenVPN
 VLAN
 QoS
Protocols
 SIP2.0 over UDP/TCP/TLS
 RTP/RTCP/SRTP
 STUN
 DHCP
 PPPoE
 802.1x
 L2TP (Basic Unencrypted)
 OpenVPN
 SNTP
 FTP/TFTP
 HTTP/HTTPS
 TR069

RFCs:
354/1321/1350/1769/1889/1890/2131/
2132/2616/2617/2661/2833/2976/3261/
3262/3263/3264/3265/3268/3311/
3489/3711/4346/4566/5630/5865

Deployment & Maintenance
 Auto-Provisioning via
    FTP/TFTP/HTTP/HTTPS/DHCP/SIP PNP/TR069
 Web Management Portal
 Web-based Packet Dump
 Configuration Backup/Restore
 Open Door Export
 Access Table Export/Import
 Firmware Upgrade
 Syslog (include Door log)

Physical Specifications
 Keypad: 13 keys, including
 12 Standard Phone Digits keys
 1 Hands-free key or DSS Keys(Speed Dial)
 RJ45 Ethernet Jacket x2: Network x1
    (802.3AF POE Enabled), PC x1
    (Bridged to Network)
 PoE: 802.3af (Class 0 - 12.95W) 48V/380mA
 Main Chipset: Broadcom
 Passive Switch: Normally Open and Normally
    Closed highest at 30V/1A AC/DC
 Active Switched Output: 12V/500mA DC
 Audio Amplifier: 2.5W
 Cables: CAT5 or better
 Power Supply:12V+-15%/1A DC or PoE
 RFID/IC Card: EM-4100 /4100 (125KHz)
 Shell Material: Aluminum Cove, Plastic back
    case
 Protection level: IP54
 Working Temperature: -40~70?
 Storage Temperature: -40~70?
 Working Humidity: 10~90%
 Overall Dimension: 174.5 x 96 x 44mm
    (W x H x L)
 Package Dimensions: 235x140x100mm
    (W x H x L)
 Package Weight: 0.6 KG
