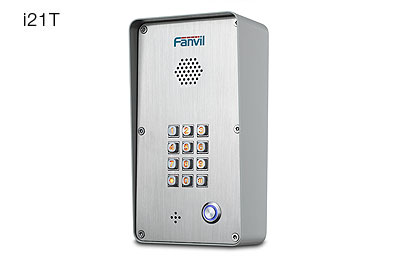

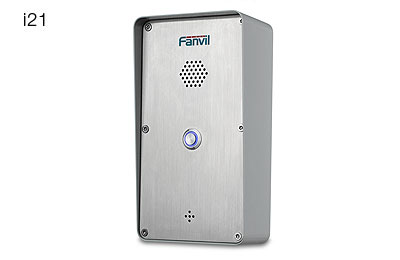

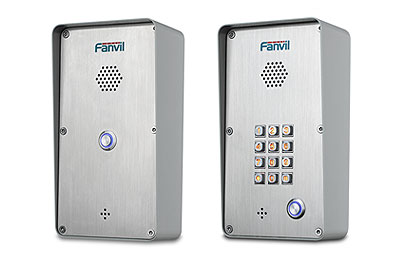

i21/i21T | SIP intercom | Fanvil

The design of i21/i21T Sip Door phone are based on experience and knowledge of Fanvil IP phone development.i21/i21T are using standard IP/RTP/RTSP protocol for voice transmission and enjoy the advantages of fullrange of compatibility.i21/i21T have a variety of enterprise-level features and compatible with lots of major platforms,such as 3CX, Asterisk,Broadsoft,Elastix,etc. Main Chipset: Broadcom Support SIP 2.0 and Operator of IMS Platform Support POE Dusty Free On the Stainless Panel, Water Proof Followed by IP65 Mechanical Design for IK10 Approval
Manufacturer: Fanvil Smart Voip
Call for pricing




Main Features
Call Features
 Intercom
 Speed Dial
 Auto-Answering (per line)
 Voice Message (on server)
 Local 3-way Conference
 Hot Line
Phone Features
 Call log (900 , in/out/missed)
 Open Door Log
 Access Table (300 entries)
 Programmable DSS/Soft keys
 Network Time Synchronization
 Action URL / Active URI


Specification
Generic
 2 SIP Lines
 POE Enabled
 Full-duplex speakerphone (HF)
 Numeric keypad (Dial pad or Password input)
    (i21T only)
 Intelligent DSS Keys (Speed Dial)
 Wall-mount installation
 Integrated Noise Reducation
 Omnidirectional pickup
 Integrated indoor switch gear
 Integrated one Relay
 External Power Supply
 Access control-by call, code
 All-in-one door access, Intercom and Paging
    Service
 Industrial Standard Certifications: IP65, Ik10,
    CE/FCC

Call Features
 Intercom
 Speed Dial
 Auto-Answering (per line)
 Voice Message (on server)
 Local 3-way Conference
 Hot Line

Phone Features
 Call log (900 entries, in/out/missed)
 Open Door Log
 Access Table (300 entries)
 Programmable DSS/Soft keys
 Network Time Synchronization
 Action URL / Active URI

Audio
 Narrowband CODEC: G.711a/u, G.723.1,
    G.726-32K, G.729AB
 Wideband CODEC: G.722
 Full-duplex Acoustic Echo Canceller (AEC) –
    Hands-free Mode, 96ms tail-length
 Voice Activity Detection (VAD) / Comfort Noise
    Generation (CNG) / Background Noise
    Estimation (BNE) / Noise Reduction (NR)
 Packet Loss Concealment (PLC)
 Dynamic Adaptive Jitter Buffer up to 300ms
 DTMF: In-band, Out-of-Band – DTMF-Relay
    (RFC2833) / SIP INFO
 Omnidirectional pickup: pickup distance 5 m
    Networking
 Physical: RJ45 Ethernet Jacket x2: Network x1
    (802.3AF POE Enabled), LAN x1
    (Bridged to Network)
 IP Configuration: Static / DHCP / PPPoE
 Network Access Control: 802.1x
 VPN: L2TP (Basic Unencrypted) / OpenVPN
 VLAN
 QoS
Protocols
 SIP2.0 over UDP/TCP/TLS
 RTP/RTCP/SRTP
 STUN
 DHCP
 PPPoE
 802.1x
 L2TP (Basic Unencrypted)
 OpenVPN
 SNTP
 FTP/TFTP
 HTTP/HTTPS
 TR069

RFCs:
354/1321/1350/1769/1889/1890/2131/
2132/2616/2617/2661/2833/2976/3261/
3262/3263/3264/3265/3268/3311/
3489/3711/4346/4566/5630/5865

Deployment & Maintenance
 Auto-Provisioning via
    FTP/TFTP/HTTP/HTTPS/DHCP/TR069/SIP PNP
 Web Management Portal
 Web-based Packet Dump
 Configuration Backup/Restore
 Entry Log Export
 Access Table Export/Import
 Firmware Upgrade
 Syslog (include Open Door Log)

Physical Specifications
 Keypad: 13 keys, including
 12 Standard Phone Digits keys (i21T only)
 1 Hands-free key or DSS Keys (Speed Dial)
 RJ45 Ethernet Jacket x2: Network x1
    (802.3AF POE Enabled), LAN x1
    (Bridged to Network)
 PoE: 802.3af (Class 0 - 12.95W) 48V/380mA
 Main Chipset: Broadcom
 Passive Switch: Normally Open and Normally
    Closed highest at 30V/1A AC/DC
 Active Switched Output: 12V/500mA DC
 Audio Amplifier: 2.5W
 Cables: CAT5 or better
 Power Supply:12V+-15%/1A DC or PoE
 Shell Material: Aluminum Cove, Plastic back
    case
 Protection level: IP65 and Ik10
 Working Temperature:-40~70?
 Storage Temperature:-40~70?
 Working Humidity: 10~90%
 Overall Dimension: 230 x 125 x 76mm
    (W x H x L)
 Package Dimensions: 310x175x115mm
    (W x H x L)
 Package Weight: 2.2 KG (i21T) 2.1KG (i21)
