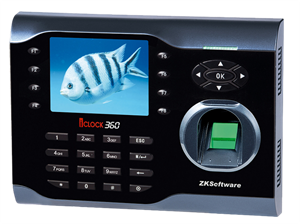

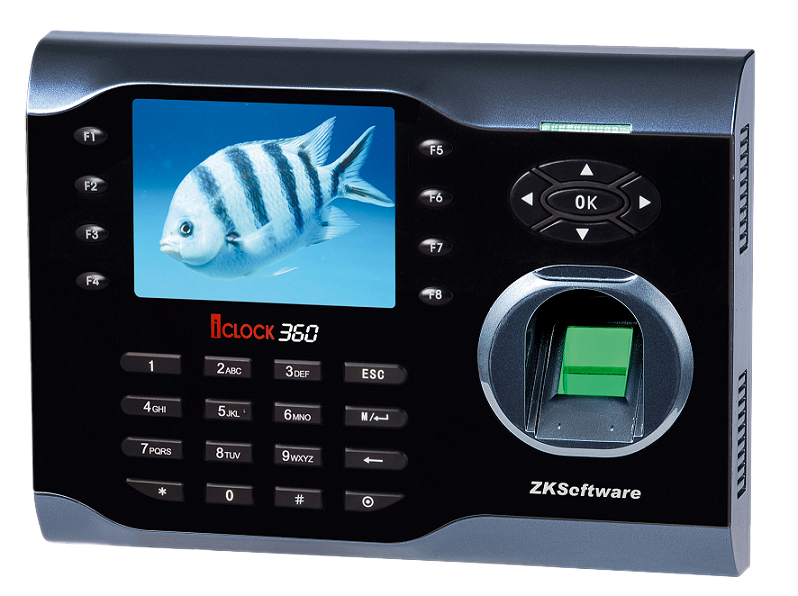

The firmware of iClock360 has been updated to the New Firmware. It brings many new experiences, including the stunning GUI, rock-solid stability, fast matching speed and expandability

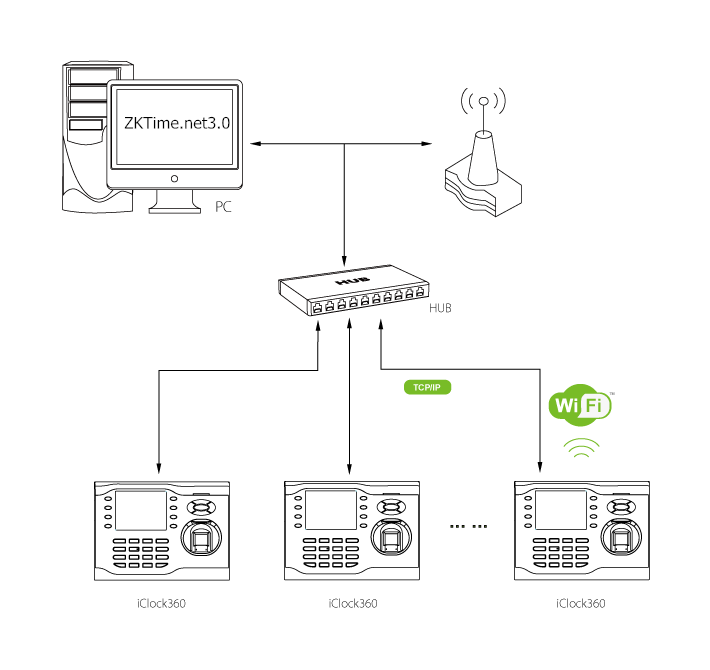

Users can easily manage data by networking iClock360 via RS232/485, TCP/IP, and USB Host. Most importantly, all the functions can still operate in a networking state.
iClock360 is compatibility with various types of USB flash disks, ADMS and former SDK. It also supports data backup and retrieve to avoid the risk of accidental deletion.It promotes the fingerprint time & attendance management to the next level. You can get the best of benefits from the iClock360.
Remarkable user experience
• Intuitive and stunning UI designed with the most popular and internationalized factor.
• Interface operation adopts modularized hierarchical design. Simpler, better and more logical.
• Faster matching speed: less than 0.5 second.
Enhanced features and performance
• User validity settings.
• Data backup and retrieve.
• Advanced User ID consisted of letters and numbers.
• Chip encryption for firmware protection.
• More flexible menu configuration: double line text display.
Excellent expandability
• Easy to extend functions and customize customers demand.
Technical Specifications | |
Fingerprint Capacity | 8000 |
ID Card Capacity | 10,000 (Optional) |
Record Capacity | 200,000 |
Display | 3.5-inch Screen |
Communication | TCP/IP, RS232/485, USB (host & Client) |
Standard Functions | Workcode, SMS, DST, Scheduled-bell, Self-Service Query, Automatic Status Switch, T9 input, and photo-ID |
Optional Functions | ID/Mifare/HID, Webserver, 9 digit user ID, and Wi-Fi, ADMS |
Software | ZKTime 5.0 (Free), ZKTime.Net |
Power Supply | DC 12V 1.5A |
Verification Speed | =0.5 sec |
Operating Temp. | 0°C- 45°C |
Operating Humidity | 20%-80% |
Dimension | 192×140×41mm (Length×Width×Thickness) |
Gross Weight | 1.05 kg |
0.38MBData Sheet2015-08-07
