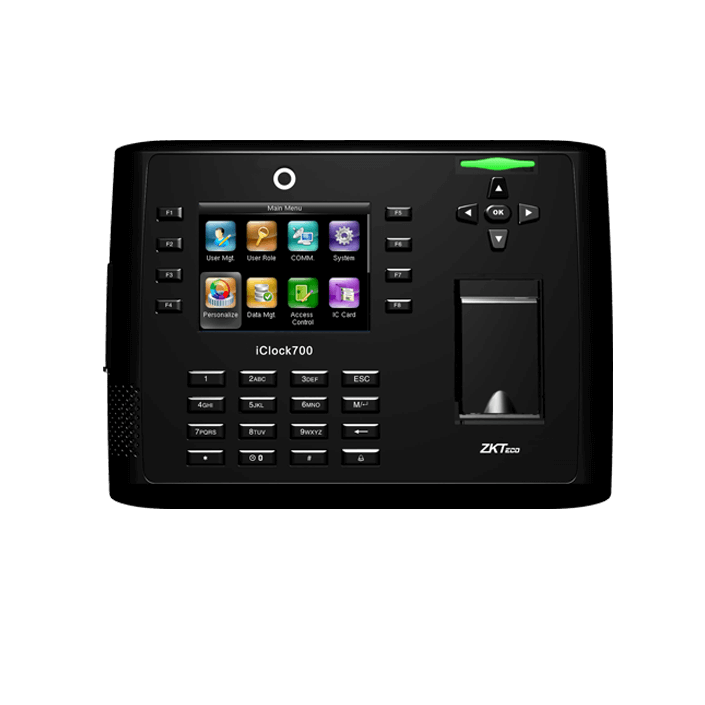

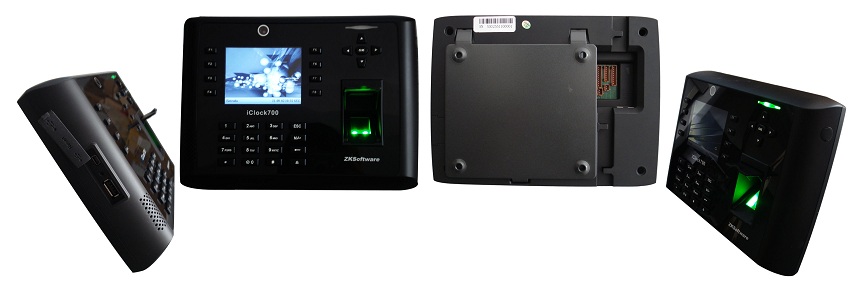

iClock700 | ZKTeco

iClock700 is compatible with various types of USB flash disks, ADMS and former SDK. Moreover,RS232/485, TCP/IP, and USB-host/client ensures a smooth date transmission between device and PC.
Manufacturer: ZKTeco
Call for pricing
It also has GPRS,Wi-Fi and 3G connectivity and access control connectivity with Wiegant out and in, electric lock, door sensor, exit button,alarm and Door Bell.

Remarkable User Experience

• Intuitive and stunning UI designed with the most popular and internationalized element.
• Interface operation adopts modularized hierarchical design. Simpler, Better and More logical.
• Faster matching speed: Less than 0.5 second.

Enhanced Features and Performance

• Multi-languages
• Data backup and retrieve.
• Advanced User ID consisted of letters and numbers.
• Chip encryption for firmware protection.

Excellent Expandability

 • Easy to extend functions and customize customers’ requirements.

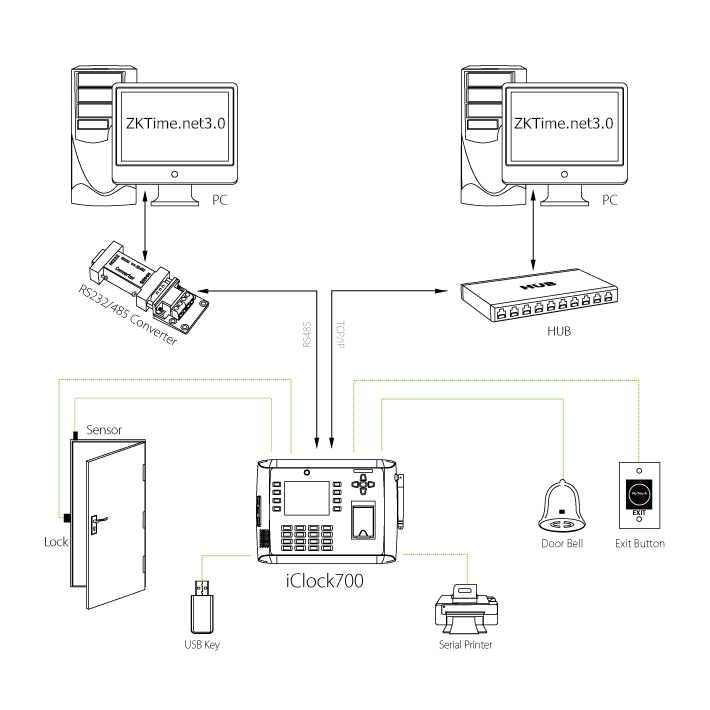

 Access Control Interface

• For Wiegand in and out, door lock connection, alarm and bell.


Technical Specifications

Fingerprint Capacity

8000

ID Card Capacity

10,000 (Optional)

Record Capacity

200,000

Display

3.5-inch TFT Screen

Communication

RS232/485, TCP/IP, USB-host/client

Standard Functions

Workcode, SMS, DST, Webserver, Scheduled-bell, Self-Service Query, Automatic Status Switch,Photo ID, T9 Input, Anti-passback, Camera, Built-in Battery

Access Control Interface

3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, and Door Bell

Wiegand Sigal

Input & Output

Optional Functions

ID/Mifare/HID, External Printer, ADMS, Wi-Fi, GPRS, 3G, Multiple Verify Mode

Software

ZKTime.Net, ZKTime 5.0

Power Supply

DC 12V 3A

Verification Speed

=0.5 Sec.

Operating Temp.

0°C - 45°C

Operating Humidity

20% - 80%

Dimension

225.2×166.0×46.3mm (Length×Width×Thickness)

Gross Weight

1.94 kg

iClock700
0.4MBData Sheet2015-08-07
WDMS_V5.1.3.20170731
66.64MBSoftware2017-08-02
ZKTime.Net_3.0.2.7
100.51MBSoftware2017-07-24
ZKTime Web-2.0.3.13987_R
310.22MBSoftware2017-09-07
ZKAccess_Overseas_3.5.3.14
152.91MBSoftware2018-01-31
Standalone SDK
22.34MBSDK2018-03-15
