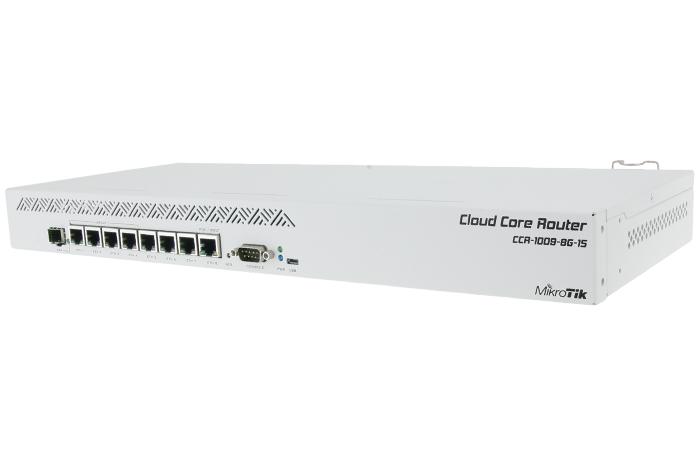

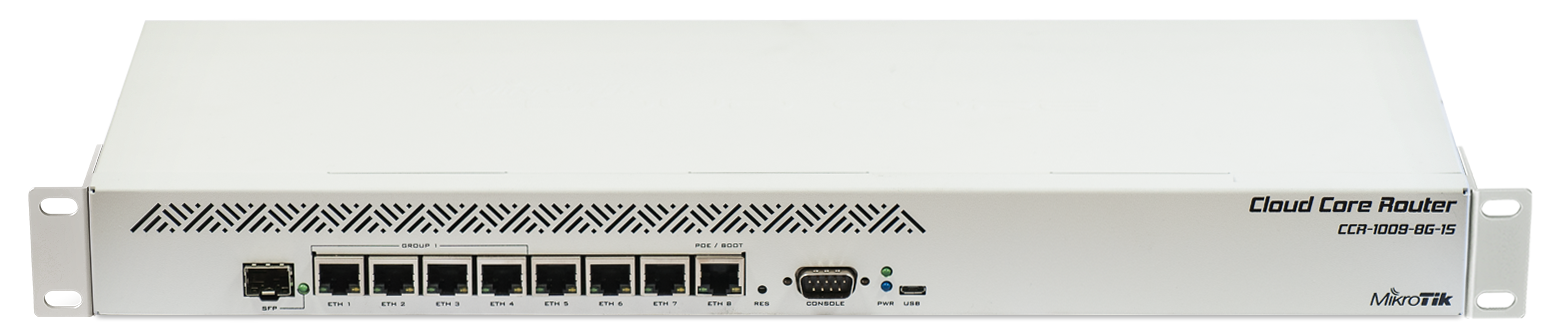

CCR 1009-8G-1S | RouterBoard | Mikrotik

1U rackmount, 8x Gigabit Ethernet, 1xSFP cage, 9 cores x 1.2GHz CPU, 1GB RAM, RouterOS L6
Manufacturer: MIKROTIK
Call for pricing

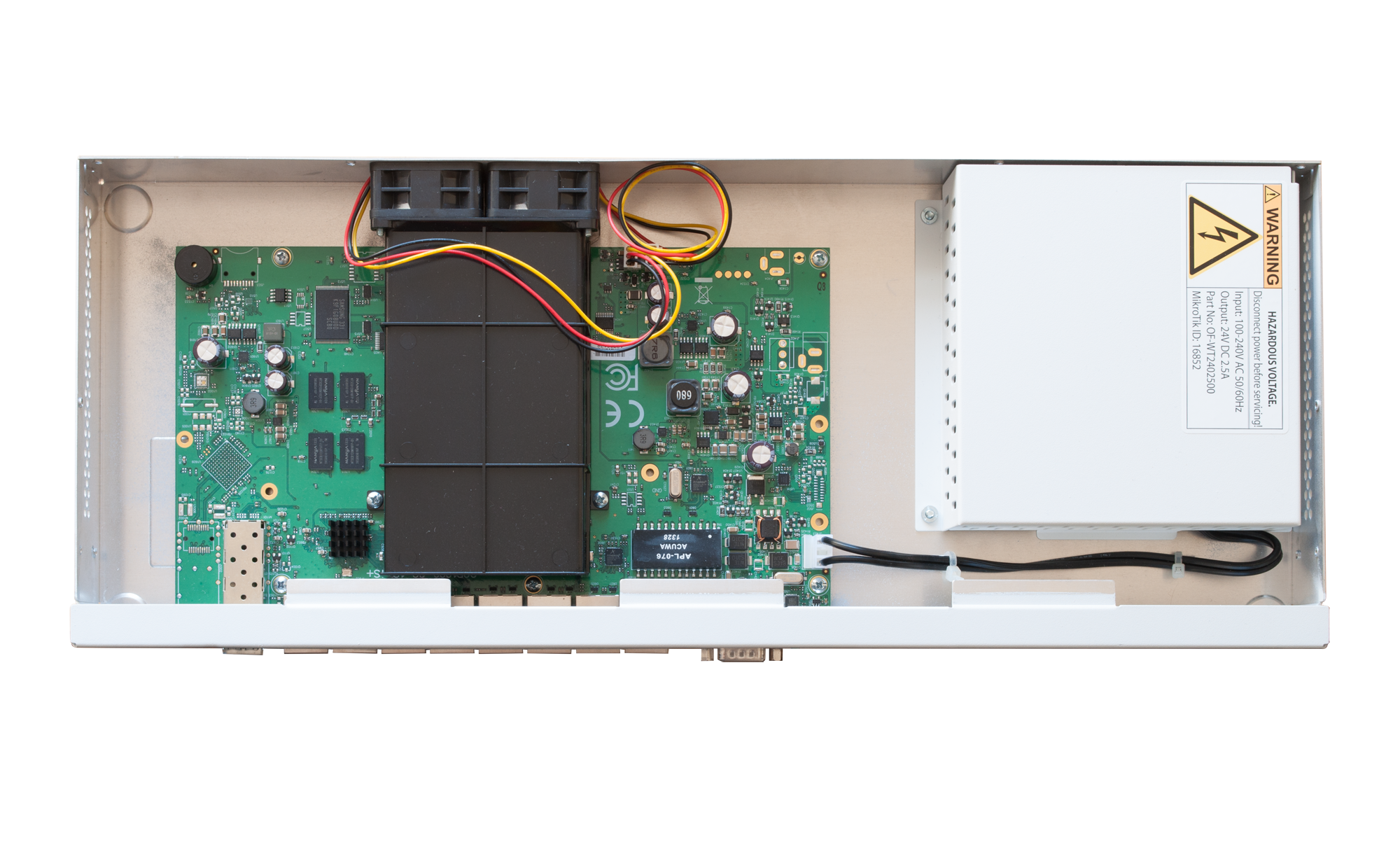

The CCR1009 is a powerful Ethernet router based on the cutting edge TILERA 9 core CPU.

It comes with 1GB of RAM, eight Gigabit Ethernet ports (Ether1-4 are in a Switch group), and one SFP cage (SFP module not included).

Product specifications

Details
Product codeCCR1009-8G-1S
CPU nominal frequency1.2 GHz
SFP DDMIYes
CPU core count9
Size of RAM1 GB
ArchitectureTILE
10/100 Ethernet portsNone
10/100/1000 Ethernet ports8
MiniPCI slots0
MiniPCI-e slots0
Number of USB ports1
Power Jack1
802.3af supportNo
Supported input voltage14 V - 57 V
PoE inYes
PoE outNo
Voltage MonitorYes
CPU temperature monitorYes
PCB temperature monitorNo
Dimensions444x175x47mm
Operating SystemRouterOS
Operating temperature range-20C .. +60C
License level6
Current MonitorYes
CPUTLR4-00980CG-10CE
Max Power consumption34W
SFP ports1
SFP+ ports0
USB slot typemicroUSB type AB
Number of chains0
Serial portRS232 + Header
