CCR1036-12G-4S-EM | Routerboard | Mikrotik

1U rackmount, 12x Gigabit Ethernet, 4xSFP cages, LCD 36 cores x 1.2GHz CPU, 16GB RAM, 24 mpps fastpath, Up to 16Gbit/s throughput, RouterOS L6.
Manufacturer: MIKROTIK
Call for pricing

CCR1036-12G-4S-EM is an carrier grade router with a cutting edge 36 core Tilera CPU! Unprecedented power and unbeatable performance - this is our new flagship device. Over 20 times faster than our previous top model, the Cloud Core supports throughput of up to 24 million packets per second, or up to 16 gigabits - full wire speed.

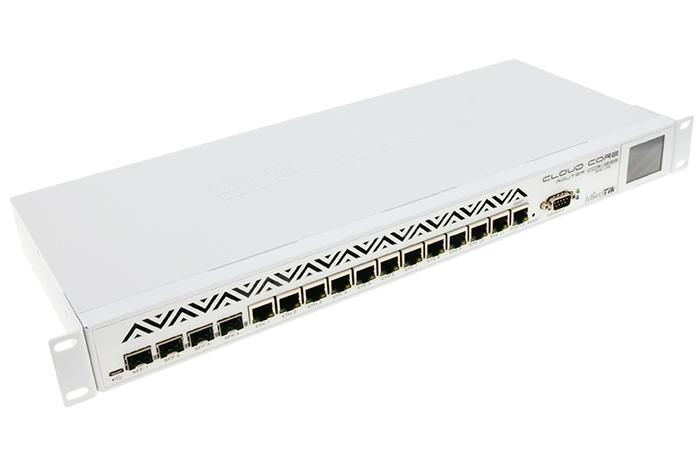

The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit ethernet ports, serial console and a USB port. A color touchscreen displays device status, traffic graphs, or provide access to simple configuration options.

It has two SODIMM slots, by default it is shipped with 16GB of RAM, but has no memory limit in RouterOS. It comes with power supply and 1U rackmount case.

The cloud core router is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

See our product video:

Product specifications

Details
Product codeCCR1036-12G-4S-EM
CPU nominal frequency1.2 GHz
SFP DDMIYes
CPU core count36
ArchitectureTILE
Size of RAM16 GB
10/100 Ethernet ports0
10/100/1000 Ethernet ports12
MiniPCI slots0
MiniPCI-e slots0
Number of USB ports1
Power Jack1
PoE outNo
PoE inNo
Supported input voltage12 V - 28 V
Voltage MonitorYes
CPU temperature monitorYes
PCB temperature monitorYes
Dimensions355x145x55cm
Operating SystemRouterOS v6 (64bit)
Operating temperature range-20C .. +60C
License level6
Antenna gain DBINo
Current MonitorYes
CPUTLR4-03680CG-12CE-A3b
Max Power consumption60W
SFP ports4
SFP+ ports0
USB slot typemicroUSB type AB
Serial portRS232
