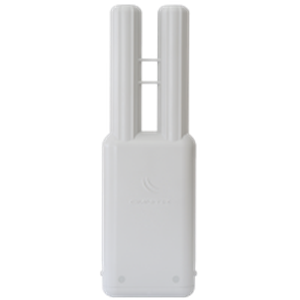

OmniTIK is a weatherproof outdoor AP with dual-polarized omni antennas - the perfect companion for our SXT, or for any other 802.11 standard device.

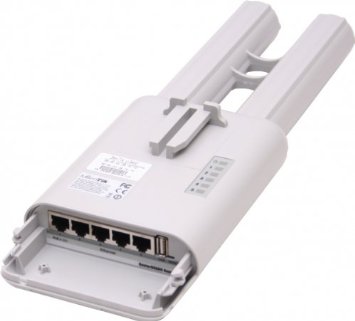

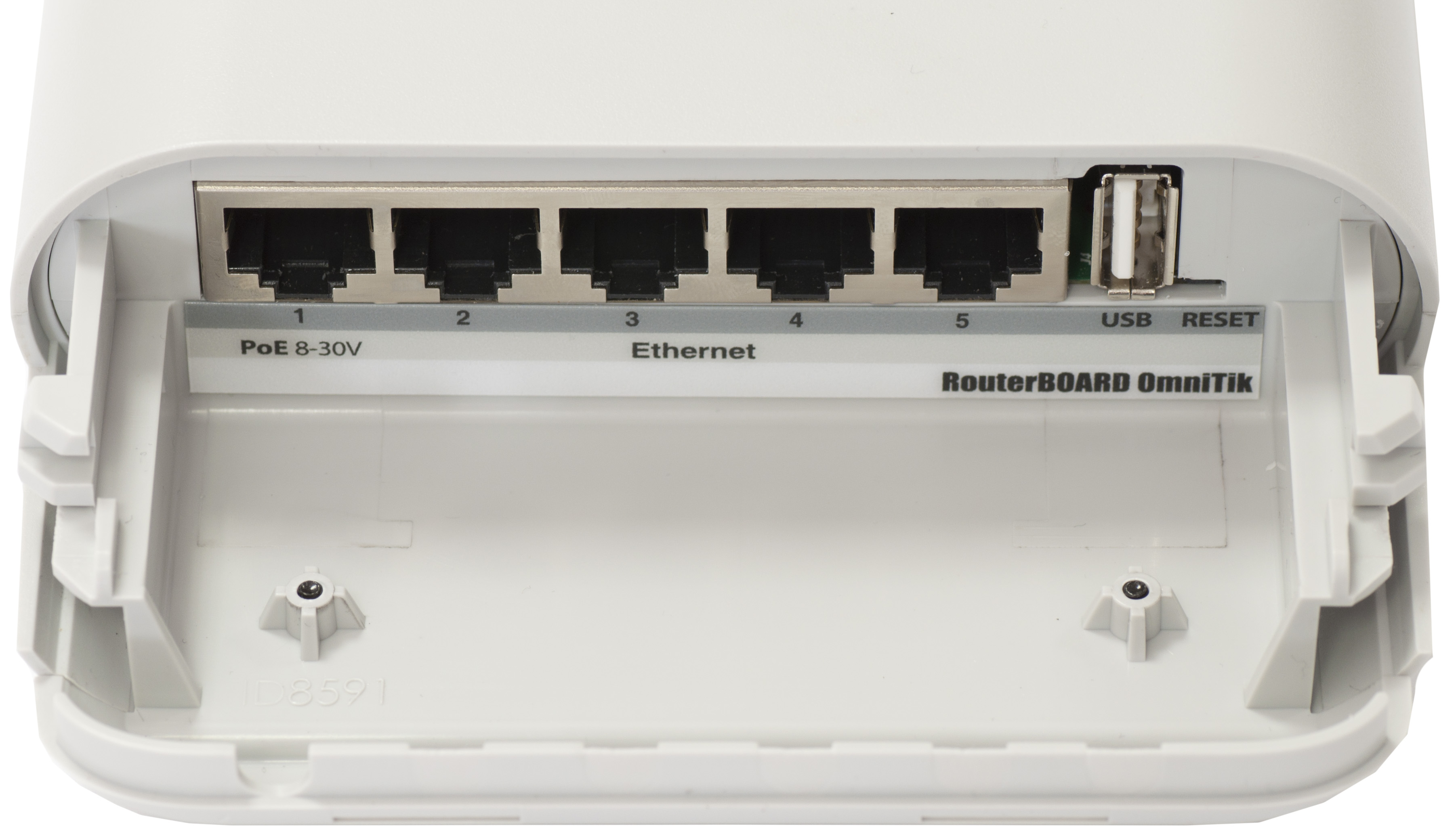

Weatherproof, durable and ready to use. It has five 10/100 Ethernet ports, PoE support and a built-in 400mW 802.11a/n wireless radio. It supports Nv2 TDMA technology with up to 200Mbit aggregate throughput.
LED signal indicators on it’s back are fully customizable, show Ethernet activity or wireless signal - or any other information from RouterOS. The USB port gives the ability to connect a 3G modem or a storage drive. The OmniTIK runs RouterOS with all it’s features

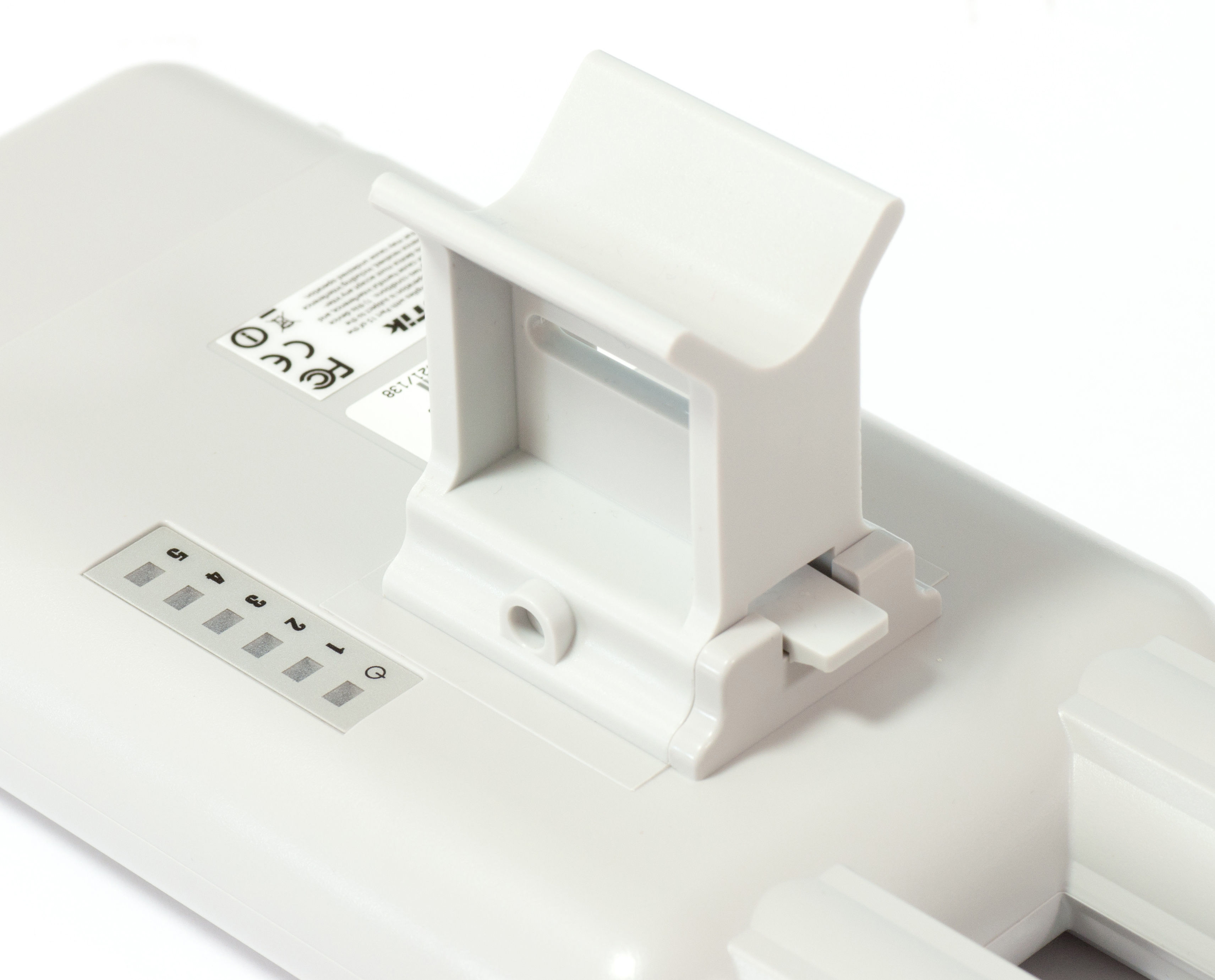

Box contains: OmniTik U-5HnD, mounting loops, PoE injector, power adapter
Product specifications
| Details |
|---|
| Product code | RBOmniTIKU-5HnD |
| CPU nominal frequency | 400 MHz |
| CPU core count | 1 |
| Size of RAM | 32 MB |
| Architecture | MIPS-BE |
| 10/100 Ethernet ports | 5 |
| 10/100/1000 Ethernet ports | 0 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Wireless chip model | AR9280-AL1A |
| Wireless standards | 802.11a/n |
| Number of USB ports | 1 |
| Memory Cards | No |
| Power Jack | 0 |
| 802.3af support | No |
| Supported input voltage | 9 V - 30 V |
| PoE in | Yes |
| PoE out | No |
| Voltage Monitor | No |
| PCB temperature monitor | No |
| CPU temperature monitor | No |
| Dimensions | 368x125x55mm |
| Operating System | RouterOS v5 and above |
| Operating temperature range | -30 .. +70C |
| License level | 4 |
| Antenna gain DBI | 7.5 |
| Current Monitor | No |
| CPU | AR7241-AH1A |
| SFP ports | 0 |
| SFP+ ports | 0 |
| USB slot type | USB type A |
| Number of chains | 2 |
| Serial port | None |
