RB1100AHx2 | Mikrotik | Routerboard

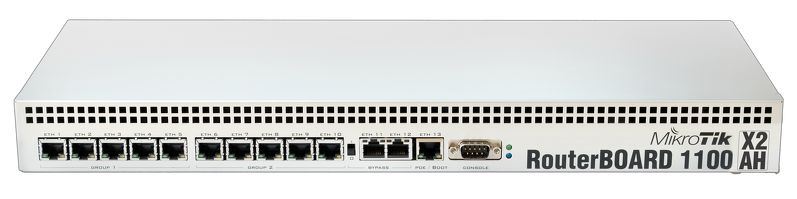

RouterBOARD 1100AHx2 with Power PC 1066Mhz CPU (two cores), 2GB RAM, 13xGbit LAN, RouterOS L6, 1U rackmount case, PSU
Manufacturer: MIKROTIK
Call for pricing

RB1100AHx2 is 1U rackmount Gigabit Ethernet router - with a dual core CPU, it can reach up to a million packets per second and supports hardware encryption!

It has thirteen individual gigabit Ethernet ports, two 5-port switch groups, and includes Ethernet bypass capability. 2GB of SODIMM RAM are included, there is one microSD card slot, a beeper and a serial port.

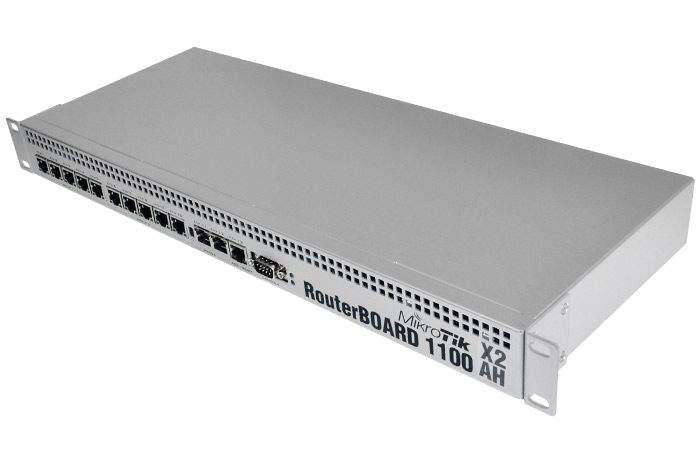

The RB1100AHx2 comes preinstalled in a 1U aluminium rackmount case, power supply and power plug, assembled and ready to deploy.

Product specifications

Details
Product codeRB1100AHx2
CPU nominal frequency1 GHz
CPU core count2
Size of RAM2 GB
ArchitecturePPC
10/100 Ethernet ports0
10/100/1000 Ethernet ports13
MiniPCI slots0
MiniPCI-e slots0
Number of USB ports0
Memory Cards1
Memory card typemicroSD
Power Jack1
802.3af supportNo
PoE inYes
PoE outNo
Supported input voltage10 V - 28 V
Voltage MonitorYes
PCB temperature monitorYes
CPU temperature monitorYes
Dimensions1U case: 44 x 176 x 442 mm, 1200g. Board only: 365g
Operating SystemRouterOS
Operating temperature range-30C to +60C
License level6
Antenna gain DBINo
Current MonitorYes
CPUP202ASSE2KFB
SFP ports0
SFP+ ports0
Number of chains0
Serial portRS232
