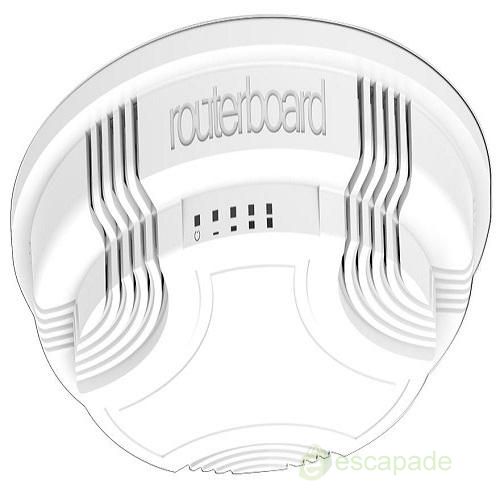

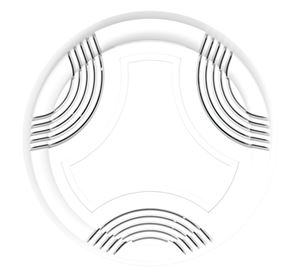

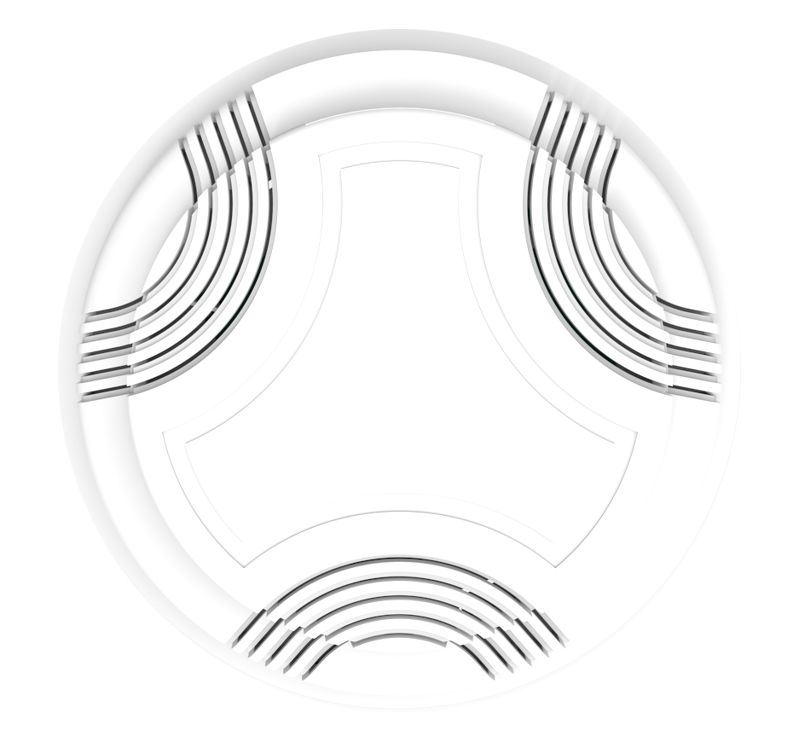

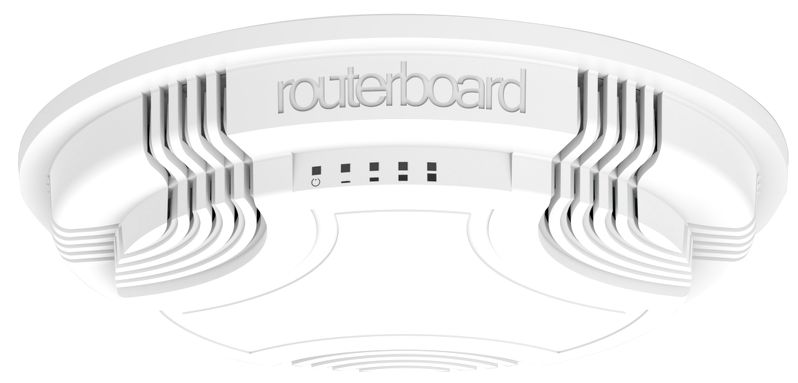

RouterBOARD cAP-2n (ceiling Access Point) is our first 2.4GHz ceiling AP. Inconspicuously designed, it blends into the environment, perfect for hospitality business like hotels, airports, shopping malls etc.
cAP-2n supports 802.11b/g/n and can be powered by PoE. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location.
Unlike traditional controller software, which requires a separate PC/Mac to run, our CAPsMAN runs on any existing RouterBOARD device in your network. No need for a separate controller machine.
Everything is included to get you started, wall/ceiling mount, PoE injector, power adapter and even the screws and screw anchors.
|CPU nominal frequency||400 MHz|
|CPU core count||1|
|Size of RAM||64 MB|
|10/100 Ethernet ports||1|
|10/100/1000 Ethernet ports||0|
|Wireless chip model||AR9331-AL1A|
|Number of USB ports||0|
|Supported input voltage||11 V - 57 V|
|PCB temperature monitor||No|
|CPU temperature monitor||No|
|Dimensions||185mm diameter, 31mm heigh|
|Operating temperature range||-30C to +70C|
|Antenna gain DBI||2|
|Max Power consumption||2W|
|Number of chains||1|
