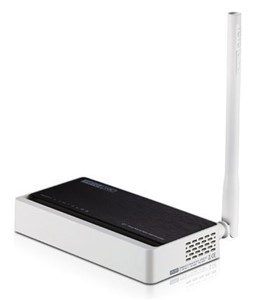

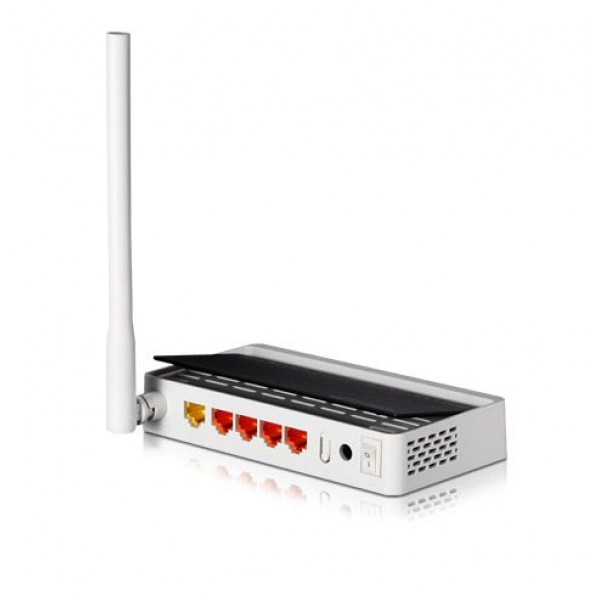

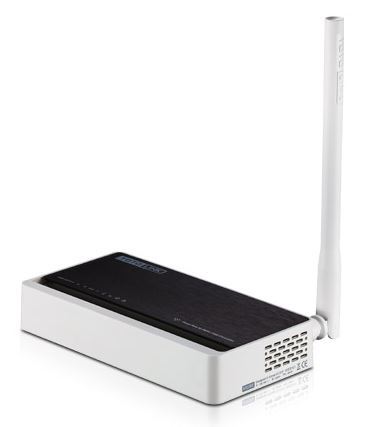

N150RT | Router | Totolink

150M Wireless 802.11n/b/g Broadband Router Chipset: RTL8196E 4M flash 32M sdram with 1pcs 5 dBi fixed antenas in retail package with EU DC P/S(9V 0.5A)support L2TP/Russia PPPoE DUAL WAN Access.
Manufacturer: TOTOLINK
Call for pricing

N150RT is a wireless N Router with 1 high gain antenna which complies with 802.11n and backwards compatible with 802.11b/g devices. It can deliver up to 150Mbps  wireless transmission rate for sharing large files smoothly, and it also provides WPA/WPA2 security standards to prevent unauthorized access so that you will be able to use the best possible encryption regardless of other wireless devices. Besides, the router allows users to access the internet by DHCP Client/ Static IP/ RUSSIA L2TP/ PPTP/ PPPoE dual link and also supports VLAN function according to users?? needs. Generally, it is quite cost-effective product  for either offices or home needs.


Excellent Wireless Network Performance
Complying with the 802.11n standard, it provides a faster speed, further transmission distance and most reliable connection for users to enjoy the best wireless connection in your entire home. Besides, broadband Internet connection sharing over a secure wireless network with numerous computers can be realized easily.



VLAN for Amazing IPTV Experience
A Virtual Local Area Network (VLAN) is a network topology configured according to a logical scheme rather than the physical layout. Hosts in the same VLAN communicate with each other. It can effectively satisfy user?? individual requirement that if one of your family members want to watch IPTV but others want to surf Internet. You can enjoy more amazing interactive entertainment experience by IPTV.?



Outstanding Bandwidth Control with QoS
Unified bandwidth control based on IP/MAC allows optimum bandwidth utilization to discriminate every user. It is very effectively to solve bandwidth-tension while internal users enjoying high bandwidth-consuming application. Assigned specific bandwidth, internal users can be limited better to run applications, which lead to a perfect network performance.



WDS for Optimal Coverage
Features with WDS function, the device allows two or more wireless AP/Router connecting with each other to farther distance. It is very practical for users whose house has many rooms and even living in two different buildings (300m max.) in one residential area without obstacles between them.



Robust Security
The most advanced WPA/WPA2 (TKIP/AES) encryption is provided to ensure the security of wireless connection. Only the users who known the SSID and encryption key can connect to the network, so that users need no worry about being occupied by others. What more, to keep the Internet browsing experience safe, it provides IP/MAC/URL filter to enhanced the security outside and inside the network.


- Complies with IEEE 802.11n and IEEE 802.11g/b standards for 2.4GHz Wireless LAN.
- Up to 150Mbps data rate for Wi-Fi network.
- Supports DHCP Client, PPPoE, static IP, PPTP and L2TP broadband functions and supports dual access.
- Supports SSH server function.
- Provides 64/128-bit WEP, WPA, WPA2 and WPA-Mixed security.
- Connects to secure network easily and fast using WPS.
- Supports VLAN for IPTV.
- Multiple APs allows users to add other two SSIDs for different needs.
- Supports TR-069 protocol for remote centralized management.
- The IP, MAC and URL filtering makes access and time control more flexibly.
- Repeater function allows more PCs to surf Internet.
- QoS: Bandwidth Control based on IP/MAC.
- SSH server function ensures the security of remote login.
- Easy setup simplifies the basic settings of the router.

Firmware - N150RT-V2

ModelDownloadVersionUpdated
N150RT-V2TOTOLINK N150RT-V2.1.1_20150725.zipV2.1.12015-07-25


Datasheet

ModelDownloadVersionUpdated
N150RTN150RT_datasheet_v1.0.pdfver1.02014-07-11


Manual

ModelDownloadVersionUpdated
N150RTN150RT User Manual ver1.0.pdfver1.02014-11-19

Quick Install Guide

ModelDownloadVersionUpdated
N150RTN150RT QIG ver1.5_150209.pdfver1.52015-02-09


ModelDownloadVersionUpdated
N150RTN150RT_Photo003.jpgResolution 1200x12002014-03-18
N150RTN150RT_Photo002.jpgResolution 1200x12002014-03-18
N150RTN150RT_Photo001.jpgResolution 1200x12002014-03-18
