RB2011iL-RM | RouterBoard | Mikrotik

RouterBOARD 2011iL-RM with Atheros 74K MIPS CPU, 64MB RAM, 5xLAN, 5xGbit LAN, RouterOS L4, 1U rackmount case, PSU
Manufacturer: MIKROTIK
Call for pricing

The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

The RB2011iL-RM includes a new feature - power injector on Ethernet port 10 - it can power other PoE capable devices with the same voltage as applied to the unit. Less power adapters and cables to worry about! Maximum load on the port is 500mA. It is powered by the new Atheros 600MHz 74K MIPS network processor, has 64MB of RAM and a Level4 RouterOS license, as well as five Gigabit Ethernet ports and five Fast Ethernet ports for unbeliveable USD 99!

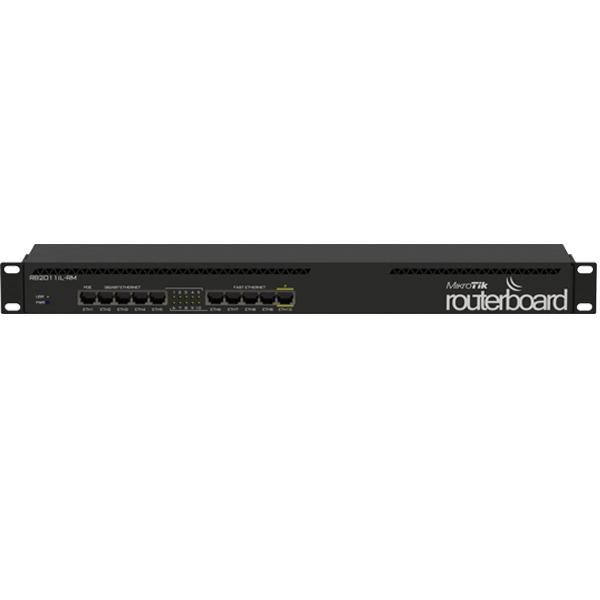

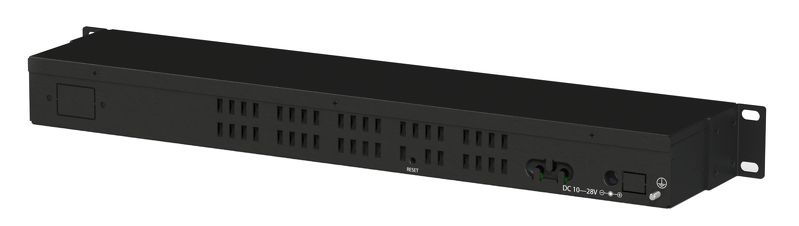

RouterBOARD 2011iL-RM comes with 1U rackmount enclosure and power supply.

Product specifications

Details
Product codeRB2011iL-RM
CPU nominal frequency600 MHz
CPU core count1
ArchitectureMIPS-BE
Size of RAM64 MB
10/100 Ethernet ports5
10/100/1000 Ethernet ports5
MiniPCI slots0
MiniPCI-e slots0
Number of USB ports0
Power Jack1
Supported input voltage8 V - 30 V
PoE outYes
PoE inYes
Voltage MonitorNo
CPU temperature monitorNo
PCB temperature monitorNo
Operating temperature range-35C to +65C
License level4
Antenna gain DBINo
Current MonitorNo
CPUAR9344-DC3A-R
Max Power consumption6W
