RB2011UiAS-IN | Mikrotik | Routerboard

Desktop metal case, 5xEthernet, 5xGigabit Ethernet, USB, LCD, PoE out on port 10, 600MHz CPU, 128MB RAM, RouterOS L5
Manufacturer: MIKROTIK
Call for pricing

The RB2011 is a low cost multi port device series. Designed for indoor use, and available in many different cases, with a multitude of options.

The RB2011 is powered by RouterOS, a fully featured routing operating system which has been continuously improved for fifteen years. Dynamic routing, hotspot, firewall, MPLS, VPN, advanced quality of service, load balancing and bonding, real-time configuration and monitoring - just a few of the vast number of features supported by RouterOS.

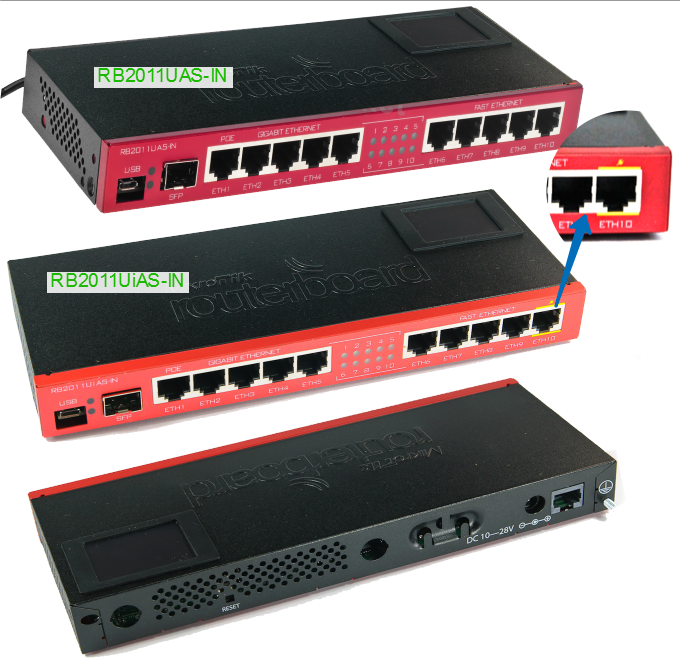

RouterBOARD 2011UiAS-IN, in comparison with RB2011L series, not only has five Gigabit LAN ports and five Fast Ethernet LAN ports, but also has RJ45 serial port, microUSB port and more RAM (128MB instead of 64MB). Also, it has RouterOS L5 license (instead of L4) and nice touchscreen LCD for configuration. SFP cage is also present (SFP module not included!)

Tested and recommended to use with MikroTik SFP modules: S-85DLC05D, S-31DLC20D and S-35/53LC20D (not included)

There is PoE output function for port #10 - it can power other PoE capable devices with the same voltage as applied to the unit. Maximum load on the port is 500mA.

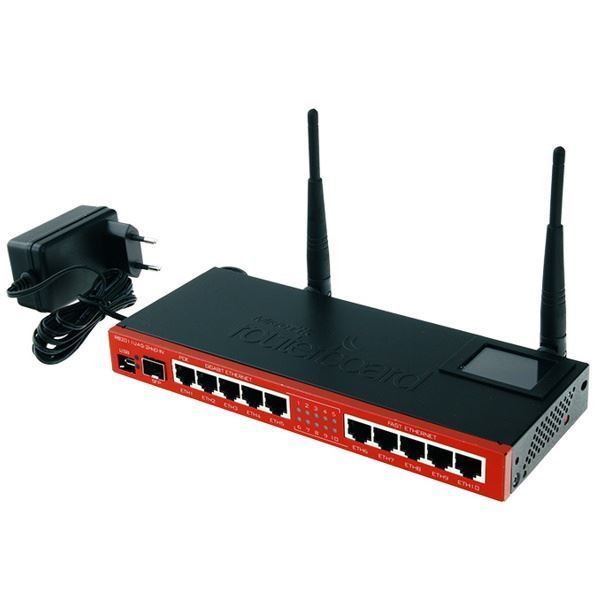

RouterBOARD 2011UiAS-IN comes with desktop enclosure, LCD panel and power supply.

Wall mount kit (product code RBWMK) for network closet is available for purchase as an optional accessory.

Product specifications

Details
Product codeRB2011UiAS-IN
SFP DDMIYes
CPU nominal frequency600 MHz
CPU core count1
Size of RAM128 MB
10/100 Ethernet ports5
10/100/1000 Ethernet ports5
MiniPCI slots0
MiniPCI-e slots0
Number of USB ports1
Power Jack1
802.3af supportNo
PoE inYes
Supported input voltage8 V - 30 V
PoE outYes
Voltage MonitorYes
CPU temperature monitorNo
PCB temperature monitorYes
Dimensions214mm x 86mm for PCB
Operating SystemRouterOS
Operating temperature range-35C to +65C
License level5
Antenna gain DBINo
Current MonitorNo
CPUAR9344-DC3A-R
SFP ports1
SFP+ ports0
USB slot typemicroUSB type AB
Number of chains0
Serial portRJ45
