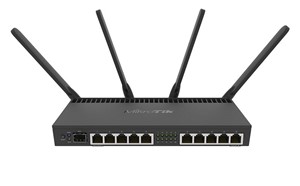

RB4011iGS+5HacQ2HnD-IN

Powerful 10xGigabit port router with a Quad-core 1.4Ghz CPU, 1GB RAM, SFP+ 10Gbps cage, dual band 2.4GHz / 5GHz 4x4 MIMO 802.11a/b/g/n/ac wireless and desktop case
Call for pricing

Specifications

Details
Product codeRB4011iGS+5HacQ2HnD-IN
ArchitectureARM 32bit
CPUAL21400
CPU core count4
CPU nominal frequency1.4 GHz
Dimensions228 x 120 x 30 mm
License level5
Operating SystemRouterOS
Size of RAM1 GB
Storage size512 MB
Storage typeNAND
Tested ambient temperature-40°C to 45°C

Powering

Details
PoE inPassive PoE
PoE outPassive PoE up to 57V
PoE in input Voltage18-57 V
Number of DC inputs2 (DC jack, PoE-IN)
DC jack input Voltage12-57 V
Max out per port output (input > 30 V)420 mA
Max out per port output (input < 30 V)600 mA
Max total out (A)600 mA
Max power consumption44 W
Max power consumption without attachments23 W

Wireless

Details
Wireless 5 GHz number of chains4
Wireless 5 GHz Max data rate1733 Mbit/s
Wireless 5 GHz standards802.11ac MU-MIMO
AC speedAC2000
Antenna gain dBi for 5 GHz3
Wireless 5 GHz chip modelQCA9984
Wireless 2.4 GHz number of chains2
Wireless 2.4 GHz Max data rate300 Mbit/s
Wireless 2.4 GHz standards802.11b/g/n
Antenna gain dBi for 2.4 GHz3
Wireless 2.4 GHz chip modelR11e-2HnD

Ethernet

Details
10/100/1000 Ethernet ports10

Fiber

Details
SFP+ ports1

Peripherals

Details
MiniPCI-e slots1
Serial portRJ45

Other

Details
PCB temperature monitorYes
Voltage MonitorYes

Wireless specifications

5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s33-96
54MBit/s29-81
MCS033-96
MCS728-77
MCS926-72
2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s28-100
11MBit/s28-94
6MBit/s29-96
54MBit/s25-80
MCS026-96
MCS724-79
