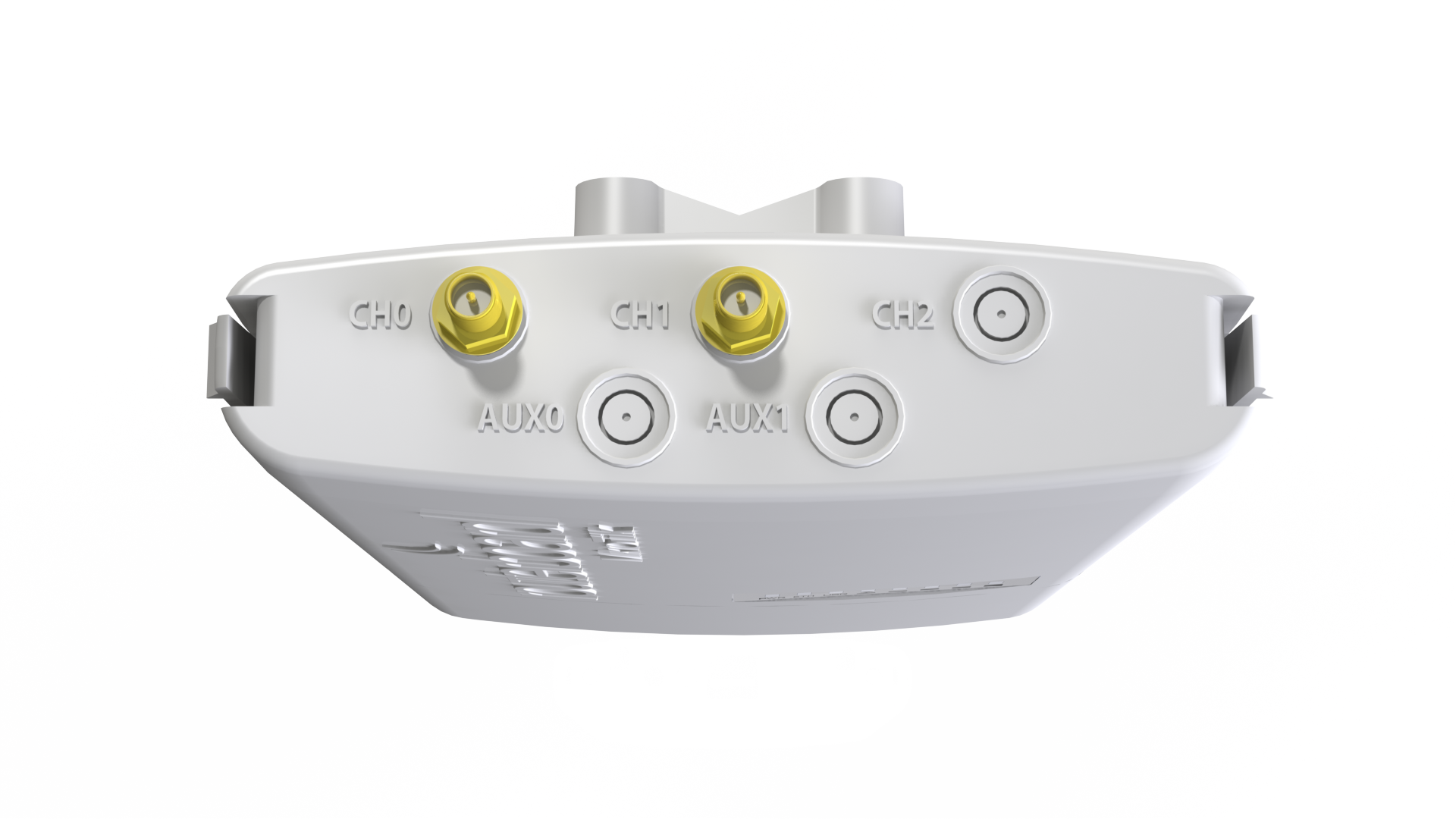

he BaseBox2 in an outdoor 2.4Ghz wireless device, based on our popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.

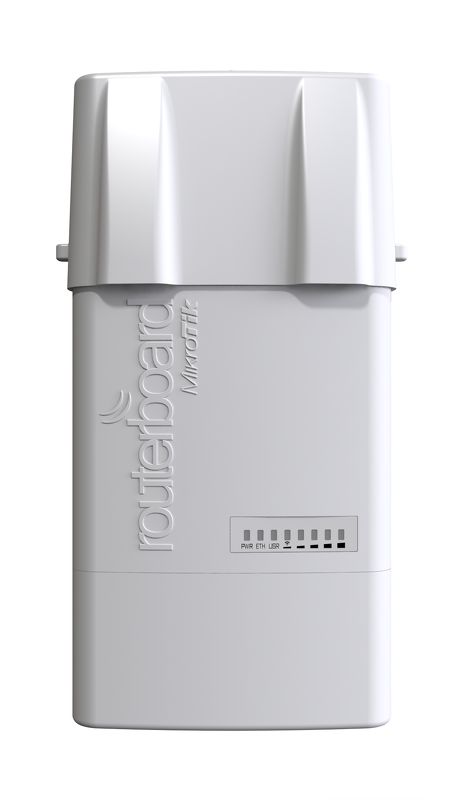

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.
Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit.
|CPU nominal frequency||600 MHz|
|CPU core count||1|
|Size of RAM||64 MB|
|10/100 Ethernet ports||0|
|10/100/1000 Ethernet ports||1|
|Wireless chip model||AR9342-BL1A|
|Number of USB ports||1|
|Supported input voltage||8 V - 30 V|
|PCB temperature monitor||Yes|
|CPU temperature monitor||No|
|Antenna gain DBI||No|
|Max Power consumption||10W|
|USB slot type||USB type A|
|Number of chains||2|
