RB912UAG-5HPnD-OUT | RouterBoard | Mikrotik

RouterBOARD 912UAG with 600Mhz Atheros CPU, 64MB RAM, 1xGigabit LAN, USB, miniPCIe, built-in 5Ghz 802.11a/n 2x2 two chain wireless with two SMA connectors, RouterOS L4, outdoor enclosure, POE, PSU, pole mount, rail mount
Manufacturer: MIKROTIK
Rs 12,000.00

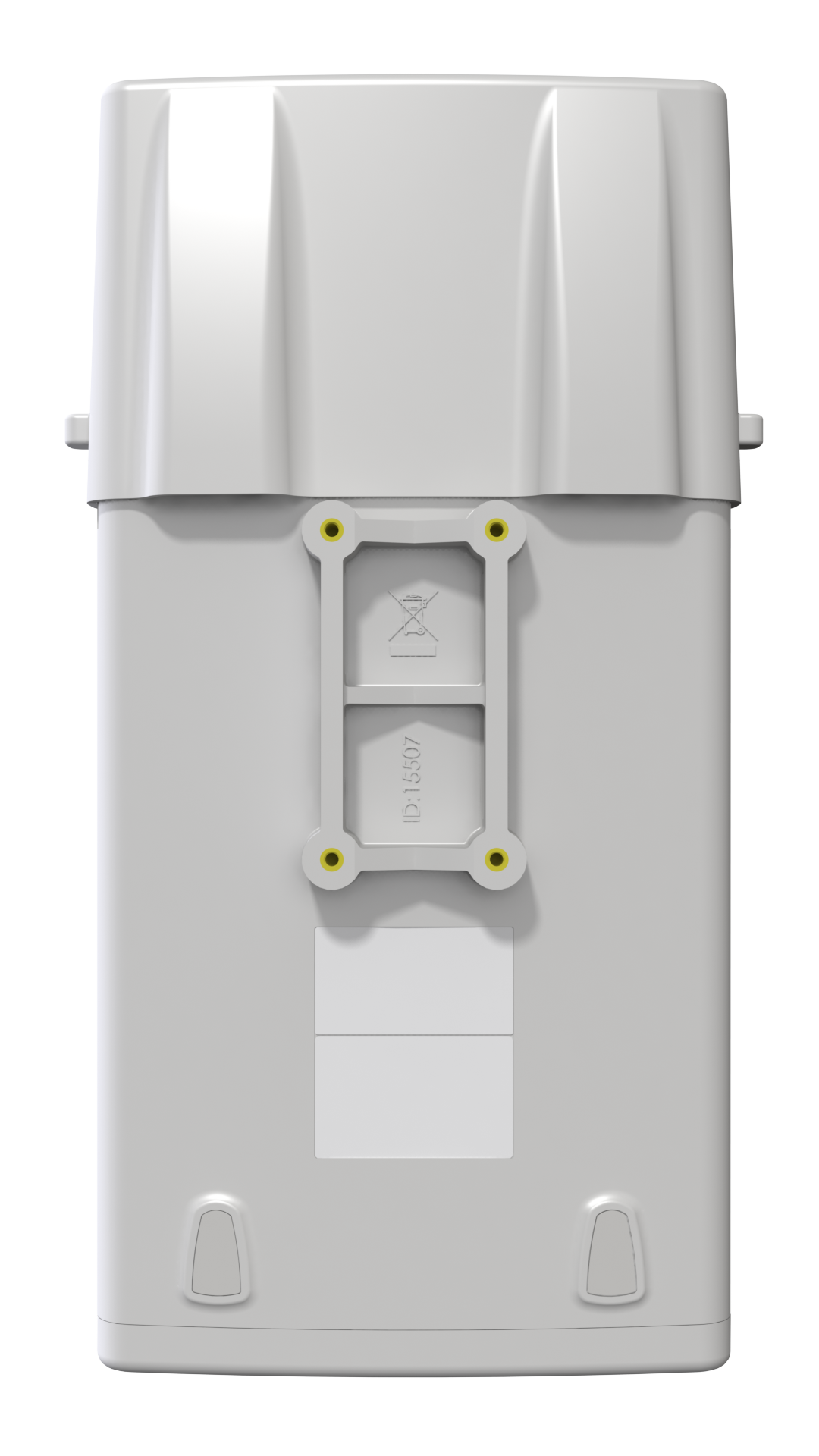

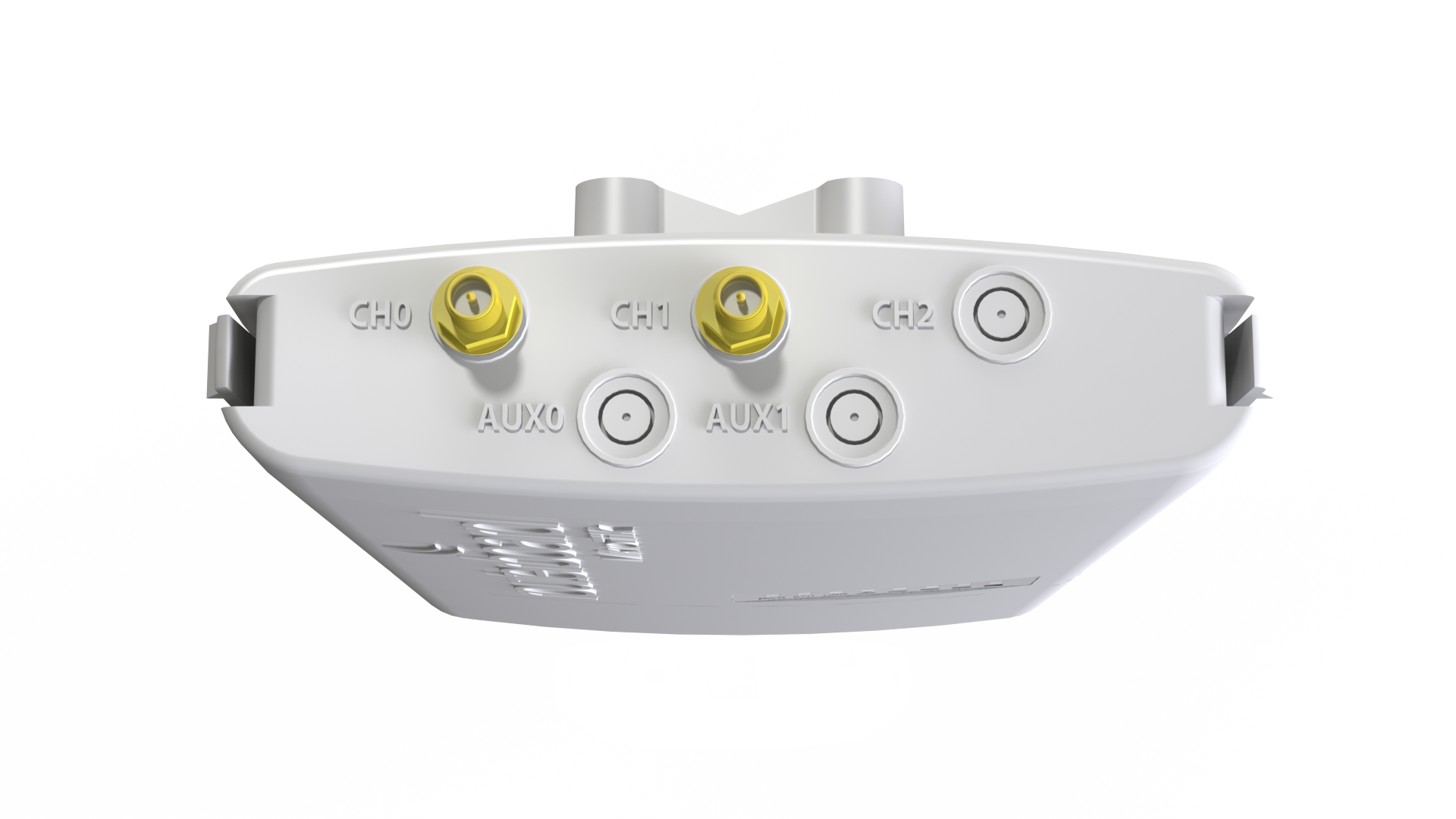

The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device.

The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door.

Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector
and power supply unit.

Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount

Product specifications

Details
Product codeRB912UAG-5HPnD-OUT
CPU nominal frequency600 MHz
CPU core count1
ArchitectureMIPS-BE
Size of RAM64 MB
10/100 Ethernet ports0
10/100/1000 Ethernet ports1
MiniPCI slots0
MiniPCI-e slots1
Wireless chip modelAR9342-BL1A
Wireless standards802.11a/n
Number of USB ports1
Power Jack0
802.3af supportNo
Supported input voltage8 V - 30 V
PoE inYes
PoE outNo
Voltage MonitorYes
CPU temperature monitorNo
PCB temperature monitorYes
Dimensions246x135x50mm
Operating SystemRouterOS
Operating temperature range-30C to +60C
License level4
Antenna gain DBINo
Current MonitorNo
CPUAR9342-BL1A
Max Power consumption14W at 24v
SFP ports0
SFP+ ports0
USB slot typeUSB type A
Number of chains2
