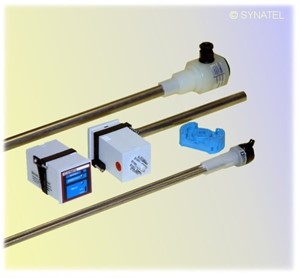

RLL48 MODULAR RESISTANCE LEVEL SYSTEM

RLL48 MODULAR RESISTANCE LEVEL SYSTEM consists of control module (panel mountable) and separate probe unit. Two probes can be used with one control module to provide sequence filling/emptying over given distance. Choice of high level control (RLM48/T) or low level control (RLM48/LT). Adjustable time delay prevents spurious operation from liquid splashing. Version also available for use with carbon black/molasses. (RLM4 - refer to sales desk for more details).
Manufacturer: Synatel
Call for pricing
Consists of control module (panel mountable) and separate probe unit. Two probes can be used with one control module to provide sequence filling/emptying over given distance. Choice of high level control (RLM48/T) or low level control (RLM48/LT). Adjustable time delay prevents spurious operation from liquid splashing.

Supply

110/230V ac
Load
1.5A max, 50 mA dc
Ambient Temp.
-15°C to +45°C for control module
Output
SPCO relay rated @ 2.5A 240V ac non-inductive
Output Mode
RLM48/T - normally ON (high level)
RLM48/LT - normally OFF (low level)
Calibration
Analogue rotary over range of 500 ohms to 30K ohms
Indicators
Output LED
Mounting
11 pin relay base for RLM modules
Protection
IP40 for RLM modules, IP65 typically for probes

Code/Weight

RLM48/T, RLM48/LT - 220g
RLP1 - 600g + probe rod
MRP2 - 300g

Catalogue

RLM48/T Manual
