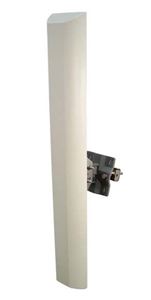

Sector AN-2S14

2.4GHz, 14dBi, 70-degree beamwidth dual salan +/- 45degree Directional antenna including antenna mounting kit
Manufacturer: Altai
Call for pricing
Electrical Specifications
? Frequency Range 2.4 – 2.5 GHz
? Gain 14 dBi
? Polarization Dual Slant ±45°
? Horizontal Beamwidth 70º (-3 dB)
? Vertical Beamwidth 12º (-3 dB)
? VSWR 2 (Max.)
? Front-to-back Ratio -25 dB (Max.)
? Isolation 20 dB (Min.)
? Impedance 50 O
? Power Handling 10 W (cw)
? Lightning Protection DC Ground
? Temperature -40 °C to +60 °C
? Wind Loading Up to 216 km/h (134 mph)
? Radome Color Gray
? Radome Material ABS, UV Resistant
? Weight 1.085 kg
? Dimensions 680 x 112 mm
? Connector 2 x N-female
? Pole Diameter Ø30 to 70 mm
? Mechanical Downtilt ±30° (Max.)
