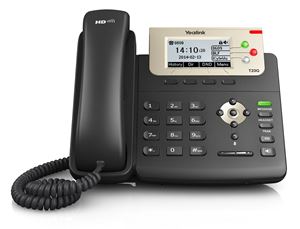

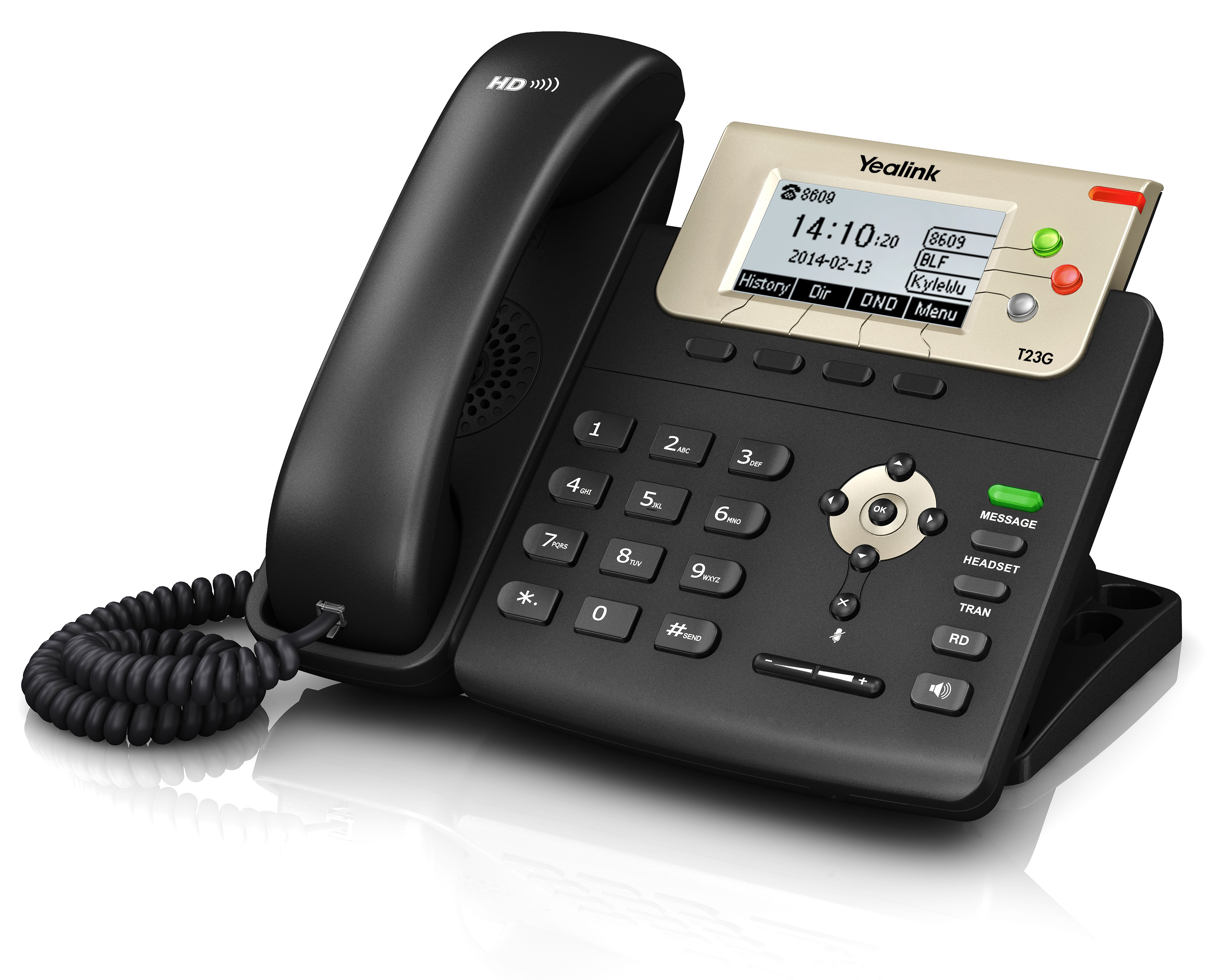

SIP-T23G | Yealink | IP Phone

Yealink SIP-T23G technology enables rich, clear, life-like voice communications.
Manufacturer: Yealink
Call for pricing
Features
> Yealink HD Voice
> Dual-port Gigabit Ethernet
> PoE support
> 132x64-pixel graphical LCD
> Up to 3 SIP accounts
> Supports Dual-color LEDs
> Headset support
> Wall mountable
> IPv6 support
> Paperless design
> Simple, flexible and secure provisioning options
Specification
Audio Features
> HD voice: HD handset, HD speaker
> Wideband codec: G.722
> Narrowband codec: G.711(A/µ), G.729AB,G.726, iLBC
> DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO
> Full-duplex hands-free speakerphone with AEC

> VAD, CNG, AEC, PLC, AJB, AGC


Phone Features
> 3 SIP accounts
> Call hold, mute, DND
> One-touch speed dial, hotline
> Call forward, call waiting, call transfer
> Group listening, SMS
> Redial, call return, auto answer
> Local 3-way conferencing
> Direct IP call without SIP proxy
> Ring tone selection/import/delete
> Set date time manually or automatically
> Dial plan, off hook hot line
> XML Browser, Action URL/URI
> Integrated Screenshots
> RTCP-XR


Directory
> Local phonebook up to 1000 entries
> Black list
> XML/LDAP remote phonebook
> Intelligent search method
> Phonebook search/import/export
> Call history: dialed/received/missed/forwarded


IP-PBX Features
> Busy Lamp Field (BLF)
> Bridged Line Apperance(BLA)
> Anonymous call, anonymous call rejection
> Hot-desking, emergency call
> Message Waiting Indicator (MWI)
> Voice mail, call park, call pickup
> Intercom, paging, music on hold
> Call completion, call recording


Display and Indicator
> 132x64-pixel graphical LCD with backlight
> LED for call and message waiting indication
> Dual-color (red or green) illuminated LEDs for line status information
> Intuitive user interface with icons and soft keys
> National language selection
> Caller ID with name, number


Feature keys
> 3 line keys with LED
> 5 features keys: message, headset, redial, tran,hands-free speakerphone
> 6 navigation keys
> Volume control keys


Interface
> Dual-port Gigabit Ethernet
>Power over Ethernet (IEEE 802.3af), class 2
> 1xRJ9 (4P4C) handset port
> 1xRJ9 (4P4C) headset port


Other Physical Features

> Wall mountable
> External universal AC adapter (optional):AC 100~240V input and DC 5V/600mA output
> Power consumption (PSU): 0.72-1.56W
> Power consumption (PoE): 0.96-1.98W
> Dimension(W*D*H*T):209mm*188mm*150mm*41mm
> Operating humidity: 10~95%
> Operating temperature: -10~50°C


Management
> Configuration: browser/phone/auto-provision
> Auto provision via FTP/TFTP/HTTP/HTTPS
for mass deploy
> Auto-provision with PnP
> Zero-sp-touch TR-069

> Phone lock for personal privacy protection

> Reset to factory, reboot

> Package tracing export, system log


Network and Security
> SIP v1 (RFC2543), v2 (RFC3261)
> NAT transverse: STUN mode
> Proxy mode and peer-to-peer SIP link mode
> IP assignment: static/DHCP
> HTTP/HTTPS web server
> Time and date synchronization using SNTP
> UDP/TCP/DNS-SRV(RFC 3263)
> QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
> SRTP for voice
> Transport Layer Security (TLS)
> HTTPS certificate manager
> AES encryption for configuration file
> Digest authentication using MD5/MD5-sess
> OpenVPN, IEEE802.1X
> IPv6


Package Features
> Qty/CTN: 10 PCS
> G.W/CTN: 12.6kg
> Giftbox size: 215mm*200mm*118mm
> Carton Meas: 615mm*436mm*208mm
