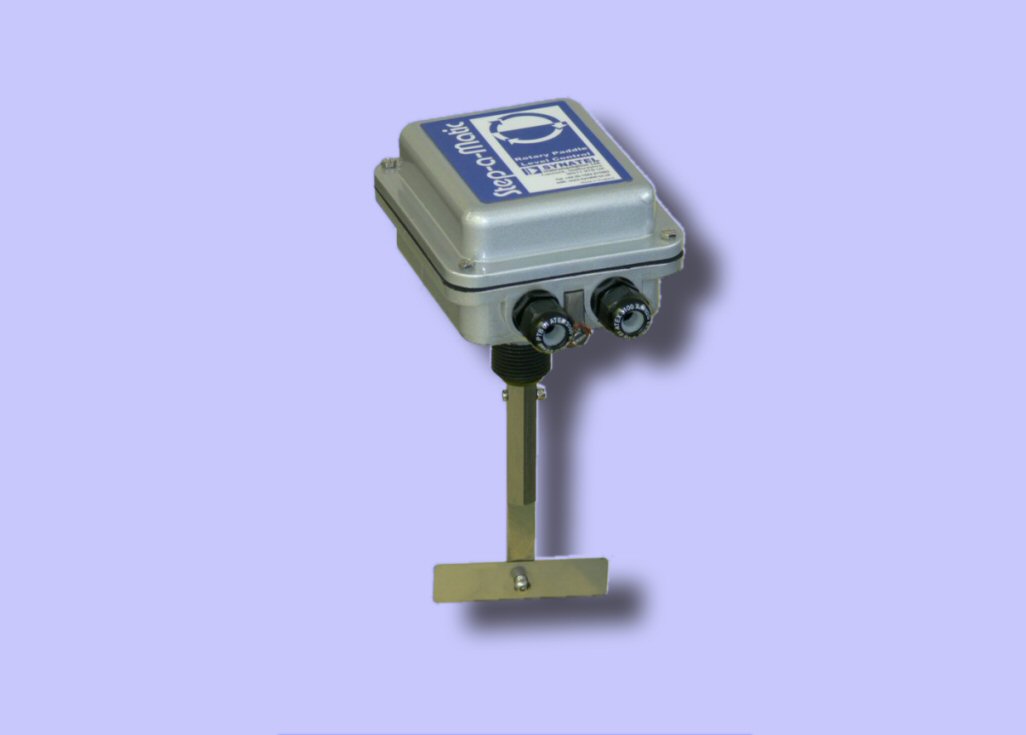

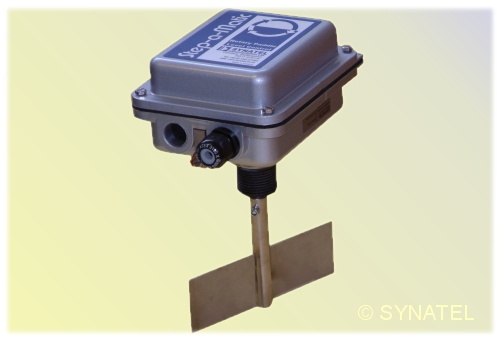

STEP-A-MATIC SML1A ROTARY PADDLE LEVEL PROBE | LEVEL CONTROL RANGE | Synatel

The Step-a-Matic is a patented rotary paddle level probe using a new and unique gearless & clutchless drive system. The Stepamatic utilises a direct drive stepper motor eliminating the need for gearboxes & clutches, and makes the drive virtually indestructible It also allows the motor to rotate in both direction, to avoid compaction of light material. Variable torque setting allows one paddle to suit virtually all applications, and paddles can be extended upto 2m in length. Torque & Rotation are monitored for fail-to-safe operation. ATEX 1D Explosive Dust Hazard use.
Manufacturer: Synatel
Call for pricing
The Step-a-Matic is a patented rotary paddle level probe using a new and unique gearless & clutchless drive system.
The Step-a-Matic uses a unique stepper motor drive instead of the usual synchronous motor. This utilises a direct drive eliminating the need for gearboxes & clutches, and makes the drive virtually indestructible, It also allows the motor to rotate in both direction, to avoid compaction of light material. The paddle also 'shakes at the end of it's rotation cycle to discard clinging material. Variable torque setting allows one paddle to suit virtually all applications, and paddles can be extended upto 2m in length. Torque & Rotation are monitored for fail-to-safe operation.
Supply
24V dc, 90-260V ac 50/60Hz
Load
6VA max ac, 50 mA max dc
Supply fuse/cct breaker
5A max.
Ambient Temp.
-10°C to +50°C
Output
SPCO relay rated @ 2.5A 240V ac non-inductive
Output Mode
Switch selectable for normally ON (high level),
or normall OFF (low level)
Calibration
Electronic torque control potentiometer.
Indicators
LED shows power ON.
Time delay
Adjustable via potentiometer. 0-30 sec,
material arriving & material leaving.
Mounting
1" BSP
Protection
IP65
Weight

Step-a-Matic SML1 - 2Kg
Twin blade paddle - 200g
1mtr extension - 200g
2mtr extension - 325g
