TA200 Analog Telephone Adapter | Yeastar

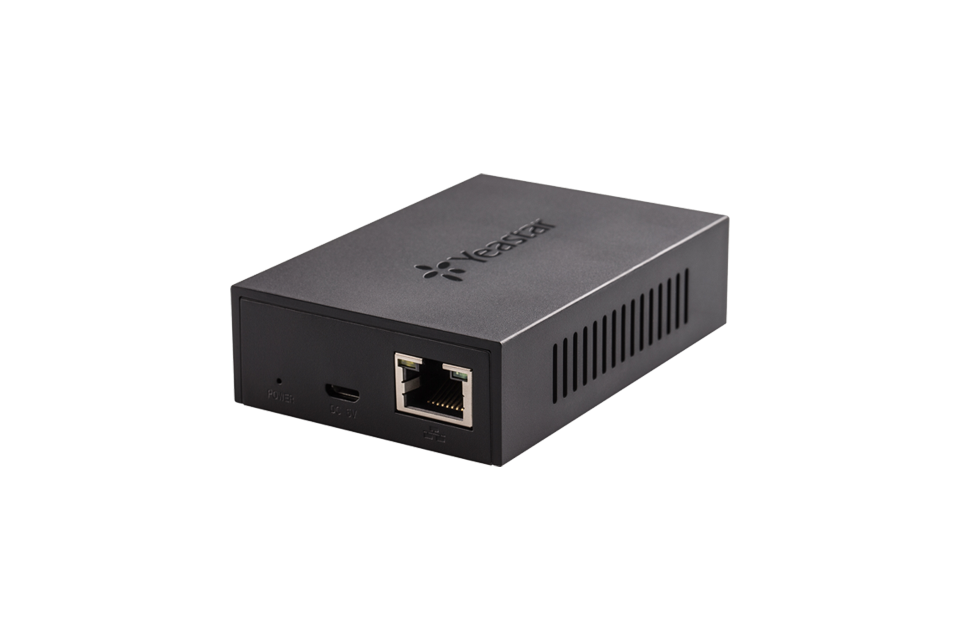

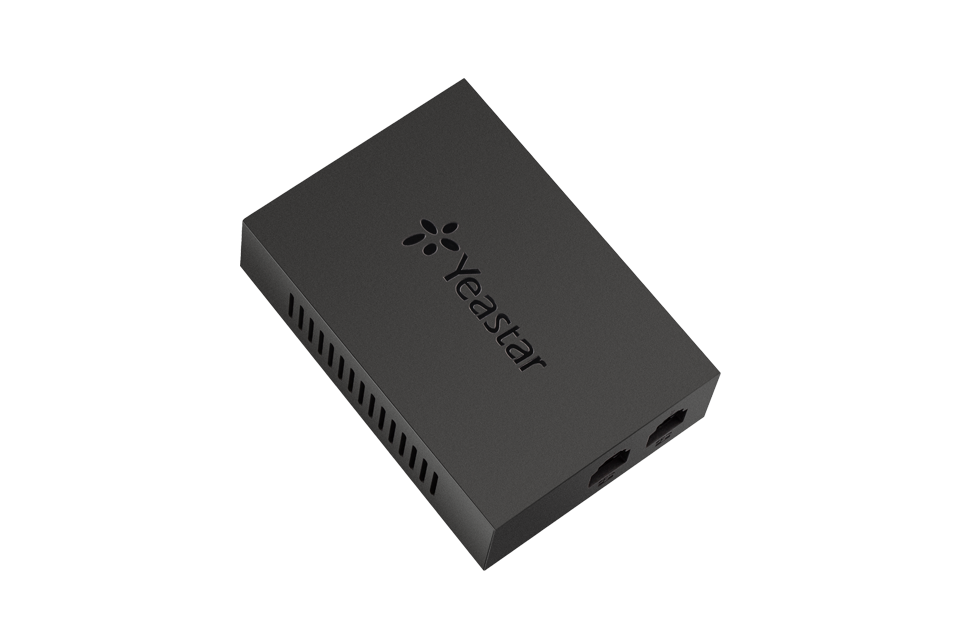

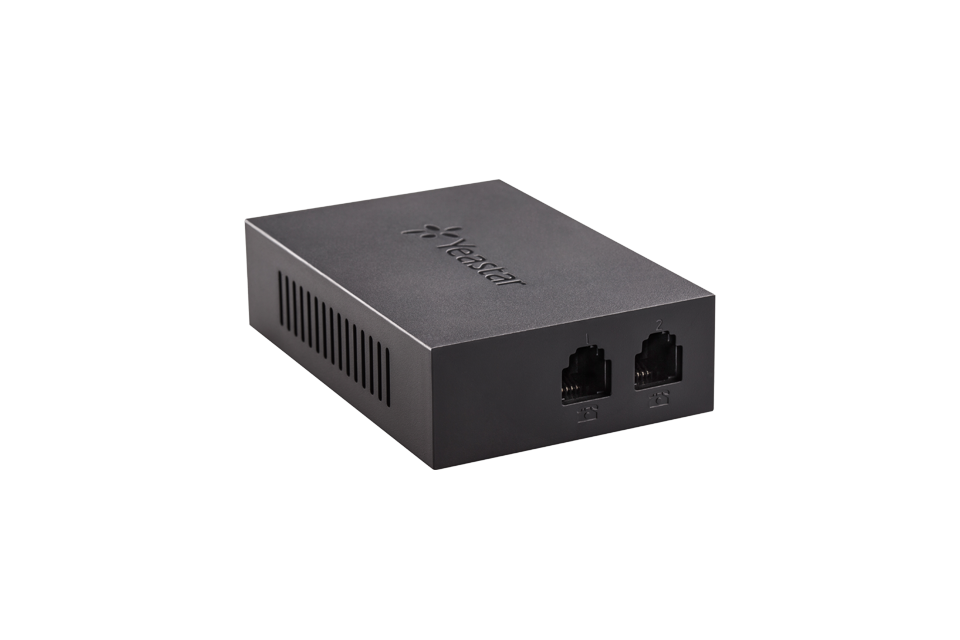

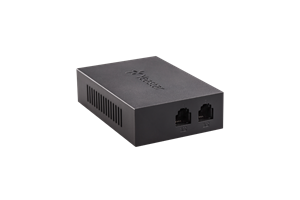

Yeastar TA200 is an Analog Telephone Adapter that provides 2 analog interfaces for residential users and small business to convert existing analog equipment to IP-based networks cost effectively.
Manufacturer: Yeastar
Call for pricing
ta200 features
ta100 ta200 rich calling features

Rich Calling Features

TA200 allows users to connect 2 analog phones or fax machines to enable VoIP services. Features like call waiting, call forwarding, call transfer, call conference, Direct IP Dialing, Do Not Disturb, and flexible dial plan are essential telephony features for home business and small business.

Miniature and USB Powered

Featuring small form factor, TA200 can save space when placing on the desk. Micro USB port equipped, TA200 also can be powered by and directly connected to the USB port of PC and IP-PBX.

ta100 ta200 mini usb powered
easy-management

Cost-Effective Analog Telephone Adapter

  • Connect analog phones and fax machines to VoIP network
  • Protect investment in existing analog telephones
  • Migrate to IP voice with the easy-to-install ATA

Simple Management

On boot-up, TA200 supports Auto Provision FTP/TFTP/HTTP provisioning servers. It is manageable from any Web browser with intuitive Web GUI. The flexible configuration also allows basic configuration on telephone keypad with voice prompt.

ta100 ta200 simple management

Ports2 FXS Ports
Telephony InterfacesRJ11
LAN1 10/100Mbps
Micro USB Port1
ProtocolSIP (RFC3261)
TransportUDP, TCP, TLS, SRTP
CodecG.711 (alaw/ulaw), G.729A/B
Voice CapabilityITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
DTMF ModeRFC2833, SIP Info, In-band
FaxT.30, T.38, Pass-through
QoSDiffServ, ToS, 802.1 P/Q VLAN tagging
NetworkDHCP, OpenVPN, PPPoE, Static Route, VLAN
Network ProtocolFTP, TFTP, HTTP, HTTPS, SSH
Management ProtocolTR-069*
SignalingFXS Loop Start, FXS Kewl Start
Caller IDBELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect MethodsBusy Tone, Polarity Reversal
PowerDC 5V 1A
Dimensions (L × W × H) (mm)85 x 58 x 24
Humidity10-90% non-condensing
Storage Range-20°C to 65°C, -4°F to 149°F
Operation Range0°C to 40°C, 32°F to 104°F
MountingDesktop
CompatibilityInteroperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
