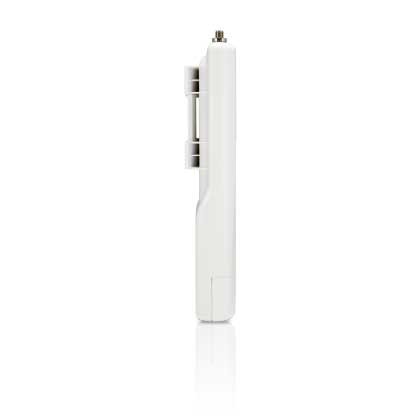

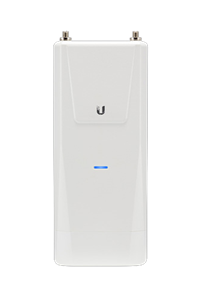

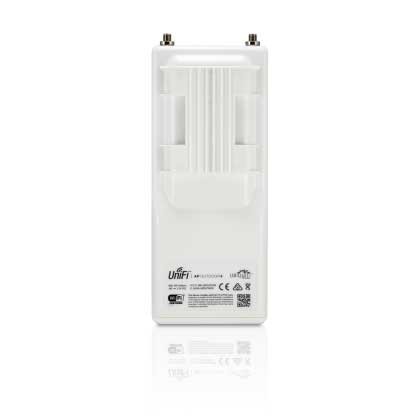

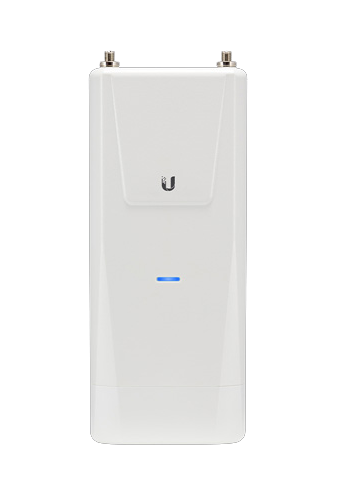

UAP Outdoor Plus ( UAP-OUTDOOR+ ) | Ubiquiti

UAP Outdoor Plus supports 802.11n MIMO, with speeds of up to 300 Mbps and a range of up to 183 m (600 ft).
Manufacturer: Ubiquiti Networks
Call for pricing

Sleek Industrial Design

Each UniFi® AP-Outdoor model can be seamlessly mounted on any wall or pole (mounting kits included). The LED indicator simplifies deployment and configuration.

Innovative Active RF Filtering

The UniFi® AP-Outdoor+ model features patented Multi-Lane®RF technology, which isolates signals within the operating channel to provide superior capacity and throughput in high-density environments.

Amazing Wireless Coverage

Each UniFi® AP-Outdoor model supports up to 300 Mbps with 2x2 MIMO technology and offers an outdoor range of up to 183 m. A secondary Ethernet port can be used for bridging.

Scalability for Thousands

With its software-based capabilities, the UniFi® virtual control plane allows for unlimited scalability under one centralized controller.

Built to Last Outdoors

The durable, weatherproof case withstands outdoor conditions, including wind, rain and snow.

Versatile Antenna Options

Attach the included external antennas or connect the UniFi®AP-Outdoor to a dual-polarity antenna – an airMAX® Sector or Omni — to increase gain.

No Software Fees

The UniFi® Controller software is bundled with the UniFi AP hardware at no extra charge — no separate software, licensing or support fee.

Scalable Enterprise Wi-Fi Management

The UniFi® Controller software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers.

Advanced Software Features

Intuitive and Robust Configuration, Control and Monitoring
Instantly provision and configure thousands of UniFi®APs. Quickly manage system traffic.

Custom Maps and Google Maps
Upload custom map images or use Google Maps for a visual representation of your wireless network.

WLAN Groups
Take advantage of WLAN groups for flexible configuration of large deployments and enable wireless connection between APs to extend range.

Model Comparison

UAP
UAP
UAP-LR
UAP-LR
UAP-PRO
UAP-PRO
UAP-Outdoor5
UAP-Outdoor5
Frequency2.4 GHz2.4 GHz2.4 GHz, 5 GHz5 GHz
2.4 GHz Throughput300 Mbps300 Mbps450 MbpsN/A
5 GHz ThroughputN/AN/A300 Mbps300 Mbps
Range122 m183 m122 m183 m
