With the latest face identification algorithm and streamlined technology, it can hold 800 face templates without dividing into groups and complete verification in less than 1 second.

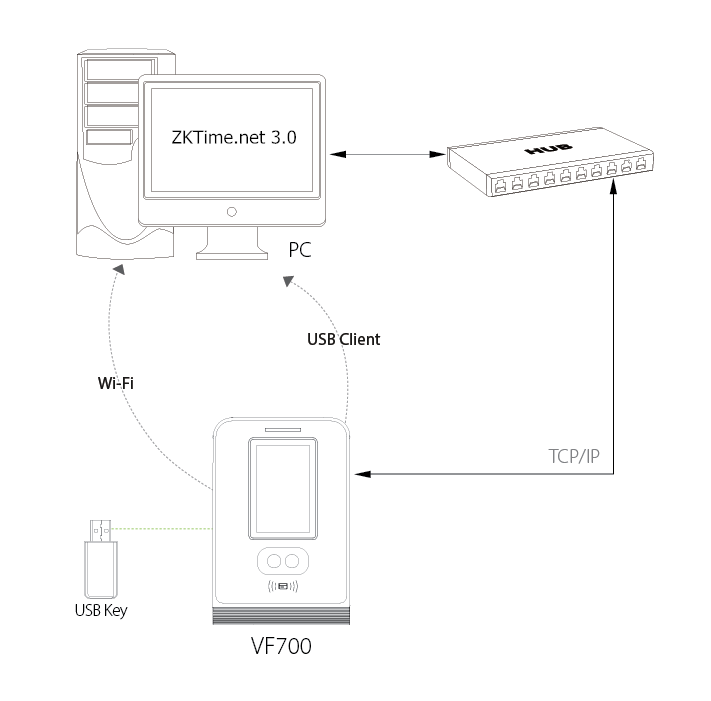

Communicating via Wi-Fi(Optional), TCP/IP, and USB (host and client), it can ensure a smooth connection and data transfer. All the settings can be easily done on 3-inch touch screen. It has been elaborately designed and finely processed to match your slap-up office perfectly.
• Elegant ergonomic design.
• Wi-Fi(Optional), TCP/IP, and USB (host and client) communication.
• 3-inch touch screen, T9 Input, and 9 Digit User ID.
• Infra-red optical system enables user-identification in poorly lit environment.
• Optional Mifare card module.
• Professional face identification algorithm
Technical Specifications |
Display | 3-inch Touch Screen |
Face Capacity | 800(Standard)/1200(Optional)(1:N) |
ID Card Capacity | 10,000 |
Logs Capacity | 100,000 |
Communication | TCP/IP, USB (host and client) |
Standard Functions | ID card,Automatic Status Switch, Self-Service Query, Work Code, T9 Input, 9 Digit User ID, DST, Scheduled-bell, Short Message and Photo ID |
Optional Function | Mifare Card, Wi-Fi |
Power Supply | 12V/1.5A |
Verification Speed | =1S |
Operating Temperature | 0-45 °C |
Operating Humidity | 20%-80% |
Dimensions | 104.7 × 160 × 36 mm (L × H × D) |
- Overview
- Function
- Specification
- Configuration
- Package
- Download
VF700
0.45MBData Sheet2015-04-27
