A8

The Altai A8 has been designed to provide industry best coverage and capacity without complicated networking protocols or the need for a high density of transmitters.
Manufacturer: Altai
Call for pricing

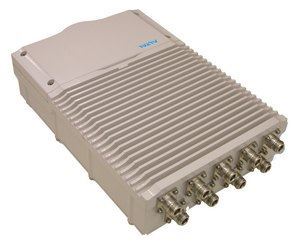

Altai A8

Super WiFi Base Station

The Altai A8 Super WiFi Base Station is the world’s leading WiFi outdoor access point optimized for maximum coverage from a minimum number of installation sites. The Altai A8 has been designed to provide industry best coverage and capacity without complicated networking protocols or the need for a high density of transmitters.

The A8 is a multi-radio base station utilizing smart antenna technologies and a patented signal processing algorithm to provide the industry’s best coverage per base station, especially in non-line-of sight (NLOS) environments. The multiple antennas of the A8 can be configured to provide coverage that is optimized for area, pattern and elevation.

Using up to 80% fewer access points than other WiFi systems to cover the same area enables less complex network design and provides lower latency for improvement in handling real-time applications such as VoIP and video streaming.

Wireless Interface
802.11b/g Radio
• Operating Mode Access Point
• Standard IEEE 802.11b/g
• Operating Frequency 2.412 – 2.472 GHz (Ch 1-13)
• Transmit Power 5 – 25 dBm in 1 dB step
• Receiver Sensitivity (Typical)
802.11b 11 Mbps -90 dBm
1 Mbps -96 dBm
802.11g 54 Mbps -74 dBm
6 Mbps -92 dBm
• Connect up to 8 Antennas
• Congestion Avoidance
• Bandwidth Control – Airtime/ Throughput/ VAP/Client
• Altai AirFi™ Bandwidth Control*
• Transmit and Receive Diversity
• Automatic Channel Selection
• Site Survey/ Channel Scan
802.11a Radio
• Operating Mode Point to Point Bridging
Point to Multi-point Bridging
(Up to 4 peers)
• Standard IEEE 802.11a
• Operating Frequency 5.15 – 5.35 GHz
5.47 – 5.725 GHz
5.725 – 5.825 GHz
• Transmit Power 24 dBm (Max.)
• Data Rate 54, 48, 36, 24,18,12,9,6Mbps
• Receiver Sensitivity (Typical)
54 Mbps -73 dBm
6 Mbps -90 dBm
• Turbo Mode Support
• Dimension 290 x 210 x 89 mm
• Weight 4 kg (Unit Weight) /
6.5 kg (Gross Weight)
• Mounting Pole or Wall-mounted
• Web-based Administration Tool
• CLI-based Administration Tool (Telnet and Console)
• SNMP v1/ v2c, Altai MIB
• SNMP Manager Access Control List
• Remote Firmware Upgrade (HTTP, FTP)
• Performance Monitoring
• WiFi Client Association Status/ Bad Client Disassociation
• Customized Configuration File
• Syslog Support
• TR-069 Support*
802.11b/g
• Authentication Open system, Shared key,
WPA/ WPA-PSK
WPA2/ WPA2-PSK
802.1x (PEAP, TLS, TTLS)
• Encryption WEP, TKIP, AES
• Rogue AP Detection
• MAC based Access Control
• SSID Suppression
• Inter/ Intra-VAP Client Communication Control
802.11a
• Encryption WEP, AES
2.4 GHz Antenna
• External Antenna 14 dBi (Max.) Sector
• Frequency 2.4 – 2.5 GHz
• Polarization Dual Linear ±45°
• 3-dB Horizontal Beamwidth 70° ±3°
• 3-dB Vertical Beamwidth 12° ±2°
• VSWR 2 (Max.)
• Impedance 50 G
• Front-to-back Ratio 25 dB (Max.)
• Isolation Between Ports 20 dB (Min.)
• Antenna Connector 8 x Dual N-female
5 GHz Antenna (separate orderable item)
• External Antenna 18 dBi Panel/ 9 dBi Omni
• Antenna Connector 1 x N-female
• 16 Multiple SSID/ Virtual AP
• User Limit Per SSID
• VLAN / Configurable Management VLAN
• DHCP Client/ Server/ Relay
• Dynamic NAT
• PPPoE Client, PPPoE Pass-through
• VPN Pass-through
• Switch and Gateway Mode
• VLAN trunking/ WDS
• 10/100 Mbps Ethernet Port
• Radius Server Per VAP/ Backup Radius Server Support
• Multicast Rate Filter/ IGMP Snooping
• Link Integrity/ Backhaul Link Self Healing/ Safe Mode
• WMM/ Port-based Prioritization
• Power Source PoE Injector
• Power Consumption 20 W (Typical) / 58 W (Max.)
• Operating Temperature -40 °C to +60 °C (Ambient)
0 °C to +40 °C (PoE Injector)
• Storage Temperature -40 °C to +85 °C
• Humidity 5 to 100% (Condensing)
• Lightning Protection EN 61000-4-5
• Wind Loading 100 mph (Operational)
135 mph (Survival)
• Weatherproof IP67 Compliant
• FCC/ CE/ Others
