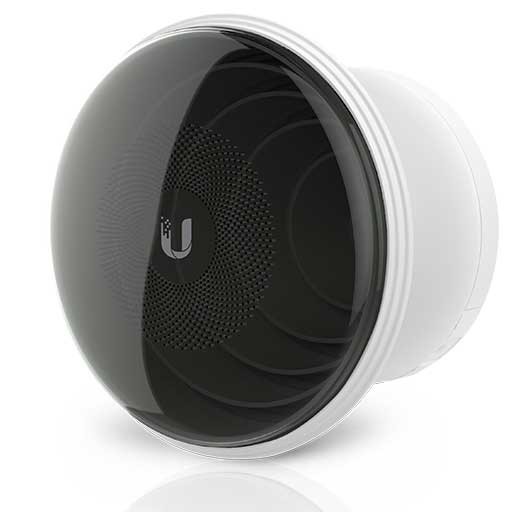

Dreams Network | Ubiquiti airMAX IsoStation AC 5 GHz Horn Antenna IS-5AC

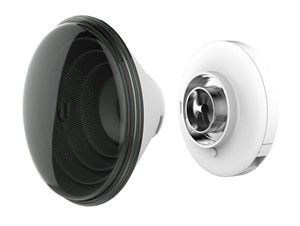

The antenna horn is interchangeable and helps with beam-shaping for specific deployment and environment needs. The IsoStationTM also gets maximum gain out of the smallest footprint.

Beam Performance Perfected

The IsoStationTM can use a variety of horn antenna sectors designed for increased co-location performance without sacrificing gain. Its unique beam performance and superb co-location characteristics allow for a higher density of sectors than traditional sector technology.

Enhanced Co-Location

Asymmetrical horn antenna options (60° and 90°) have naturally attenuated side lobes and extremely low back radiation, and they offer industry-leading front-to-back ratio and low side lobe radiation. Symmetrical horn antennas (30° and 45°, the default) are ideal for cluster sector installations with high co-location requirements.

Improved Noise Immunity

IsoStationTM blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

High MAC Efficiency

High MAC efficiency provides ±80% PHY RATE throughput.

Management Wi-Fi Radio

The IsoStationTM AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Mechanical
Dimensions	Without horn: 131 x 131 x 65 mm (5.2 x 5.2 x 2.6") With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9")
Weight	Without horn: 408.2 g (0.9 lb) With horn: 725.7 g (1.6 lb)
Mounting	Pole mount kit (Included)
Wind loading	36N at 200 km/h (8.09 lbf at 125 mph)
Wind survivability	200 km/h (125 mph)
Hardware
Networking interface	(1) GbE RJ45 port
Power method	Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply	24V, 0.5A gigabit PoE adapter (Included)
Max. power consumption	8.5W
Supported voltage range	20—27V DC
LED	(1) Power
Ambient operating temperature	-40 to 70 C (-40 to 158 F)
Ambient operating humidity	5 to 95% noncondensing
Certifications	CE, FCC, IC
System
Gain	14 dBi
Beamwidth	45° (Default horn)
Operating Frequency (MHz)
Worldwide	5150-5875 MHz
USA U-NII-1 U-NII-2A U-NII-2C U-NII-3	5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz
Management Radio (MHz)
Worldwide	2412 - 2472 MHz
US/CA	2412 - 2462 MHz
