  2. APC - BE400-GR

APC - BE400-GR

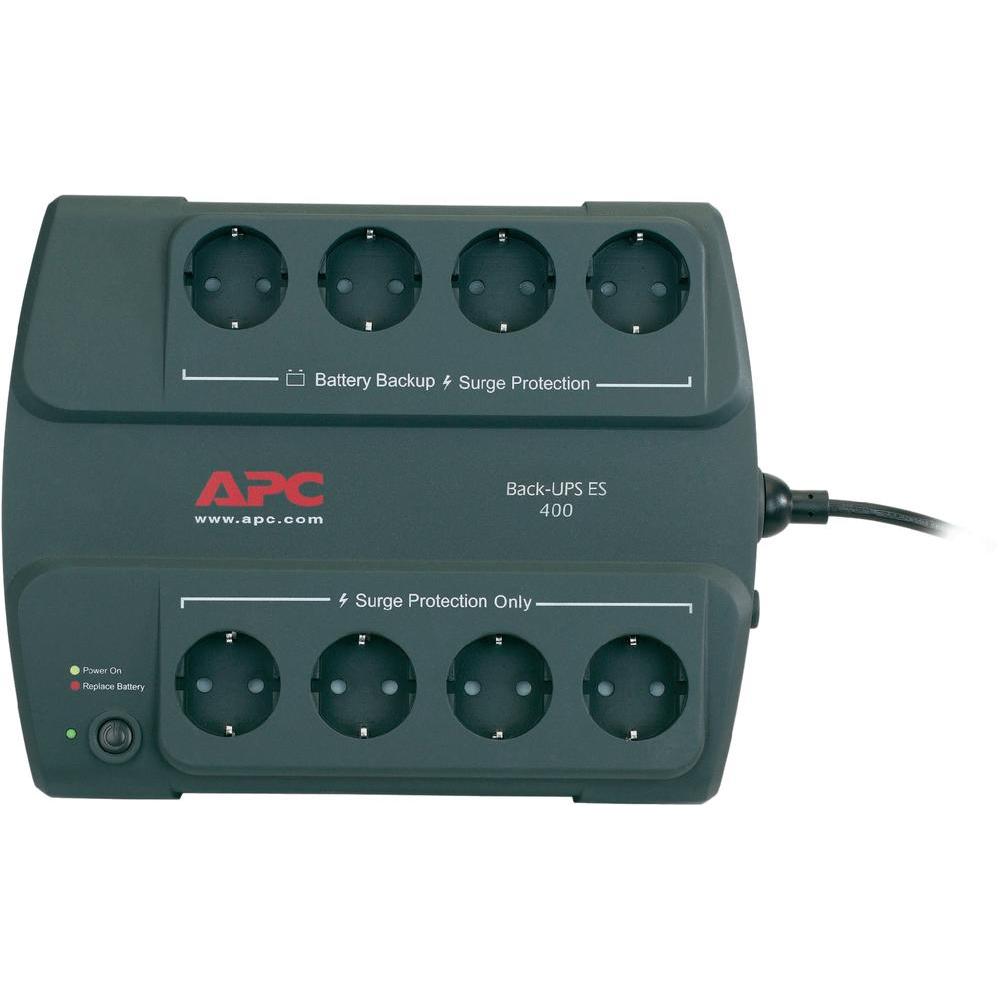

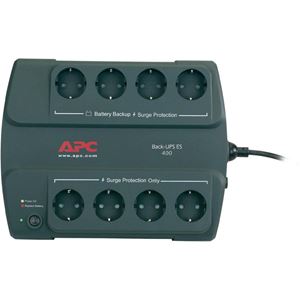

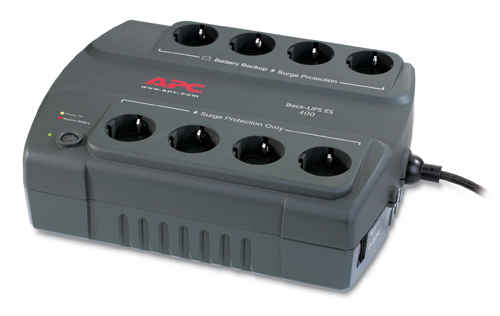

Picture of APC - BE400-GR
APC Back-UPS,240 Watts /400 VA,Input 230V /Output 230V
Manufacturer: APC
Be the first to review this product
Call for pricing

Output

Output Power Capacity
240 Watts / 400 VA
Max Configurable Power
240 Watts / 400 VA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
47 - 63 Hz
Topology
Standby
Waveform Type
Stepped approximation to a sinewave
Output Connections
(4) Schuko CEE 7 (Battery Backup)Schuko CEE 7
(4) Schuko CEE 7 (Surge Protection)Schuko CEE 7

Input

Nominal Input Voltage
230V
Input Frequency
50/60 Hz
Input Connections
Schuko CEE 7/7PSchuko CEE 7/7P
Cord Length
1.83 meters
Input voltage range for main operations
180 - 266V
Maximum Input Current
10A
Input Breaker Capacity
10  A

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
16 hour(s)
RBC™ Quantity
1
Runtime Graph
Hover over the line on the graph above to view the runtime at any desired load
Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.

Energy Use/Efficiency

LoadEfficiency
25%97.6%
50%98.2%
75%98.4%
100%98.6%
Hover over the line on the graph above to view the efficiency at any desired load
Curve fit to measured efficiency data. All measurements taken in normal operating mode, at typical environmental conditions, with nominal electrical input and balanced resistive load (PF = 1.0) output.

Communications & Management

Control panel
LED Status display with On Line : On Battery
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating
310 Joules
Filtering
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100 Base-T Ethernet (RJ-45 connector)

Physical

Maximum Height
86.00 mm
Maximum Width
230.00 mm
Maximum Depth
285.00 mm
Net Weight
5.40 KG
Shipping Weight
5.60 KG
Shipping Height
132.00 mm
Shipping Width
300.00 mm
Shipping Depth
366.00 mm
Master Carton Units
2.00
Master Carton Dimensions (Length x Width x Height)
380 mm
Master Carton Weight
12.20 KG
Color
Charcoal
SCC Codes
1073130423336 4
Units per Pallet
48.00

Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-15000 meters
Storage Temperature
0 - 40 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
45.00 dBA

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
User Manual
Type
Size
Updated On
Back-UPS ES 400/550/700 230 V (Manual)
PDF
301KB

Back-UPS ES 400/550/700 230V User Manual
Agency Approval
Type
Size

PCBC (Poland) approval for Back-UPS ES
PDF
319KB


PCBC (Poland) approval for Back-UPS ES model BE400xxxxxxxxxx, BE550xxxxxxxxxx and BE700xxxxxxxxxx
Back-UPS ES 400VA 230V
PDF
156KB


EMC approval for Back-UPS ES (model BE400-xx)
RoHS Certification of Compliance - UPSs
PDF
46KB


RoHS Certification of Compliance - UPSs
Environmental Profile
Type
Size

ePEP - Product Environmental Profile 1 for Back-UPS
PDF
463KB


Product Environmental Profile 1 for the Back-UPS Product Range
EoLi - Back-UPS Profile 1
PDF
407KB


End of Life Instruction (EoLI) for the Back-UPS Product Range
Brochure
Type
Size

Back-UPS BE400-GR Specification Sheet
PDF
158KB


Two page brochure with top level features, benefits and specs.
Back-UPS BE400-GR Specification Sheet
PDF
159KB


Two page brochure with top level features, benefits and specs.
