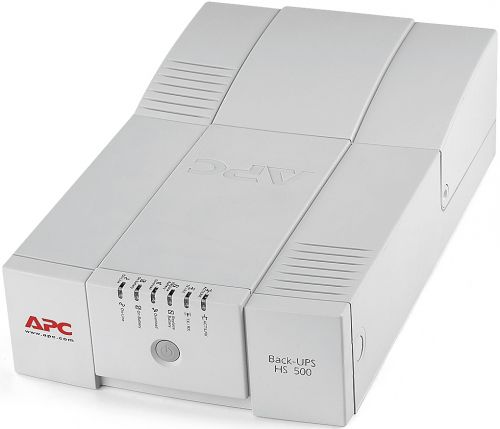

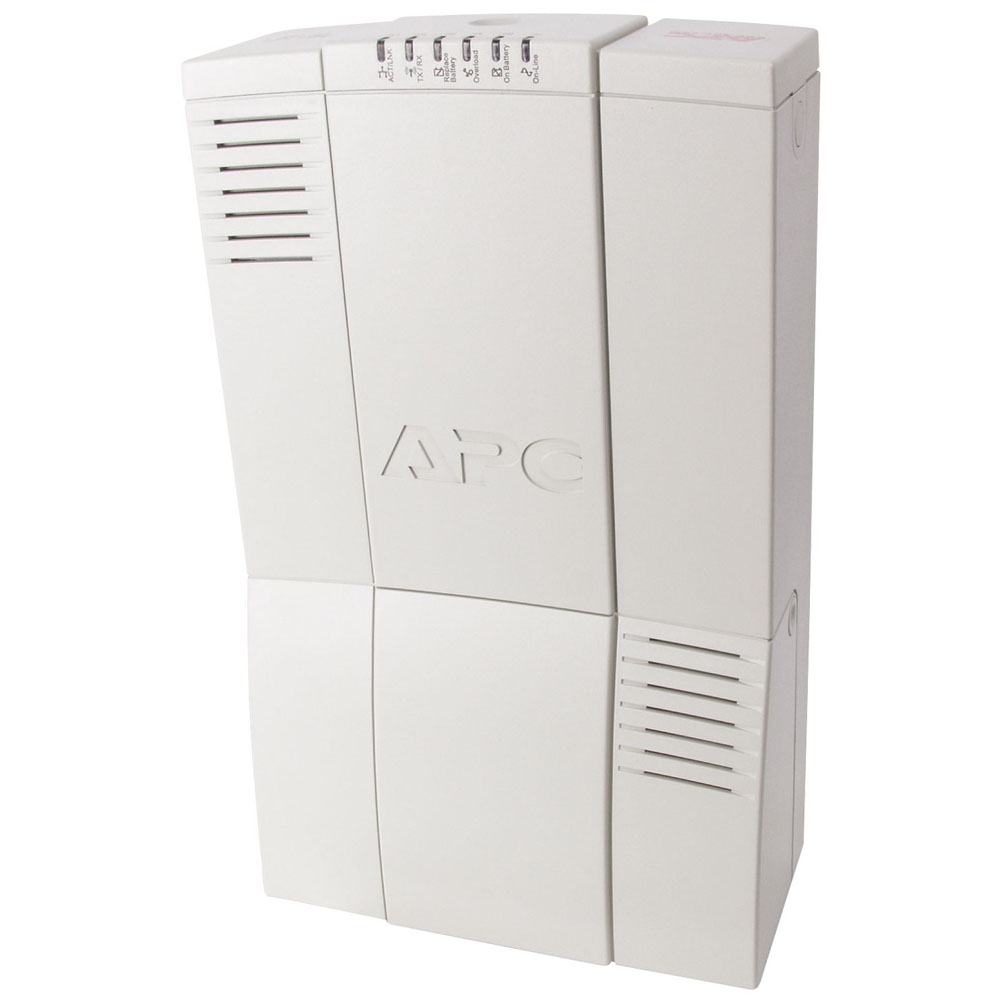

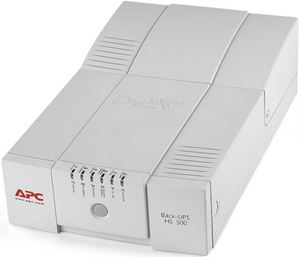

APC - BH500NET

APC Back-UPS,300 Watts /500 VA,Input 230V /Output 230V
Manufacturer: APC
Call for pricing

Output

Output Power Capacity
300 Watts / 500 VA
Max Configurable Power
300 Watts / 500 VA
Nominal Output Voltage
230V
Output Frequency (sync to mains)
47 - 63 Hz
Topology
Standby
Waveform Type
Stepped approximation to a sinewave

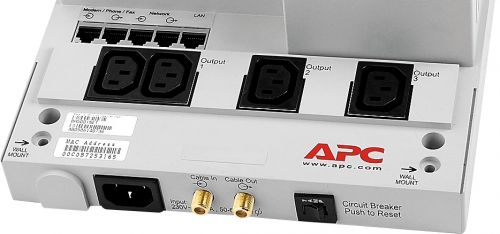

Output Connections
(4) IEC 320 C13 (Battery Backup)IEC 320 C13
(2) IEC Jumpers (Battery Backup)

Input

Nominal Input Voltage
230V
Input Frequency
47 - 63 Hz
Input Connections
IEC-320 C14
Cord Length
2.44 meters
Maximum Input Current
4A
Input Breaker Capacity
4  A

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
8 hour(s)
Replacement Battery
RBC™ Quantity
1

Communications & Management
Control panel
LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault, Network link status LED
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating
600 Joules
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)

Physical

Maximum Height
372.00 mm
Maximum Width
225.00 mm
Maximum Depth
105.00 mm
Net Weight
7.42 KG
Shipping Weight
8.41 KG
Shipping Height
470.00 mm
Shipping Width
305.00 mm
Shipping Depth
165.00 mm
Master Carton Units
1.00
Master Carton Dimensions (Length x Width x Height)
18.75 inches
Master Carton Weight
37.05 lbs.
Color
Beige
SCC Codes
1073130420641 2
Units per Pallet
48.00

Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
5 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
40.00 dBA

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
User Manual
Type
Size

PDF
1698KB


Unpacking; Installation; Electrical Connection; Configuration; Integration with other Products; Operation; Technical Specifications; Troubleshooting; Warranty and Service
PDF
191KB


This is the APC International Safety Guide in the following languages: English French Spanish Portuguese German Italian Swedish Norwegian Turkish Hungarian Polish Czech Russian Korean Thai Dutch & Indonesian.
PDF
35KB


Warranty Card for Australia-specific Back-UPS, Back-UPS Pro and SurgeArrest skus to meet Australian Consumer Law
Agency Approval
Type
Size

PDF
86KB


EN 62040-2:2006; IEC 61000-3-2:2005+A1:2008+A2:2009; IEC 61000-3-3:2008: IEC 61000-4-2:2008; IEC 61000-4-3:2006+A1:2007+A2:2010; IEC 61000-4-4:2004+A1:2010; IEC 61000-4-5:2005; IEC 61000-4-6:2008; IEC 61000-4-8:2009; IEC 61000-2-2:2002
PDF
474KB


GS per EN 62040-1:2008
PDF
0KB


Declaration of Conformity for Back-UPS BE, BH, BK
PDF
160KB


CB per IEC 62040-1 ed.1
Environmental Profile
Type
Size

PDF
463KB


Product Environmental Profile 1 for the Back-UPS Product Range
PDF
407KB


End of Life Instruction (EoLI) for the Back-UPS Product Range
