APC - BR550GI

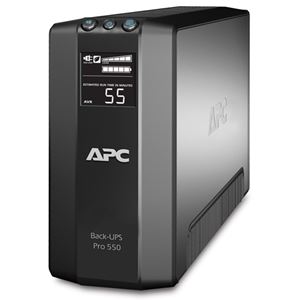

Picture of APC - BR550GI
APC Back-UPS Pro,330 Watts /550 VA,Input 230V /Output 230V, Interface Port Optional Simple Signalling RS232 cable, USB
Manufacturer: APC
Be the first to review this product
Call for pricing

Output

Output Power Capacity
330 Watts / 550 VA
Max Configurable Power
330 Watts / 550 VA
Nominal Output Voltage
230V
Efficiency at Full Load
77.0%
Output Frequency (sync to mains)
50 Hz
Topology
Line Interactive
Waveform Type
Stepped approximation to a sinewave

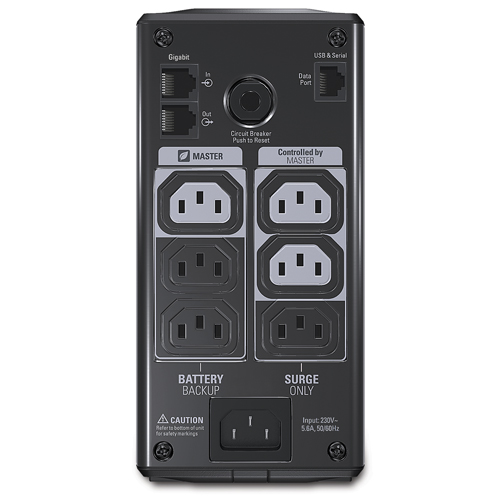

Output Connections
(3) IEC 320 C13 (Battery Backup)IEC 320 C13
(3) IEC 320 C13 (Surge Protection)IEC 320 C13
(2) IEC Jumpers (Battery Backup)
Efficiency at Half Load
84.0%

Input

Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
176 - 282V
Input voltage adjustable range for mains operation
155 - 290V
Maximum Input Current
6A
Input Breaker Capacity
7  A

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
12 hour(s)
Replacement Battery
APCRBC110
RBC™ Quantity
1
Interface Port(s)
Optional Simple Signalling RS232 cable, USB

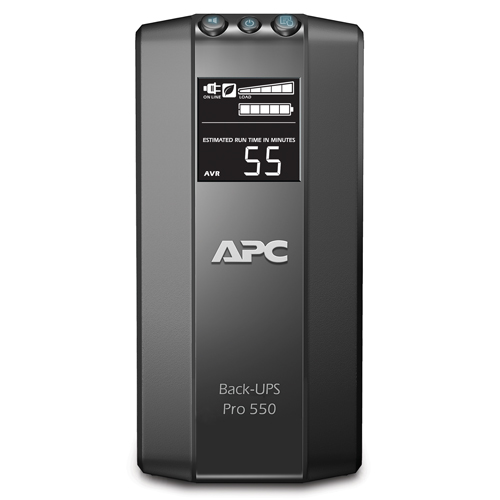

Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating
420 Joules
Filtering
Full time multi-pole noise filtering :10% of IEEE surge let-thgouh : zero clamping response time: instantaneous
Data Line Protection
Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)

Physical

Maximum Height
190.00 mm
Maximum Width
91.00 mm
Maximum Depth
310.00 mm
Net Weight
6.53 KG
Shipping Weight
7.71 KG
Shipping Height
252.00 mm
Shipping Width
138.00 mm
Shipping Depth
442.00 mm
Master Carton Units
2.00
Master Carton Weight
15.94 KG
Color
Black
SCC Codes
1073130426688 1
Units per Pallet
48.00

Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-3000 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-15000 meters
Audible noise at 1 meter from surface of unit
45.00 dBA

Conformance

Regulatory Approvals
A-tick, C-tick, CE, GOST, GS Mark
Standard Warranty
2 years repair or replace, 3 years repair or replace for European Union countries

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
User Manual
Type
Size
Back-UPS RS 550GI Installation and Operation
PDF
202KB


Installation and Operation sheet for Back-UPS RS 550GI
Warranty for Australian Consumer Law
PDF
35KB


Warranty Card for Australia-specific Back-UPS, Back-UPS Pro and SurgeArrest skus to meet Australian Consumer Law
Back-UPS RS Quick Installation
PDF
146KB


Quick Installation Sheet for the Back-UPS RS - BR550GI
Quick Sales Reference Sheet
Type
Size
Back-UPS Pro 230V 550VA - Product Cheat Sheet for BR550GI
SRC
1071KB


Quick reference guide for end user & partners to highlight the main features & benefits and technical specifications of the new 230V Back-UPS RS 550VA (# BR550GI)
Back-UPS Pro 230V 550VA - Product Cheat Sheet for BR550GI
PDF
285KB


Quick reference guide for end user & partners to highlight the main features & benefits and technical specifications of the new 230V Back-UPS RS 550VA (# BR550GI)
Agency Approval
Type
Size
Back UPS RS LCD 550 Master Control EMC Certification
PDF
189KB


EN 62040-2:2006; CISPR 22:2006; IEC 61000-3-2:2006; IEC 61000-2-2:2002; IEC 61000-4-2:1995+A1:1998+A2:2001; IEC 61000-4-3:2006; IEC 61000-4-4:2004; IEC 61000-4-5:2006; IEC 61000-4-6:2007; IEC 61000-4-8:1993+A1:2001;
Back UPS RS LCD 550 Master Control CB Certification
PDF
662KB


CB certification showing compliance to IEC 62040-1-1
Uninterruptible Power Supply Back-UPS Pro
PDF
0KB


Declaration of Conformity for Back-UPS Pro
Environmental Profile
Type
Size

EoLi - Back-UPS Profile 2
PDF
310KB


End of Life Instruction (EoLI) for the Power Saving Back-UPS Product Range
ePEP - Product Environmental Profile 2 for Back-UPS
PDF
382KB


Product Environmental Profile 2 for the Back-UPS Product Range
Brochure
Type
Size

Back-UPS BR500GI Specification Sheet
PDF
84KB


Two page brochure with top level features, benefits and specs
BR550GI Spec Sheet
PDF
76KB


Two page brochure with top level features, benefits and specs
Back-UPS Pro Family Specification Sheet (230 volt/IEC-320 units)
PDF
397KB


Four page brochure with top level features, benefits and specs
