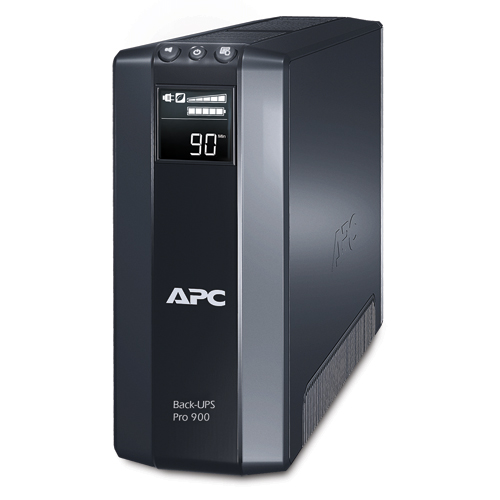

APC-BR900GI

APC Back-UPS Pro,540 Watts /900 VA,Input 230V /Output 230V, Interface Port Optional Simple Signalling RS232 cable, USB
Manufacturer: APC
Call for pricing

Output

Output Power Capacity
540 Watts / 900 VA
Max Configurable Power
540 Watts / 900 VA
Nominal Output Voltage
230V
Efficiency at Full Load
98.6%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Crest Factor
3 : 1
Topology
Line Interactive
Waveform Type
Stepped approximation to a sinewave

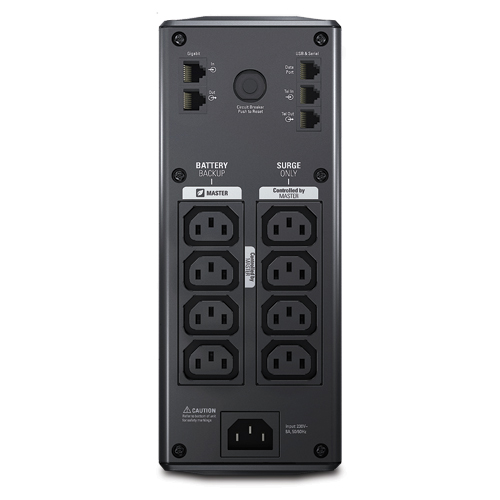

Output Connections
(4) IEC 320 C13 (Battery Backup)IEC 320 C13
(4) IEC 320 C13 (Surge Protection)IEC 320 C13
(2) IEC Jumpers (Battery Backup)
Efficiency at Half Load
97.6%
Bypass
Built-in Bypass

Input

Nominal Input Voltage
230V
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Input voltage range for main operations
176 - 294V
Input voltage adjustable range for mains operation
156 - 300V
Maximum Input Current
8A
Input Breaker Capacity
10  A

Batteries & Runtime

Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time
8 hour(s)
Replacement Battery
RBC™ Quantity
1

Communications & Management

Interface Port(s)
Optional Simple Signalling RS232 cable, USB
Control panel
Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating
613 Joules
Filtering
Full time multi-pole noise filtering :10% of IEEE surge let-thgouh : zero clamping response time: instantaneous
Data Line Protection
Analog phone line for phone/fax/modem/DSL (RJ-11 connector), Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector)

Physical

Maximum Height
250.00 mm
Maximum Width
100.00 mm
Maximum Depth
382.00 mm
Net Weight
10.72 KG
Shipping Weight
11.70 KG
Shipping Height
337.00 mm
Shipping Width
225.00 mm
Shipping Depth
487.00 mm
Master Carton Units
1.00
Color
Black
SCC Codes
1073130427959 1
Units per Pallet
30.00
Pallet Dimensions
46 inches
Pallet Weight
393.28 KG

Environmental

Operating Environment
0 - 40 °C
Operating Relative Humidity
0 - 95%
Operating Elevation
0-2952.6 meters
Storage Temperature
-15 - 45 °C
Storage Relative Humidity
0 - 95%
Storage Elevation
0-14763.6 meters
Audible noise at 1 meter from surface of unit
45.00 dBA

Conformance

Regulatory Approvals
A-tick, C-tick, CE, GS Mark
Standard Warranty
2 years repair or replace, 3 years repair or replace for European Union countries

Sustainable Offer Status

RoHS
Compliant
REACH
REACH: Contains No SVHCs
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
User Manual
Type
Size
PDF
511KB


Installation and Operation for Back-UPS Pro BR900GI
PDF
312KB


Installation and Operation for the Back-UPS Pro BR900GI
PDF
35KB


Warranty Card for Australia-specific Back-UPS, Back-UPS Pro and SurgeArrest skus to meet Australian Consumer Law
Agency Approval
Type
Size
PDF
642KB


EN 62040-2:2006; CISPR 22:2006; IEC 61000-3-2:2006; IEC 61000-2-2:2002; IEC 61000-4-2:1995; IEC 61000-4-3:2006; IEC 61000-4-4:2004; IEC 61000-4-6:2007; IEC 61000-4-8:1993
PDF
0KB


Declaration of Conformity for Back-UPS Pro
Environmental Profile
Type
Size

PDF
382KB


Product Environmental Profile 2 for the Back-UPS Product Range
PDF
310KB


End of Life Instruction (EoLI) for the Power Saving Back-UPS Product Range
Brochure
Type
Size

PDF
116KB


Two page brochure with top level features, benefits and specs
PDF
397KB


Four page brochure with top level features, benefits and specs
PDF
124KB


Two page brochure with top level features, benefits and specs
