BE325-JP | APC

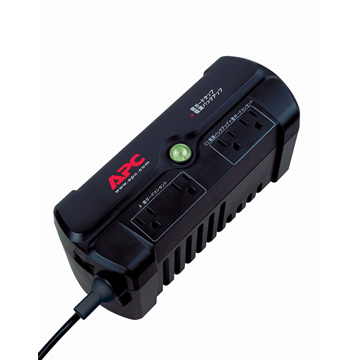

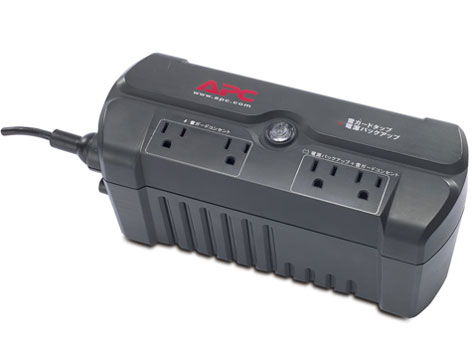

APC ES 325VA Battery Backup and Surge Protector, 100V
Manufacturer: APC
Call for pricing
Model NameAPC ES 325VA Battery Backup and Surge Protector, 100V
IncludesUser Guide in Japanese
Standard Lead TimeUsually in Stock
Product DistributionJapan
Output Power Capacity185 Watts / 325 VA
Max Configurable Power (Watts)185 Watts / 325 VA
Nominal Output Voltage100V
Output Frequency (sync to mains)47 - 63 Hz
Crest Factor--
Waveform TypeStepped approximation to a sinewave
Output Connections(2) NEMA 5-15R (Battery Backup),(2) NEMA 5-15R (Surge Protection)
Nominal Input Voltage100V
Input Frequency50/60 Hz
Input ConnectionsNEMA 5-15P
Cord Length1.83 meters
Input voltage range for main operations87 - 113
Batteries & Runtime
Battery TypeMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time24
Replacement BatteryRBC47
RBC™ Quantity1
Communications & Management
Audible AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating800
FilteringFull time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Data Line ProtectionRJ-11 Modem/Fax protection (two wire single line)
Maximum Height117 mm
Maximum Width104 mm
Maximum Depth255 mm
Net Weight3.68 kg
Shipping Weight3.82 kg
Shipping Height381 mm
Shipping Width184 mm
Shipping Depth127 mm
Master Carton Units4.0
Master Carton Weight15.41 kg
Units per Pallet160.0
Operating Environment0 - 40 °C
Operating Relative Humidity0 - 95
Operating Elevation0-3000 meters
Storage Temperature-15 - 45 °C
Storage Relative Humidity0 - 95
Storage Elevation0-15000 meters
Audible noise at 1 meter from surface of unit45.000
Regulatory ApprovalsTUV,TUV-C,VCCI
Standard Warranty2 years repair or replace
Sustainable Offer Status
