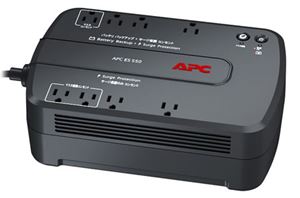

Purchase Overview | Model Name | APC ES 550VA Battery Backup, 100V
| | Includes | CD with software,Telephone Cable,USB cable,User Guide in Japanese
| | Standard Lead Time | Usually in Stock
| | Product Distribution | Japan
|
Output | Output Power Capacity | 330 Watts / 550 VA
| | Max Configurable Power (Watts) | 330 Watts / 550 VA
| | Nominal Output Voltage | 100V
| | Waveform Type | Stepped approximation to a sinewave
| | Output Connections | (4) NEMA 5-15R (Battery Backup),(4) NEMA 5-15R (Surge Protection)
|
Input | Nominal Input Voltage | 100V
| | Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing)
| | Input Connections | NEMA 5-15P
| | Cord Length | 1.52 meters
| | Maximum Input Current | 12
| | Input Breaker Capacity | 15
|
Batteries & Runtime | Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
| | Included Battery Modules | 1
| | Typical recharge time | 24
| | Replacement Battery | APCRBC122J
| | RBC™ Quantity | 1
|
Communications & Management | Interface Port(s) | Optional Simple Signalling RS232 cable,USB
| | Control panel | LED status display with On Line : On Battery : Replace Battery and Building Wiring Fault
| | Audible Alarm | Alarm when on battery : distinctive low battery alarm
|
Surge Protection and Filtering | Surge energy rating | 680
| | Data Line Protection | Analog phone line for phone/fax/modem/DSL (RJ-11 connector)
|
Physical | Maximum Height | 88 mm
| | Maximum Width | 180 mm
| | Maximum Depth | 282 mm
| | Net Weight | 5.4 kg
| | Shipping Weight | 6.4 kg
| | Shipping Height | 135 mm
| | Shipping Width | 242 mm
| | Shipping Depth | 400 mm
| | Master Carton Units | 2.0
| | Master Carton Weight | 13.8 kg
| | Color | Black
| | Units per Pallet | 100.0
|
Environmental | Operating Environment | 0 - 40 °C
| | Operating Relative Humidity | 0 - 95
| | Operating Elevation | 0-999.9 meters
| | Storage Temperature | -15 - 40 °C
| | Storage Relative Humidity | 0 - 95
| | Storage Elevation | 0-15000 meters
| | Audible noise at 1 meter from surface of unit | 45.000
|
Conformance | Regulatory Approvals | TUV,VCCI Class B
| | Standard Warranty | 2 years (Japan only)
| | Equipment protection policy | --
|
Sustainable Offer Status | RoHS | Compliant
| | REACH | REACH: Contains No SVHCs
|
|
