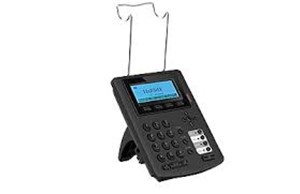

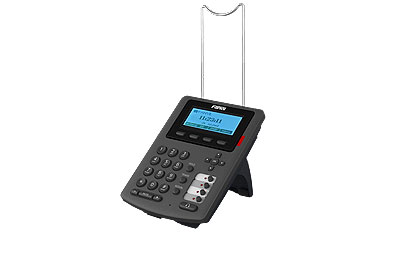

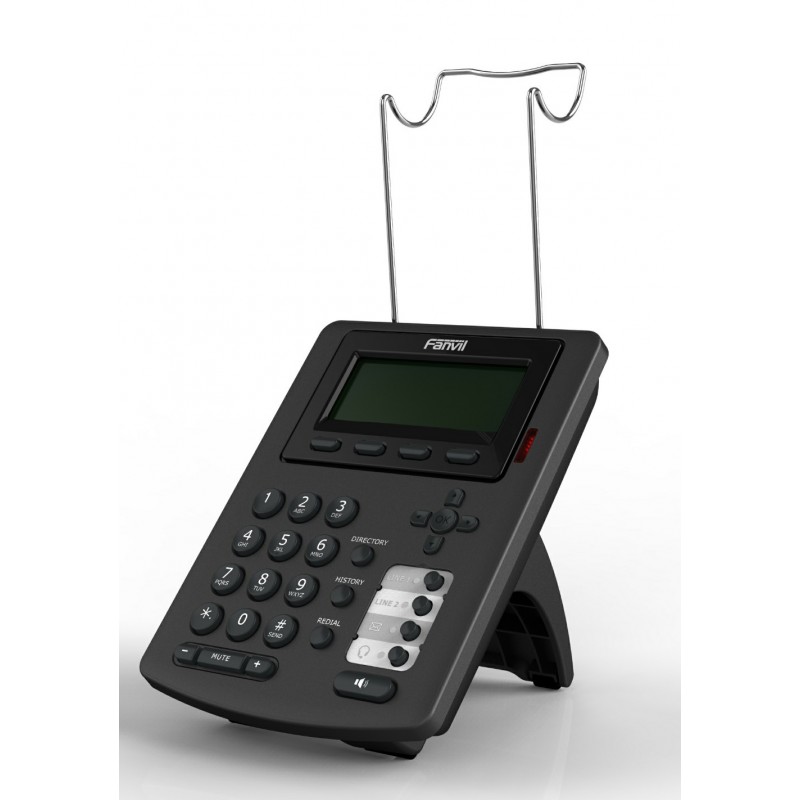

C01 | Fanvil | IP Phone

The C01 features the Broadcom professional IP chipset, support 3 SIP Lines. It supports SIP 2.0 and multiple road call waiting in line. It also supports voice gain setting, VAD, CNG and 4 DSS Keys. It also has a Multilanguage ability. POE is optional.
Manufacturer: Fanvil Smart Voip
Call for pricing

Main Features


Comparison List

Main FeaturesTo the top
 Support 2.0 and correlative RFCs
 Support IAX2
 Support 3 SIP lines
 HD voice
 3-way conference

 Support SRTP
 Supports BLF
 128×48 FSTN graphic LCD

SpecificationTo the top
 vxworks OS
 Supports SIP 2.0 (RFC3261) and correlative
 SIP supports 3 SIP servers, and backup SIP
    proxy servers.
 Support IAX2,iax2 line call
 SIP support SIP domain, SIPauthentication
    (none, basic, MD5),DNS name of server,
    Peer to Peer/ IP Call
 Supports RJ-9/3.5mm headset

 Display Resolution 128x48

Feature Keys
 Large dot matrix LCD display and softkeys
    make user easier to use
 Soft keys programmable; function keys

Audio Features
 HD voice: HD codec
 Codec:G.711A/u, G.7231 high/low,G.729a/b,
 DTMF: In-band, Out-of-band(RFC 2833) and
 Voice Activity Detection (VAD)
 Comfort Noise Generation (CNG)
 Echo cancellation: Support G.168

Advanced Features
 Call forwarding
 Call transfer (blind/attended/alert)
 Call holding
 Call waiting
 Call conference
 BLF List
 Capable of 10 way conversation
 Join call
 Call completion
 Hot desk function
 4 DSS key
 Auto Redial / unredial
 Support multi line and predial
 Support messaging and MWI
 Flexible dial plan
 Barring function for outgoing calls
 Do not disturb
 Auto answer (headset)
 Caller ID display
 CLIR (rejects anonymous calls)
 CLIP (to make an anonymous call)
 Dial without registration
 Supports call logs with missed calls/
    incoming calls/outgoing calls, Each support
    300 records.
 Support Phonebook 500 records
 Support SMS and Speed Dial
 Call rejection
 Black List
 Intercom/Intercom barge
 Password dial
 Direct IP call without SIP proxy
 Support action URL/active URI
 Voice codec setting for each SIP line
 Hands-free ringing choice
 Support XML phonebook/browser
 Support click to dial via web phone Book
    Network/ Security Features
 WAN/LAN: 10/100M Ethernet ports,
 supports Route and Bridge mode.

 Support bridge working as hub
 Support PPPoE for xDSL and
 Support VLAN(voice vlan/data vlan)
 Support 802.1x
 Support basic NAT and NAPT
 NAT transverse:support STUN client
 Support DHCP client on WAN
 Support DHCP server on LAN
 Support main DNS and secondary DNS server.
 Support DNS Relay, SNTP Client,
 Firewall, openVPN
 Support VPN (L2TP) and DMZ
 Network tools in telnet server: including ping,
    trace route, telnet client

Maintenance & Management
 Web ,telnet and keypad management
 Management with different account right
 Upgrade firmware through POST mode and
 Support dhcp option66 and custom option
    auto provisioning
 Telnet remote management/upload/download
    setting file
 Safe mode provide reliability
 Support Auto Provisioning to upgrade
    firmware or configuration file with HTTPS
 Support TR-069 and Syslog

Physical Features
 Adapter Input:100-240V
 Adapter Output:5V/1A
 WAN Port -10/100 Base-T RJ-45 for LAN
 LAN Port- 10/100 Base-T RJ-45 for PC
 Headset- RJ-9/3.5mm
 Power Consumption- Idle: 2.5W/Active: 2.8W
 Display Resolution: 128 x 48 pixels
 Operation Temperature 0~40?
 Relative Humidity 10 65%
 Main Chipset – Broadcom
 SDRAM – 16M
 Flash- 4M
 Weight- Phone:0.45kg
 Dimension: 258x183x60 mm
