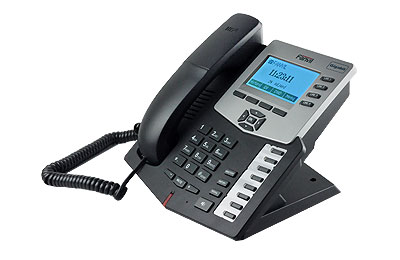

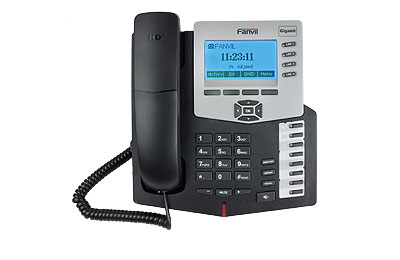

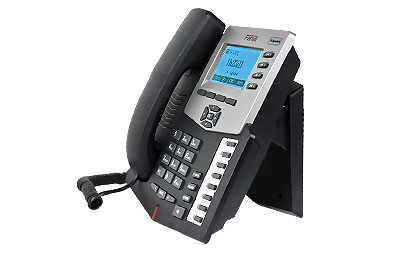

C66 | Fanvil | IP Phone

The Fanvil C66 is built with the Broadcom Gigabit IP Phone chip.
Manufacturer: Fanvil Smart Voip
Call for pricing

Main Features


Comparison List

Main FeaturesTo the top
 6 Lines Gigabit IP Phone
 Gige version
 SIP 2.0(RFC3261) and correlative RFCS
 IPv6(Future Release)
 HD voice

 Two interfaces 10/100/1000 BaseT with support
    for bridge or NAT
 BLF support(with Extension Module)
 8 DSS keys with dual-color LED indicatior
 128×64 FSTN LCD
 3 way-conference

SpecificationTo the top
 Linux OS
 Support SIP2.0 (RFC3261) and correlative
 SIP supports 6 SIP servers, and backup SIP
    proxy servers
 Support SIP UDP / TCP/ TLS
 SIP support SIP domain, SIP authentication
    (none, basic, MD5) , DNS name of server,
     Peer to Peer / IP Call Display
 Display Resolution: 128x64
 Support backlight Key Features
 Large dot matrix LCD display and soft keys
    make user easier to use
 Soft keys programmable
 Line keys programmable (each key have
    led indication)
 Function keys programmable (each key have
    dual-color led indication)
 Expansion board (up to connect 5 expansion
    boards, each board have 30 function keys,
    each key have 2-color led indication)
 Supports RJ-9 headset
 Multi languages displayed
 Gigabit Ethernet Audio Features
 HD voice: HD handset
 Codec: G.711A/u, G.7231 high/low, G.729AB,
    G.722, G.726-32, AMR, AMR-WB, iLBC
 DTMF: In-band, RFC 2833 and SIP INFO
 Full duplex hands- free speaker phone with
    acoustic echo cancellation
 Voice Activity Detection (VAD)
 Comfort Noise Generation (CNG)
 Background noise suppression
 Adaptive jitter buffers
 Packet loss concealment
 different country tones and Tone customized

Advanced Features
 Call forwarding (busy/ no answer/ always)
 Call transfer ( unattended/ attended/
    semi-attended )
 Call holding
 Call waiting
 3 way call conference
 Capable of 10 way conversation
 BLF list
 Join call
 Call pickup / Call Park
 Last Number Redial / Auto Redial
 Call back / Call completion
 Hot desking
 SIP messaging , MWI
 Flexible dial plan
 Barring function for outgoing calls
 Do not disturb
 Auto answer
 Caller ID display
 CLIR(rejects anonymous calls)
 CLIP(to make an anonymous call)
 Dial without registration
 Call logs with missed calls/ incoming calls/
    outgoing calls. Each support 300 records
 Phonebook 1000 records
 Speed Dial (abbreviated dialling)
 Call rejection
 Black List/ White List
 Intercom/Intercom barge
 Password dial, DTMF hidden
 Action URL/ active URI
 Voice codec setting for each SIP line
 LDAP, XML phonebook
 Web dial
 Keypad lock, Emergency call     Network/ Security Features
 WAN / LAN:10/100/1000M Ethernet ports,
 Bridge mode
 PPPoE for xDSL
 802.3af PoE
 VLAN(Voice VLAN/Data VLAN)
 NAT transverse :Support STUN client
 DHCP client on WAN
 Main DNS and secondary DNS server
 SNTP Client
 Web management access restricted
 ping, traceroute, tftp client

Maintenance & Management
 WEB ,telnet and LCD menu management
 Management with different account right
 Recover firmware and factory reset through
    POST mode
 Upgrade firmware  via HTTP, HTTPS, FTP, TFTP
 DHCP option66 and custom option for auto
 Auto Provisioning to upgrade configuration file
    with AES(256) encryption
 TR-069 and Syslog

Physical features
 Adapter Input: AC 100-240V
 Adapter Output: DC 5V/1A
 WAN Port -10/100/1000 BASE-T RJ-45 for LAN
 LAN Port-10/100/1000 BASE-T RJ-45 for PC
 Headset: RJ9
 Expansion: RJ45
 Power consumption: IDLE: 2.5W Active: 2.8W
 Display Resolution: 128x64 pixels
 Operation Temperature: 0?40?
 Relative Humidity: 10?65%
 Main Chipset : Broadcom
 Package Weight: 1.2kg
 Package Dimension: 290x260x60mm
