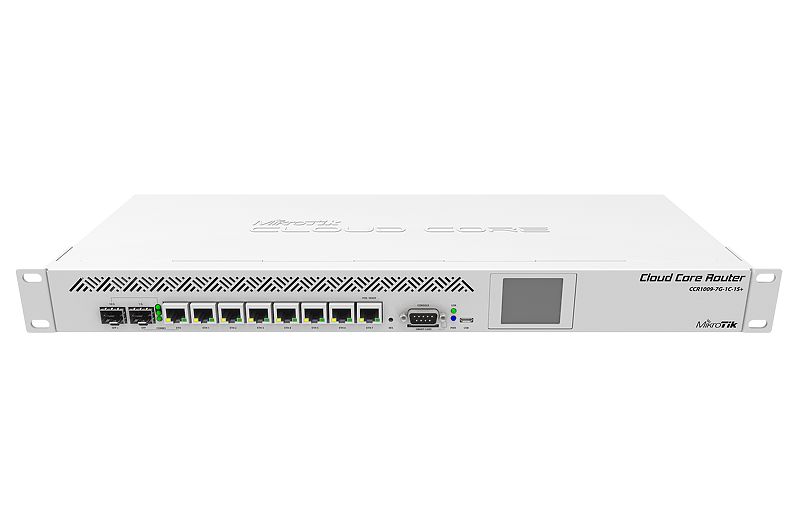

CCR1009-7G-1C-1S+ | RouterBoard | Mikrotik

1U rackmount, 7x Gigabit Ethernet, 1x Combo port (SFP or Gigabit Ethernet), 1xSFP+ cage, 9 cores x 1.2GHz CPU, 2GB RAM, LCD panel, Dual Power supplies, SmartCard slot, RouterOS L6
Call for pricing

The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.

Important changes

No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.

Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.

100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.

More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

Product specifications

Details
Product codeCCR1009-7G-1C-1S+
CPU nominal frequency1.2 GHz
CPU core count9
Size of RAM2 GB
10/100/1000 Ethernet ports7
Number of USB ports1
Power Jack3
PoE inYes
Supported input voltage15 V - 57 V
Voltage MonitorYes
PCB temperature monitorYes
CPU temperature monitorYes
Dimensions444x175x47mm
Operating SystemRouterOS
License level6
Current MonitorYes
CPUTLR4-00980CH-10CE-A3b
Max Power consumption34W
SFP+ ports1
USB Power ResetYes
USB slot typemicroUSB type AB
Serial portRS232
Storage typeNAND
Storage size128 MB
CPU Threads count9
BrochureOpen
Quick GuideOpen
RouterOS current releaseDownload
RouterBoot firmwareDownload
Block DiagramOpen
SFP compatibility listOpen
RouterOS software manualOpen
Declaration of conformityOpen (CE)
