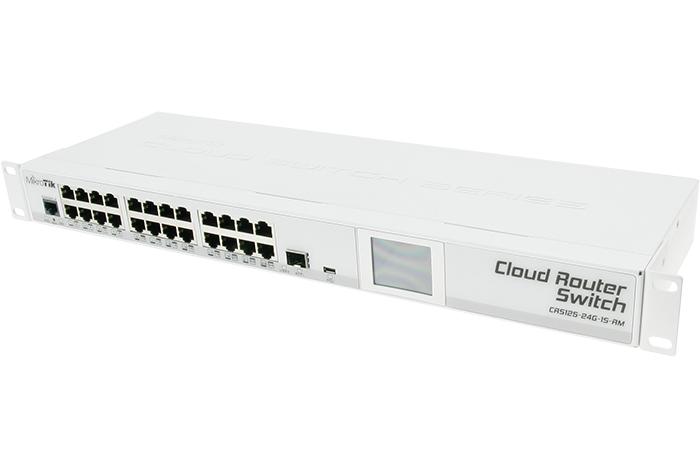

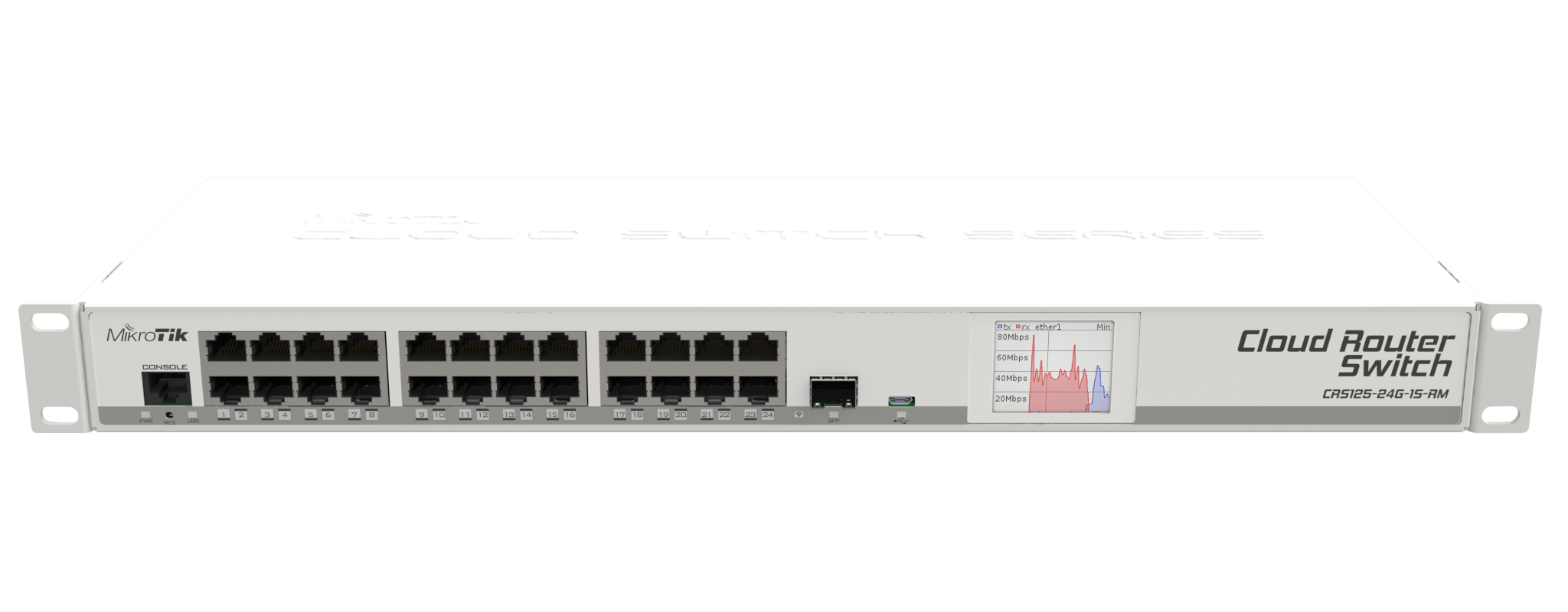

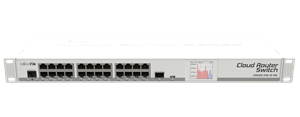

24x Gigabit Ethernet layer 3 Smart Switch, 1x SFP cage, LCD, 600MHz CPU, 128MB RAM, 1U rackmount, RouterOS L5
Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
Choose ports for Wire speed switching, or for routing purposes.
Perfect SOHO gateway router, switch, all in one box:
• Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet
• RouterOS gateway/firewall/VPN router with passive cooling
• up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)
Box includes: Cloud Router Switch, 1U rackmount enclosure, power supply
Product specifications
| Details |
|---|
| Product code | CRS125-24G-1S-RM |
| CPU nominal frequency | 600 MHz |
| SFP DDMI | Yes |
| CPU core count | 1 |
| Architecture | MIPS-BE |
| Size of RAM | 128 MB |
| 10/100 Ethernet ports | 0 |
| 10/100/1000 Ethernet ports | 24 |
| MiniPCI slots | 0 |
| MiniPCI-e slots | 0 |
| Number of USB ports | 1 |
| Power Jack | 1 |
| Supported input voltage | 8 V - 28 V |
| PoE out | No |
| PoE in | Yes |
| Voltage Monitor | Yes |
| CPU temperature monitor | No |
| PCB temperature monitor | Yes |
| Dimensions | 443x142x44mm |
| Operating System | RouterOS |
| Operating temperature range | -35C to +65C tested |
| License level | 5 |
| Antenna gain DBI | No |
| Current Monitor | No |
| CPU | AR9344-DC3A-R |
| Max Power consumption | 15W |
| SFP ports | 1 |
| SFP+ ports | 0 |
| USB slot type | microUSB type AB |
| Number of chains | 0 |
| Serial port | RJ45 |
