  2. DS-2CD2043G0-I | Network Camera | HIKVISION

DS-2CD2043G0-I | Network Camera | HIKVISION

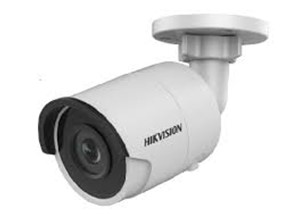

Picture of DS-2CD2043G0-I | Network Camera | HIKVISION
4 MP IR Fixed Bullet Network Camera
Manufacturer: HIKVISION
Be the first to review this product
Call for pricing
Camera
Image Sensor:1/3" Progressive Scan CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter time:1/3 s to 1/100,000 s
Slow shutter:Support
Lens:2.8 mm @ F1.6: horizontal FOV: 103°, vertical FOV: 58°, diagonal FOV: 123°
4 mm @F1.6: horizontal FOV: 83°, vertical FOV: 45°, diagonal FOV: 99°
6 mm @F1.6: horizontal FOV: 51°, vertical FOV: 29°, diagonal FOV: 58°
8 mm @F1.6: horizontal FOV: 39°, vertical FOV: 22°, diagonal FOV: 45°
Lens Mount:M12
Adjustment Range:Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& Night:IR cut filter with auto switch
Wide Dynamic Range:120 dB
Digital noise reduction:3D DNR
Focus:Fixed
Compression Standard
Video Compression:H.265+/H.265/H.264+/H.264/MJPEG
Video bit rate:256Kbps~16Mbps
Triple Streams:Yes
Max. Image Resolution:2688 × 1520
Frame Rate:50Hz:25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080)
Sub Stream:50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream:50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)
60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Image Enhancement:BLC/3D DNR/BLC
Image Settings:Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Target Cropping:No
ROI:1 fixed region for main stream and sub-stream
Day/Night Switch:Day/Night/Auto/Schedule
Network
Network Storage:microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger:Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP?, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General Function:One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy
mask, Watermark, IP address filtering
System Compatibility:ONVIF (Profile S, Profile G),ISAPI
Interface
Communication Interface:1 RJ45 10M / 100M Ethernet interface
On-board storage:Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button:Yes
Smart Feature-set
Behavior Analysis:Line crossing detection, intrusion detection
Line Crossing Detection:Cross a pre-defined virtual line
Intrusion Detection:Enter and loiter in a pre-defined virtual region
Recognition:Face Detection
General
Operating Conditions:-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply:12 VDC ± 25%, PoE (802.3af Class3)
Power Consumption:12 VDC, 0.5A, max. 6W
PoE (802.3af, 37V to 57V), 0.2A to 0.1A, max. 7.5W
Weather Proof:IP67
IR Range:Up to 30m
Dimensions:Camera: F 70 × 155.03 mm (F 2.8" × 6.1")
Package: 216 × 121 × 118 mm (8.5" × 4.8" × 4.7")
Weight:Camera: Approx. 420 g (0.9 lb.)
With Package: Approx. 700 g (1.5 lb.)
