  2. DS-7608NI-E1 | NVR | HIKVISION

DS-7608NI-E1 | NVR | HIKVISION

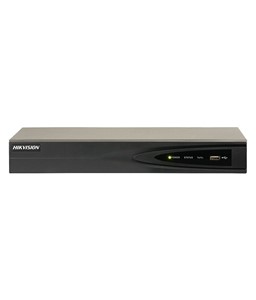

Picture of DS-7608NI-E1 | NVR | HIKVISION
Embedded 8CH NVR
Manufacturer: HIKVISION
Be the first to review this product
Call for pricing
Video/Audio Input
Two-way audio input:1-ch, RCA (2.0 Vp-p, 1kO)
IP video input:8-ch
Network
Remote connection:128
Incoming bandwidth:80Mbps
Outgoing bandwidth:80Mbps
Video/Audio Output
HDMI/VGA output:1-ch, resolution:
1920 × 1080P /60Hz, 1600 × 1200 /60Hz, 1280 × 1024 /60Hz, 1280 × 720 /60Hz,
1024 × 768 /60Hz
Recording Resolution:6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Frame Rate:Main stream: 50 fps (P) / 60 fps (N)
Sub-stream: 50 fps (P) / 60 fps (N)
Audio Output:1-ch, RCA (Linear, 1kO)
Synchronous Playback:8-ch
Decoding
Capability:5-ch@1080P
Live view / Playback:6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Hard Disk
SATA:1 SATA interface for 1 HDD
Capacity:Up to 4TB for each disk
External Interface
Network Interface:1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
USB Interface:1 × USB 2.0 and 1 × USB 3.0
Alarm In:4-ch(optional)
Alarm Out:1-ch(optional)
General
Power Supply:12V DC
Consumption(without hard disk and POE):= 10W
Working Temperature:-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:10 % ~ 90 %
Chassis:1U chassis
Dimensions:315 × 230 × 45 mm (12.4 × 9.0 × 1.8 inch)
Weight(without HDD):= 1 kg
