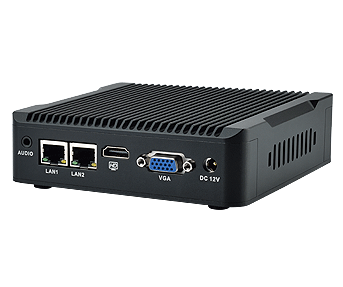

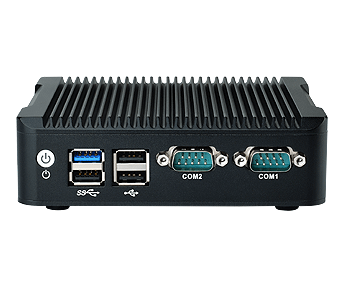

EBC-1122 Embedded Computer

Intel® Celeron® J1900, Onboard 4G RAM, 2 LAN/4 COM/4 USB/DVI/Line-out/9~24Vdc
Manufacturer: Darveen
Call for pricing
Features

~
 Intel® Celeron® Processor J1900 (2.0 GHz)
~ 2 x COM Ports ( RS-232)
~ 2 x GbE, 4 x USB , 1 x VGA, 1 x HDMI
~ 1 x 2.5" SATA HDD / SSD, 1 x mSATA
~ 1 x Mini PCIe
~ 12V DC Power Input

Parameters
System
ProcessorIntel® Celeron® Processor J1900 Quad-Core 2.0 GHz
Memory1 x DDR3L 1333 MHz SDRAM( up to 8GB)
GraphicIntel® Gen7 Intel Graphics with DX11*, OGL3.2
Operating SystemWindows 7/8, WS7E, WS8
Storage
Type1 x 2.5" SATA HDD / SSD, 1 x mSATA
RF Communication
WLAN802.11a/b/g/n/ac  (Optional)
BluetoothBluetooth 4.0  (Optional)
I/O Connectors
COM2 x RS-232
USB3 x USB 2.0
1 x USB3.0
LAN2 x Realtek® RTL8111E for GBE
Video1 x DVI-I
Expansion1 x full-size mini PCIe, 1 x half-size mini PCIe
Qualification
CertificationsCE, FCC Class A
Environmental
Operating Temp.-20 ~ 60?(SSD)
Storage Temp.-40 ~ 85?
Relative Humidity10 ~ 95%
Power Management
Power InputDC 12 V
Mechanical
HousingAluminum alloy
MountingWall-mount
Dimension (W x H x D)134 x 126 x 38 mm
Weight0.65kg
