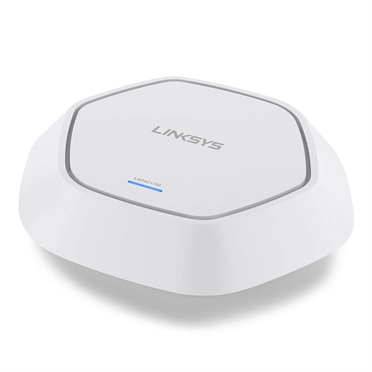

LINKSYS LAPN300 BUSINESS ACCESS POINT

LINKSYS LAPN300 BUSINESS ACCESS POINT WIRELESS WI-FI SINGLE BAND 2.4GHZ N300 WITH POE Employs Wi-Fi technology (802.11n) to provide a fast, powerful wireless network at a transfer rate of up to 300 Mbps.* Learn More Integrated Power over Ethernet Single Band (2.4GHz) capability and speeds up to 300 Mbps Industrial-strength Wi-Fi Protected Access (WPA, WPA2) security and data encryption IPv6 Support High Power PA for better Wi-Fi coverage

Manufacturer: Linksys

Be the first to review this product

Call for pricing

Quantity:

Description
Download

TECHNICAL SPECS

Model Name:
LAPN300
Network Standards:
- IEEE 802.11n
- IEEE 802.11g
- IEEE 802.11b
Radio Frequency Bands:
2.4 GHz

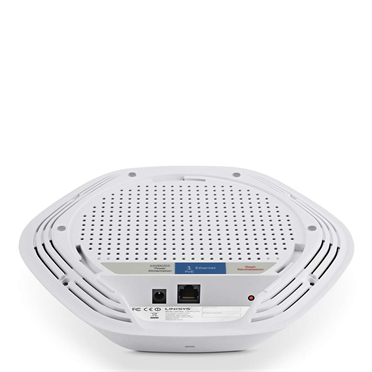

Ports:
1 Gigabit Ethernet Port
PoE:
- 802.3af
- 802.3at
LEDs:
One system LED
MIMO:
2x2
Antenna Type:
Internal
Antenna Gain:
1.8 dBi
RF Transmit Power:
- 802.11b @ 11 Mbps: 21 dBm
- 802.11g @ 54 Mbps: 20 dBm
- 802.11n @ HT20/HT40 MCS7/15: 19 dBm
Radio Frequency Channels:
2.412 to 2.462 GHz; 11 channels
Receiver Sensitivity:
- 802.11b @ 11 Mbps: -85 dBm
- 802.11g @ 54 Mbps: -70 dBm
- 802.11n @ HT20 MCS7/15: -65 dBm
- 802.11n @ HT40 MCS7/15: -62 dBm
Maximum Power Consumption:
12.5W
Dimensions (LxWxH):
243.08 x 236.98 x 43.69 mm (9.57 x 9.33 x 1.72 in)
Weight:
489.88 g (1.08 lb)
Operating Temperature:
0° to 40°C (32° to 104°F)
Storage Temperature:
-20° to 70°C (-4° to 158°F)
Operating Humidity:
10% to 85% (non-condensing)
Storage Humidity:
10% to 90% (non-condensing)

Mounting:
- Wall
- Ceiling
- Desktop
Number of VLANs Supported:
9, 1 management VLAN plus 8 VLANs for SSID
Security Lock:
Kensington Lock Slot
Access Control:
MAC-Based
Management Interface:
- HTTP
- HTTPS
- SNMP
Regulatory Compliance:
- FCC, CE, IC
- Class B, Wireless
Event Notification:
Local Log, Remote Syslog, and Email Alert
Network Diagnostics:
Log, Ping, Packet Capture
Warranty and Support:
Limited Lifetime
802.1X Supplicant:
Yes
External Power Amplifier:
Yes
Isolation of Wireless Clients in the Same SSID:
Yes
Reset Button:
Yes
Rogue AP Detection:
Yes
Scheduler:
Yes
SSID to VLAN Mapping:
Yes
Wireless Security:
- WEP
- WPA
- 802.1X RADIUS
WMM:
Yes
Workgroup Bridge:
Yes

DATASHEET
