Omni 15dBi | Antennas | UBNTik

UBNTik Omni Antenna For Bullet,Groove,Metal etc which is 15dBi and its frequency is 2.4Ghz.
Call for pricing

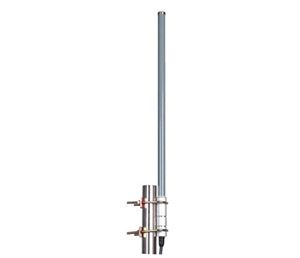

Omni Antenna LTQ-2425-15A, Antenna Gain 15dbi, Frequency 2.4, is a high Gain performance omnidirectional antenna designed for the 2.4 GHz band, and is well suited for multipoint applications where high gain and wide coverage is desired. Its diameter is F30mm.

? IP66 Waterproof Level

? UV Protected and Durable  Fiberglass Radome

 ? Heavy-duty Extruded Aluminum Bracket and Stainless U-Bolt

? RoHS Compliant

Electrical Specifications

 Model

LTQ-2425-15A

Frequency Range(MHz)

2400-2483

Gain(dBi)

15

VSWR

=1.5

Horizontal Beamwidth-°

360

Vertical Beamwidth-°

5

Polarization

Vertical

Impedance(O)

50

Maximum input power(W)

100

Connector

N Female

 Mechanical Specifications

 Antenna Dimension-mm

F30×1600

Weight-Kg

1.5

Radome Material

Fiberglass

Mounting Mast Diameter-mm

Ø40~Ø60

Operating temperature-?

 -40~60

Mounting Diagram
