RB1100AHx4 Dude Addition | RouterBoard | Mikrotik

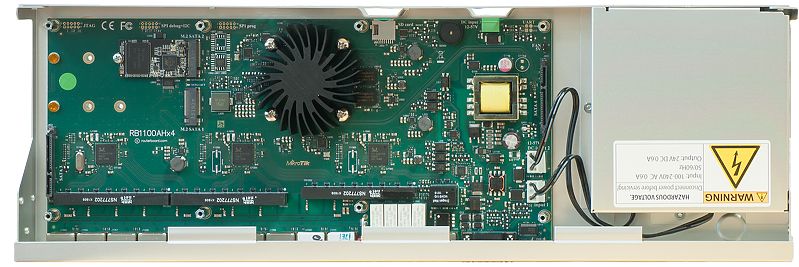

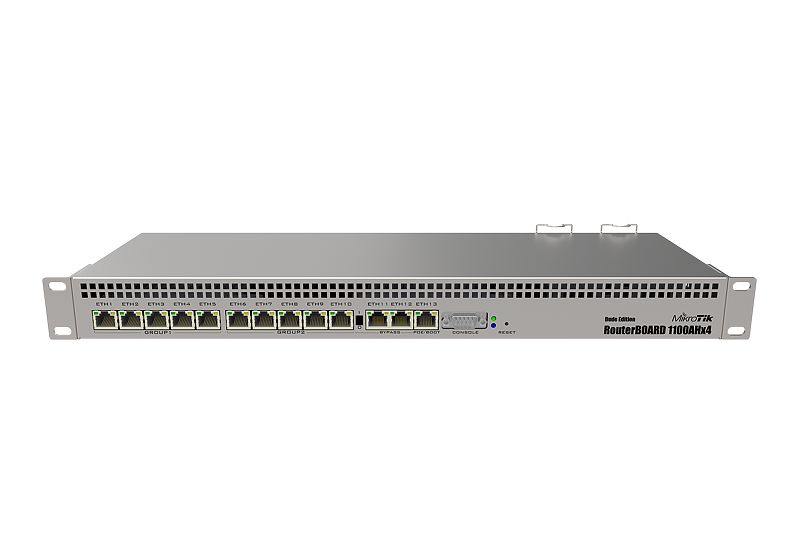

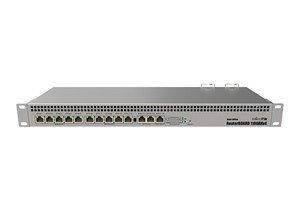

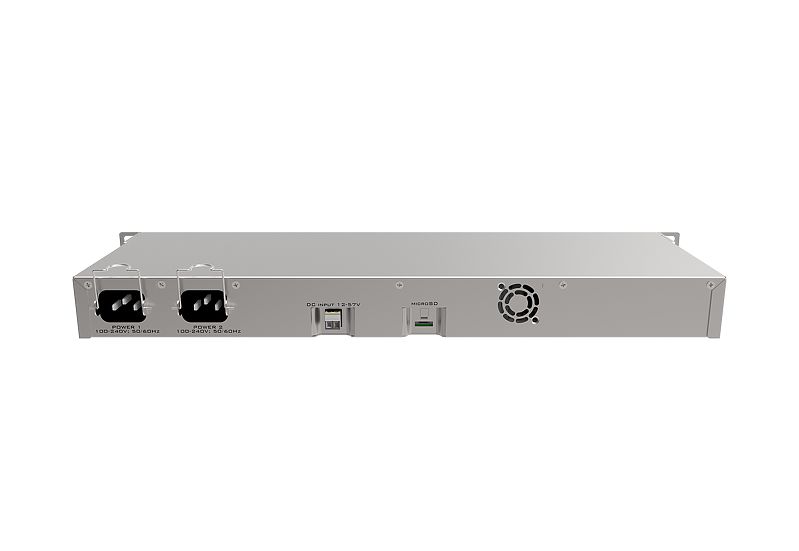

Picture of RB1100AHx4 Dude Addition | RouterBoard | Mikrotik

Powerful 1U rackmount router with 13x Gigabit Ethernet ports, 60GB M.2 drive for Dude database

Manufacturer: MikroTik

Be the first to review this product

Call for pricing

Quantity:

Description
Download

New RB1100AHx4 Dude Edition has Annapurna Alpine AL21400 CPU with four Cortex A15 cores clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbps. The device supports IPsec hardware acceleration and is faster at it than any previous RouterBOARD device (up to 2.2Gbps with AES128).

Unit comes with 1U rackmount case, 13x Gigabit Ethernet ports, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support). The RB1100AHx4 Dude edition features several high speed storage connectors (two SATA and two M.2) for using a Dude database, proxy cache or any other storage intensive feature. It includes a 60GB M.2 drive already installed.

General

Details
Product code	RB1100Dx4
CPU	AL21400-1400-A0-E-1AN-8-C
CPU core count	4
CPU nominal frequency	1.4 GHz
CPU Threads count	4
Dimensions	444 x 148 x 47 mm
License level	6
Operating System	RouterOS
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND

Powering

Details
Max Power consumption	25W
Number of DC inputs	2 (PoE-IN, 2-pin terminal)
PoE in	802.3af/at
PoE in input Voltage	20-57 V
2-pin terminal input Voltage	-48, 12-57 V
Number of AC inputs	2
AC input range	100-240 V

Ethernet

Details
10/100/1000 Ethernet ports	13

Peripherals

Details
Extended storage	60GB M.2 SSD included
M.2 slots	2
SATA ports	2x SATA3
Serial port	RS232

Other

Details
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes

BrochureOpen

Quick GuideOpen

RouterOS current releaseDownload

RouterBoot firmwareDownload

Block DiagramOpen

RouterOS software manualOpen

Declaration of conformityOpen (CE)
