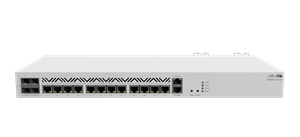

CCR2116-12G-4S+

Forget about CPU limitations in 10G setups with this powerful 16-core ARM CPU based CCR. Double the performance of our previous 36- core CCR, 6x faster BGP performance. Includes an M.2 PCIe slot.
Call for pricing

We wanted to see the full potential of the good, old, reliable 10G networking combined with a modern CPU. CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother – the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.

But with 16 cores running at 2 GHz, this CCR eats the other one for breakfast. For example, we see at least a 15% increase in single-core performance. And that is the most important aspect when it comes to heavy operations based on per-connection processing. Like queues, for example. CCR2116-12G-4S+ sets a new standard of single-core performance in the whole CCR product family! And it supports Layer 3 Hardware Offloading!

Obviously, you need the right connectivity to harness this power. There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then we have Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.

Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If we look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more.

If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations..This is the right device for you. Combination of raw power and utility with the reliable 10G networking. And yes, like with any ISP-level device, we’ve included a dual-redundant power supply. So you have one less thing to worry about.

CCR2116-12G-4S+: technology tested by time, built for the future.

  Send purchase questions

Specifications

Details
Product codeCCR2116-12G-4S+
ArchitectureARM 64bit
CPUAL73400
CPU core count16
CPU nominal frequency2000 MHz
Switch chip model98DX3255
Dimensions443 x 199 x 44 mm
RouterOS license6
Operating SystemRouterOS v7
Size of RAM16 GB
Storage size128 MB
Storage typeNAND
MTBFApproximately 200'000 hours at 25C
Tested ambient temperature-20°C to 60°C
IPsec hardware accelerationYes

Powering

Details
Number of AC inputs2
AC input range100-240
Max power consumption83 W
Max power consumption without attachments60 W
Cooling type4 fans

Ethernet

Details
10/100/1000 Ethernet ports13

Fiber

Details
SFP+ ports4

Peripherals

Details
Serial console portRJ45
Number of M.2 slots1

Other

Details
CPU temperature monitorYes
PCB temperature monitorYes
Mode buttonYes

Certification & Approvals

Details
CertificationCE, EAC, ROHS

Included parts
